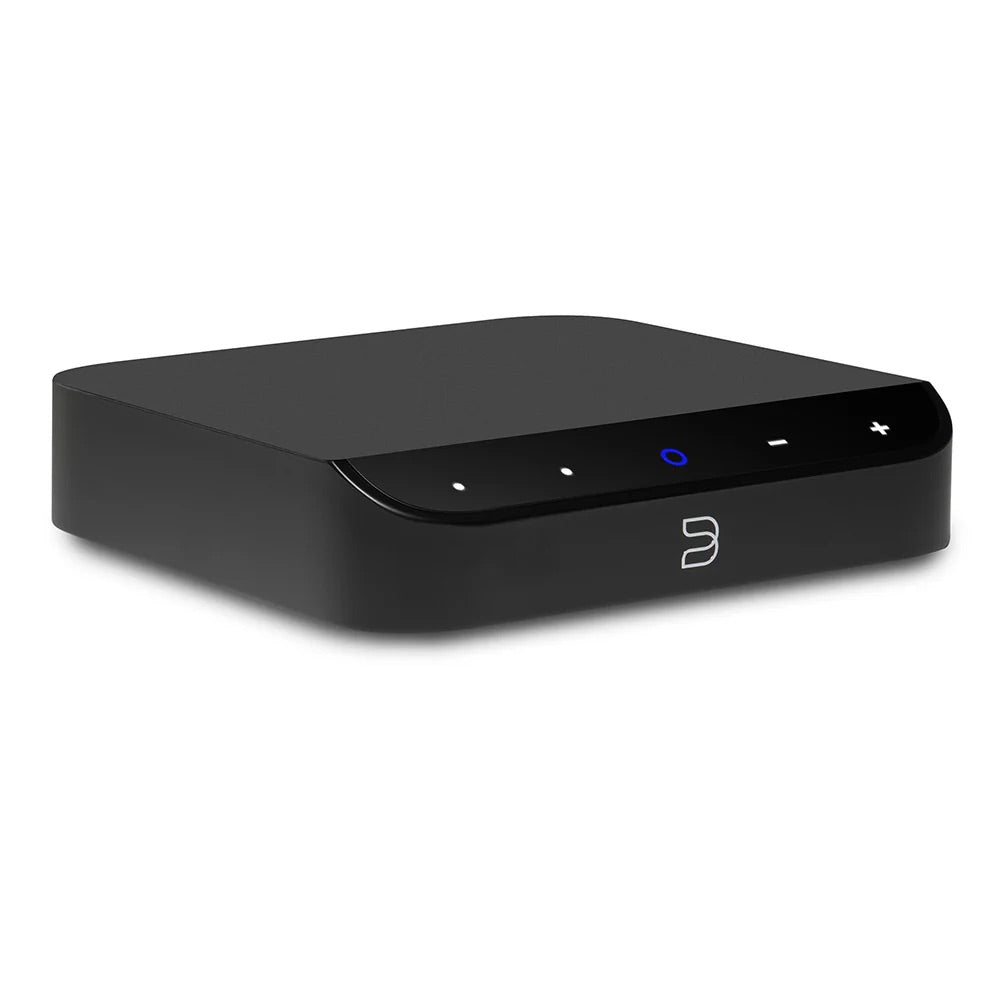

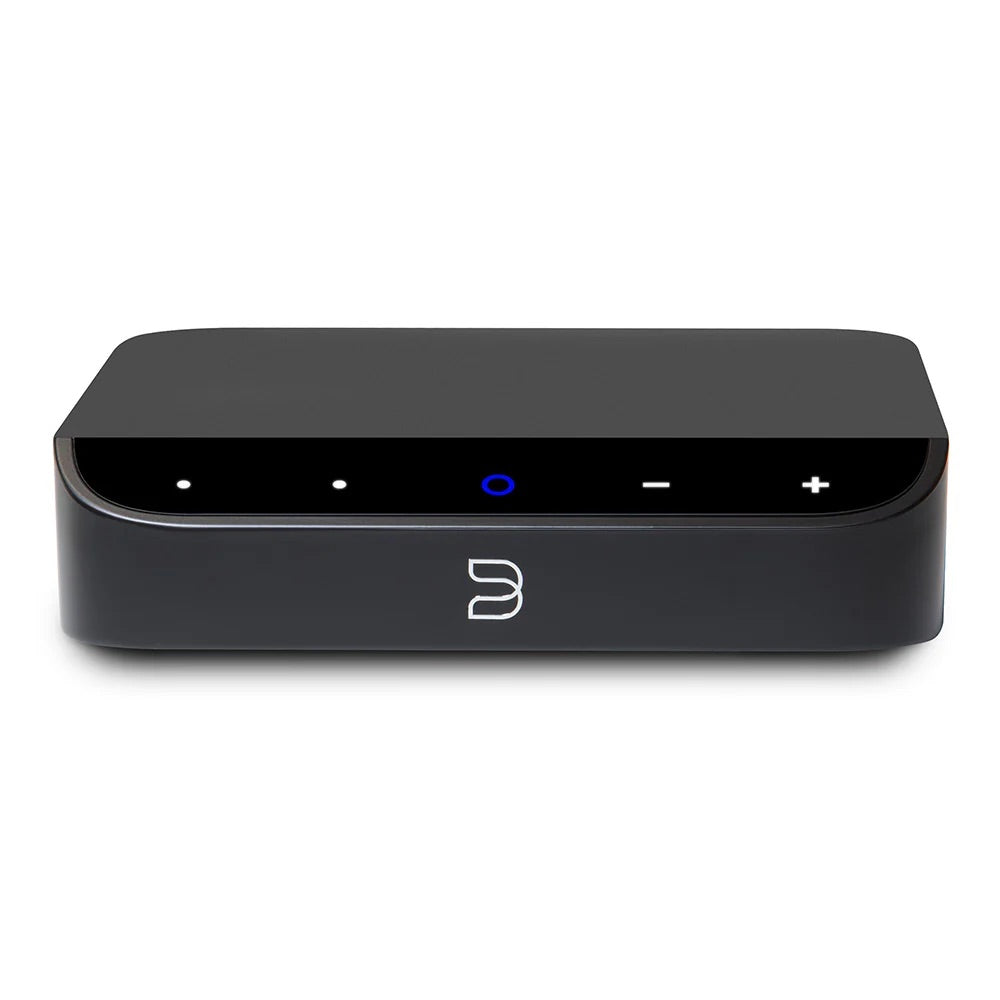

Bluesound Node Nano

Wireless Music Streamer

Upgrade your stereo system effortlessly with the NODE NANO. Just connect to Wi-Fi and start streaming music, radio stations. Experience audiophile-grade sound with the industry-leading ESS SABRE® DAC, supporting audio up to 24-bit/192kHz for exceptional clarity.

ESS ES9039Q2M SABRE® DAC

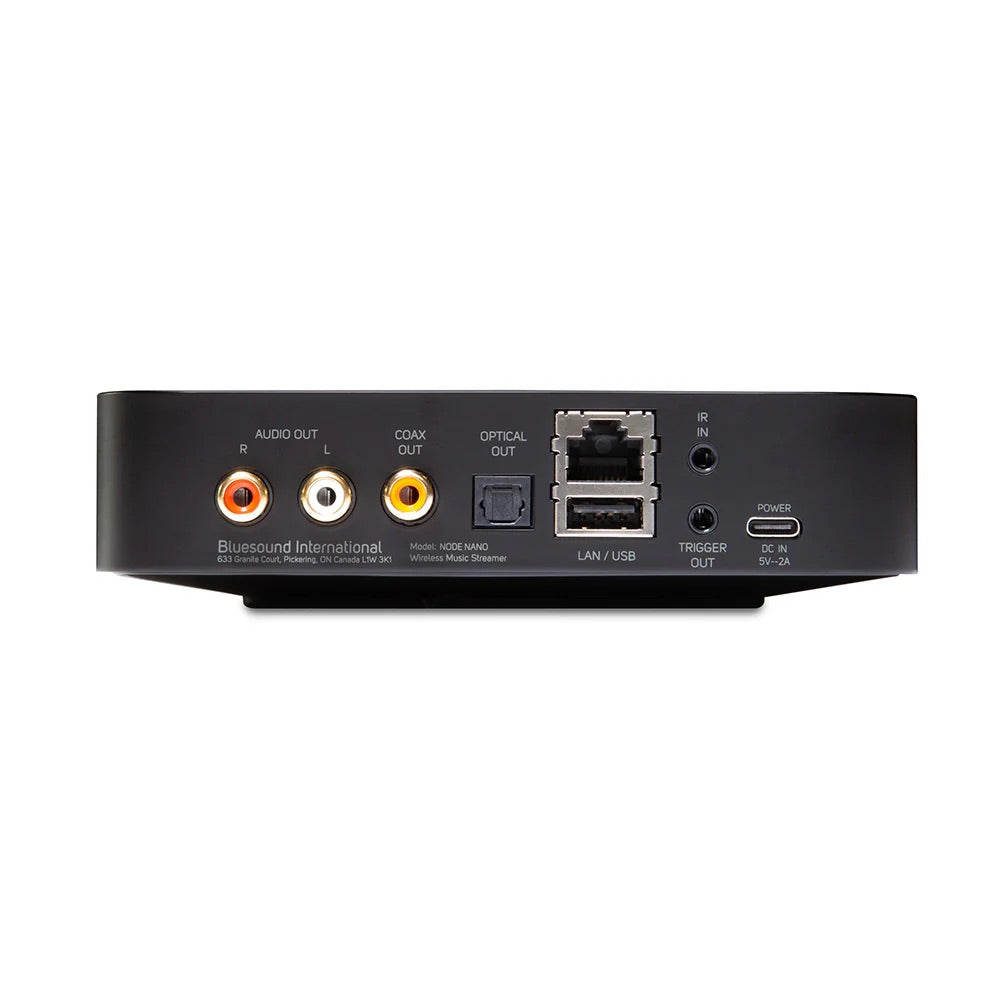

Stereo RCA audio output
Optical, coaxial, and USB audio outputs
Two programmable quick-touch presets
DSD playback
Additional streaming via AirPlay 2, Spotify Connect and TIDAL Connect
Roon Ready
Two-way aptX™ Adaptive* Bluetooth

Specifications:

Supported Audio File Formats	MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS
Native Sampling Rates	up to 192 kHz
DAC	ESS ES9039Q2M
Signal-to-Noise Ratio	-118 dB
Supported High-Quality Audio File Formats	FLAC, MQA, WAV, AIFF, MPEG-4 SLS
Operating System	BluOS
Bit Depths	16 - 24
Distortion	THD+N, 0.0007%
DSD Support	DSD256
Operating System	BluOS
Supported Network File Sharing	Server Message Block (SMB) up to 200,000 files
3rd-Party Integrations	AirPlay 2, Spotify Connect (also support for Spotify Lossless), Tidal Connect, Qobuz Connect, Roon Ready
App Controller Operating System	iOS, Android, Windows, macOS
Album Art Supported	JPG, PNG
Control System Integrations	Crestron, Control4, RTI, ELAN, URC, Lutron, Josh.ai
Processor	ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
Music Services & Internet Radio	23+Music Services Internet Radio
Voice Control Integrations	Amazon Alexa Skills
Power Supply	USB-C (5V-2A)
Optical/Analog Input	IR Sensor Built In - front panel with IR Remote Learning
Coaxial Output	RCA
Ethernet/LAN	Ethernet RJ45, Gigabit 1000 Mbps
IR Input	3.5mm Jack
Optical Output	TOSLINK digital optical
WiFi Built In	Wi-Fi 5 (802.11ac), dual-band
USB In	Type A (Fat32 Formatted) - External Storage only; Local Server Mode
Trigger Out	12V
Bluetooth Quality	Bluetooth 5.2 aptX Adaptive
Bluetooth Connectivity	Two-Way (transmit & receive)
Audio Output	Analog RCA Stereo with Fixed option; USB Audio 2.0 (Type A)
Headphone Output	Bluetooth
Subwoofer Output	Wireless to PULSE SUB+
IR Optical Built In	IR Sensor Built In - front panel with IR Remote Learning
Status Indicator	LED
Volume Control Buttons	Touch LED
Proximity Sensor	Yes
Play/Pause Button	Touch LED
Preset Buttons	Touch LED x 2
Product Dimensions	143 x 36 x 143mm (W x H x D)
Storage Environment	-10°C to 50°C, 20% to 80% relative humidity
Product Weight	0.57kg
Operating Environment	0°C to 40°C
Version	N030
