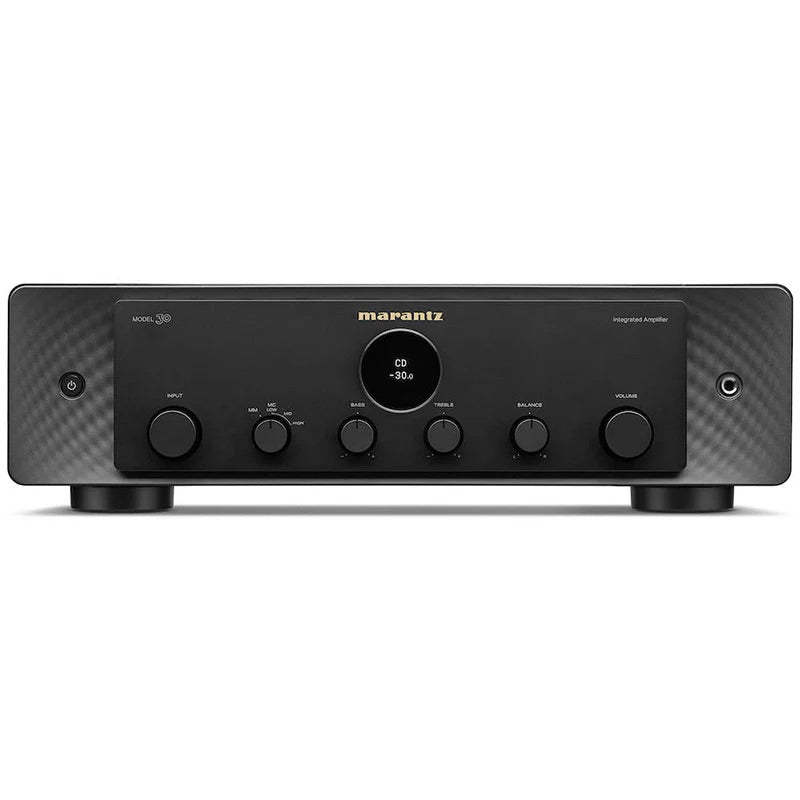

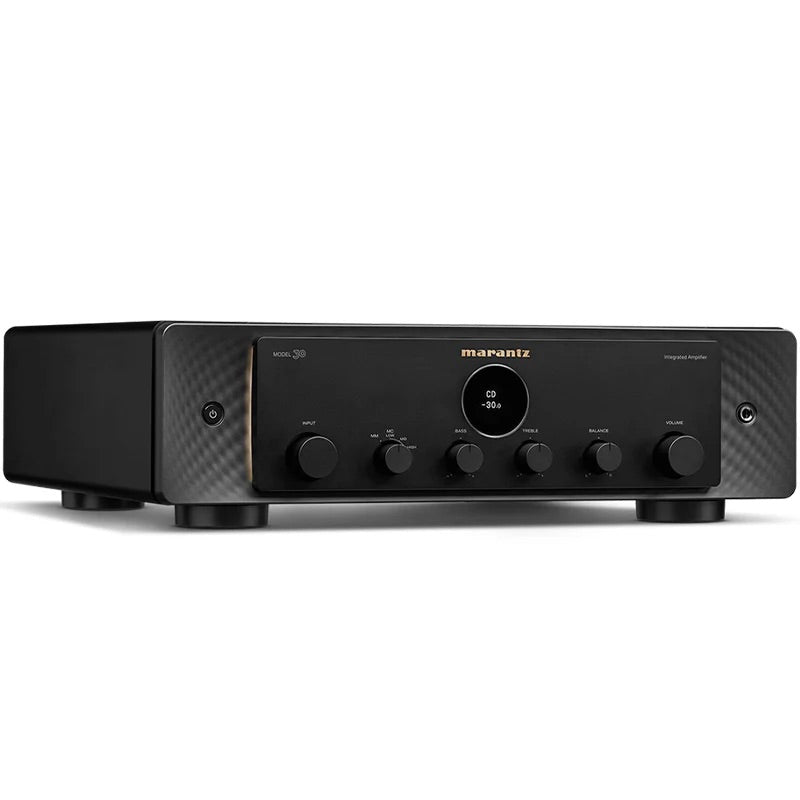

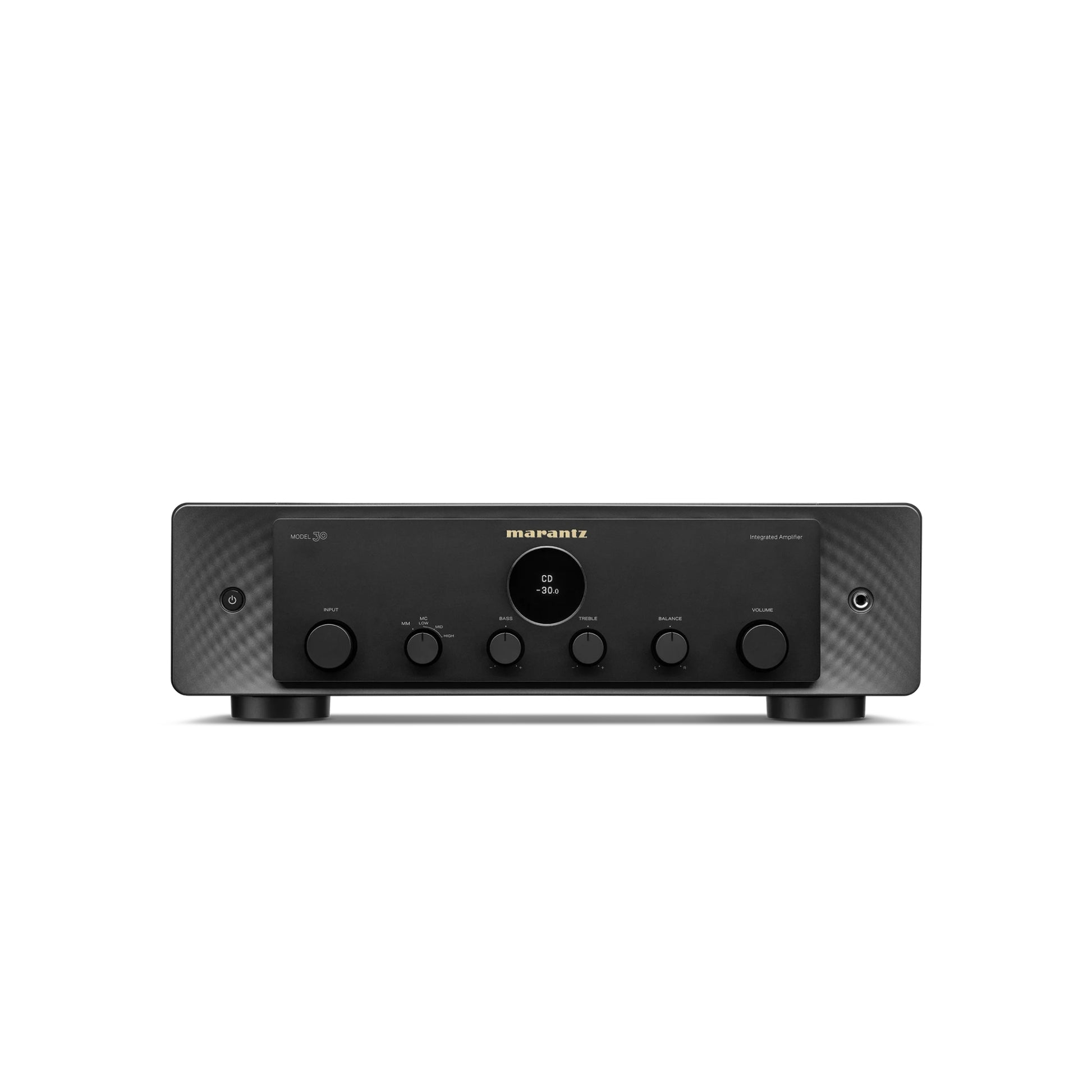

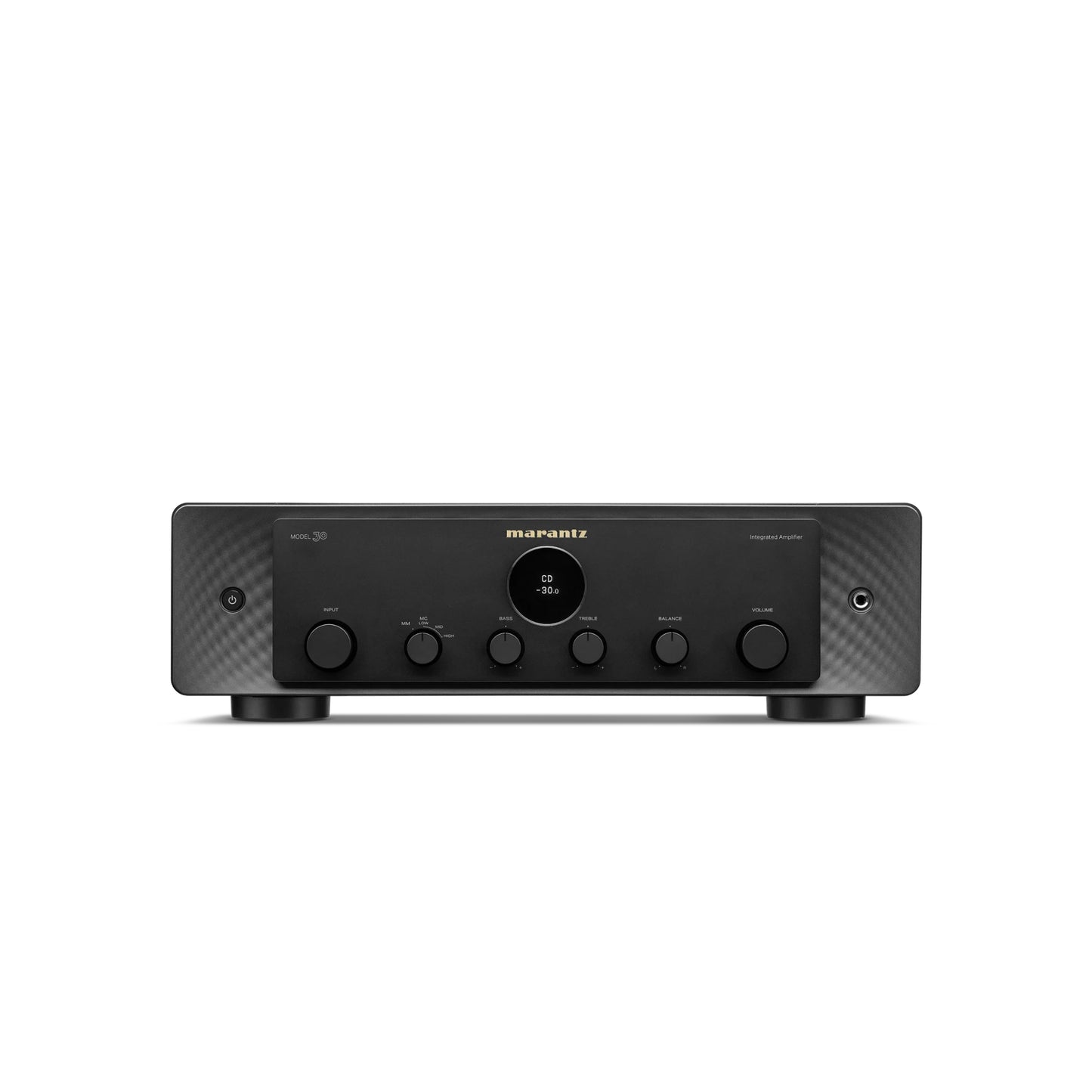

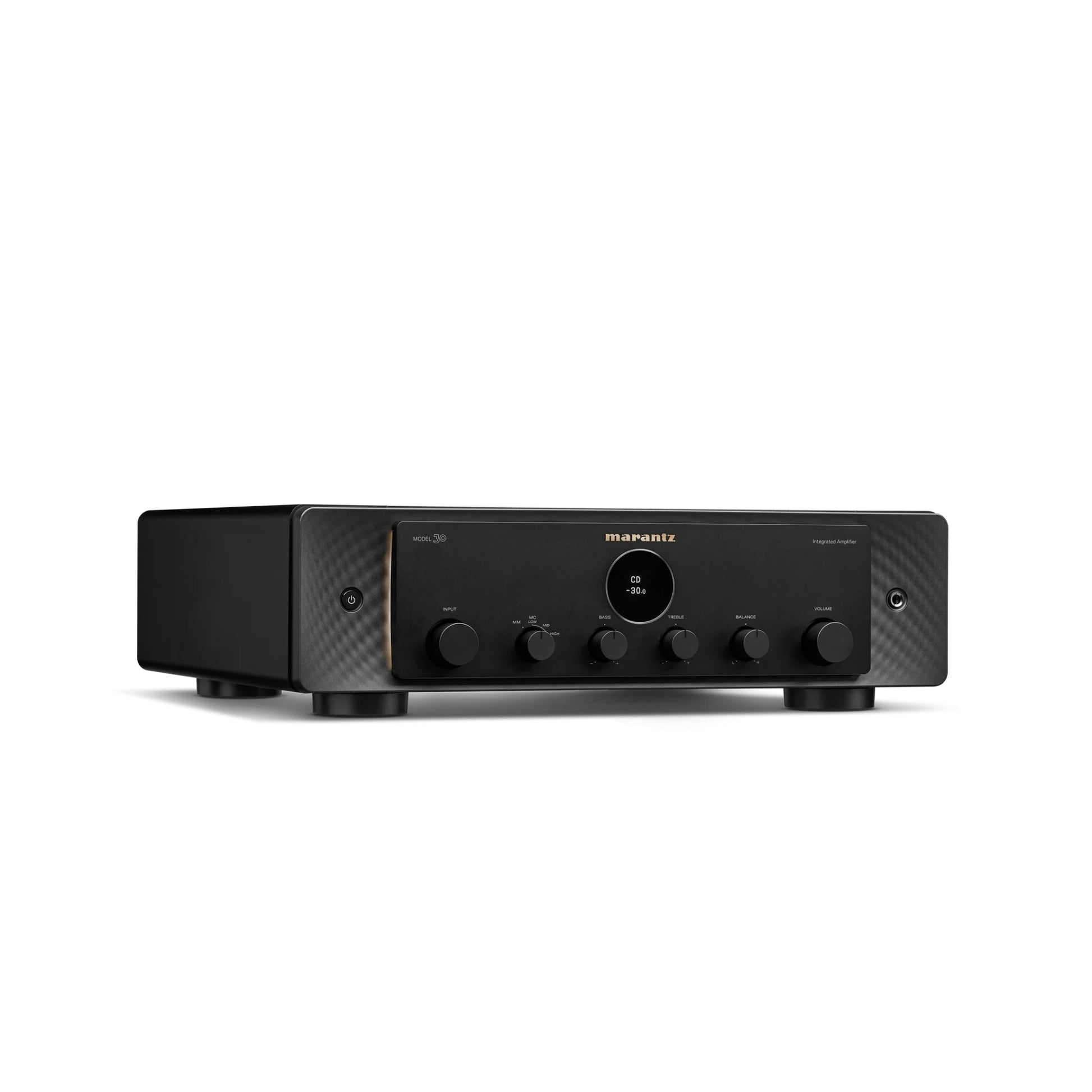

Marantz MODEL30

Premium Integrated Stereo Amplifier with 100W and Custom HDAM

Get the most musical sound possible from this Sound Master tuned integrated amplifier. Its custom designed technology delivers exquisite detail and unforgettable musicality from any style of music.

Artisinal Design
2.2 Channels
100 Watts Per Channel
Custom HDAM
3 Year Warranty

Specifications:

Aluminium extrusion heat sink	Yes (Separate)
Balance / Bass / Treble / Loudness	Yes / Yes / Yes / No
Channels	2
Current Feedback Topology	Yes
Customised Components	Yes
Digital in: USB-B / optical / coaxial / USB-A	No / No / No / No
HDAM version	SA3, SA2
High Grade Audio Components	Yes
Phono EQ: Standard / Marantz Musical / Marantz Musical Premium	No / No / Yes
Power Transformer: Toroidal / El	SMPS
Symmetric PCB Layout	Yes
Audio Inputs	6
Audio Outputs	1
Balanced In / Out	No / No
D-Bus	Yes
Digital in: USB-B / optical / coaxial / USB-A	No / No / No / No
Floating Control Bus (3.5 mm mono jack x 2)	No
Gold Plated Cinch	Yes
HDMI: inputs / outputs	No
Headphone Gain Control (low / mid / high)	No
Headphone Out	Yes
Number of terminals	2
Phono Input: MM / MC	Yes / Yes
Power Amp Direct IN	Yes
Pre-out / Main-in	Yes / No
Speaker A / B	No
Speaker Terminals	Marantz SPKT-100+
Damping Factor	500
Frequency response	5 Hz - 50kHz
Input Sensitivity: Balanced High level	No
Input Sensitivity: High level	220 mV / 13 kohm
Input Sensitivity: MC	250
Input Sensitivity: MM	2.3 mV / 39 kohm
Input Sensitivity: Power Amp Direct IN	No
Power Output (8 / 4 Ohm RMS)	100 W / 200 W
Signal to Noise Ratio: High level	107 dB(2V input/Rated output)
Signal to Noise Ratio: MM/MC	88 / 75 dB
Signal to Noise Ratio: Power Amp Direct IN	No
Total Harmonic Distortion	0.005%
Maximum Dimensions (W x D x H) in mm	443 x 431 x 130
Weight	14.8kg
Carton Maximum Dimensions (W x D x H) in mm	534 x 522 x 255
Carton Weight (inc. product) in kg	17.6kg
