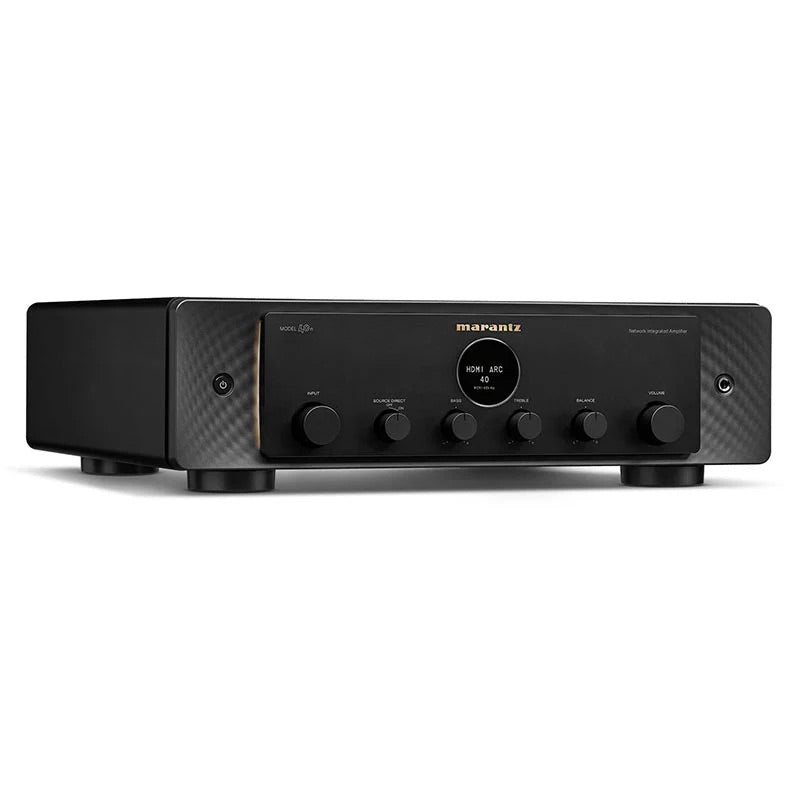

Marantz MODEL40N

70W Premium Integrated Stereo Amplifier Powered by HEOS™ with HDMI ARC

Marantz has reimagined the integrated amplifier for the digital age while preserving a luxurious analog feel and sound.

Rated Output Power	70W + 70W (8ohm) 100W + 100W (4ohm)
Power Amplifier Circuit	HDAM-SA3
Power Transformer	Double Shielded Toroidal
Volume	Electric
Bass / Treble / Mid / Balance Control	yes / yes / - / yes
Source Direct	Yes
Frequency Response	5Hz - 50kHz
Total Harmonic Distortion	0.02% (20Hz - 20kHz, 8Ω)
Dumping Factor	100
Input Sensitivity: Phono input	2 mV / 47 kohm
Input Sensitivity: CD/Line/Recorder	220 mV / 20 kohm
Input Sensitivity: Power Amplifier input	1.6 V / 15 kohm
SN Ratio	PHONO (MM): 87dBCD: 106dB
Phono Input	yes (MM) Marantz Musical Phono EQ
Ext. Pre Input (Power Amp Direct)	Yes
Preout	No
Analog Input (include Phono) / REC Out (RCA)	4 (PHONO, CD, LINE,RECORDER) / 1 (RECORDER)
Optical input	1
Coaxial input	1
HDMI	1 / 0 (ARC) PCM only
USB A	1 (Rear), Mass Storage Class5V/1A
Speaker Terminal	SPKT-1+
Remote Control Bus Terminal	Yes (RC-5 In / Out)
Subwoofer Pre-out Low Pass Filter	Selectable 40 Hz / 60 Hz / 80 Hz /100 Hz / 120 Hz
App	HEOS App
Remote Controller	System Remote Features (Amp and CD Player Control)
Dimensions (W x D x H)	443 × 432 × 130 mm
Weight	16.7kg
Shipping Dimensions (W x D x H)	534 × 522 × 255 mm
Carton Weight (inc. product) in kg	19.6kg
