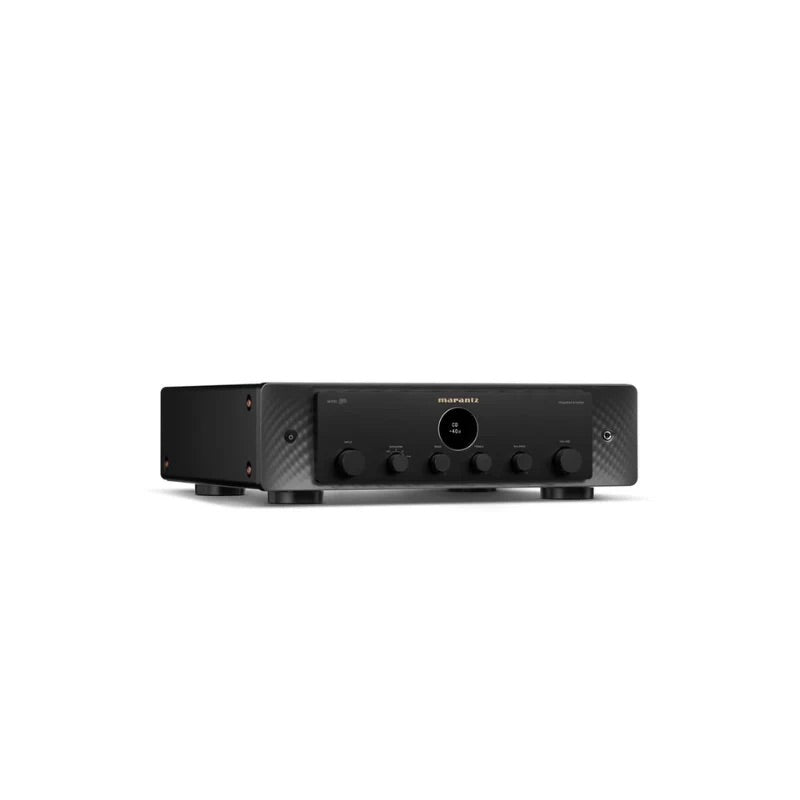

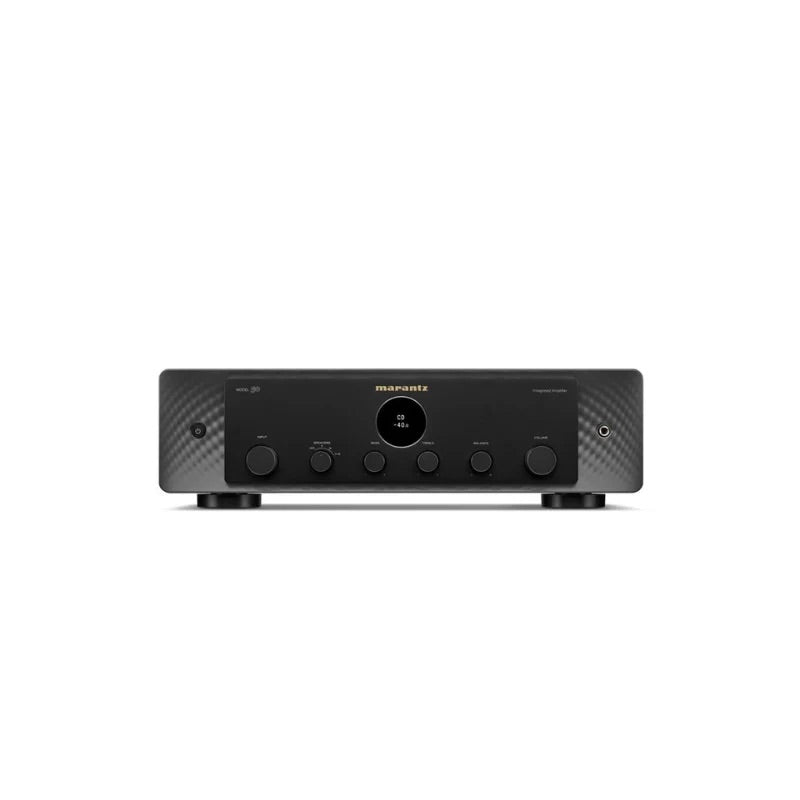

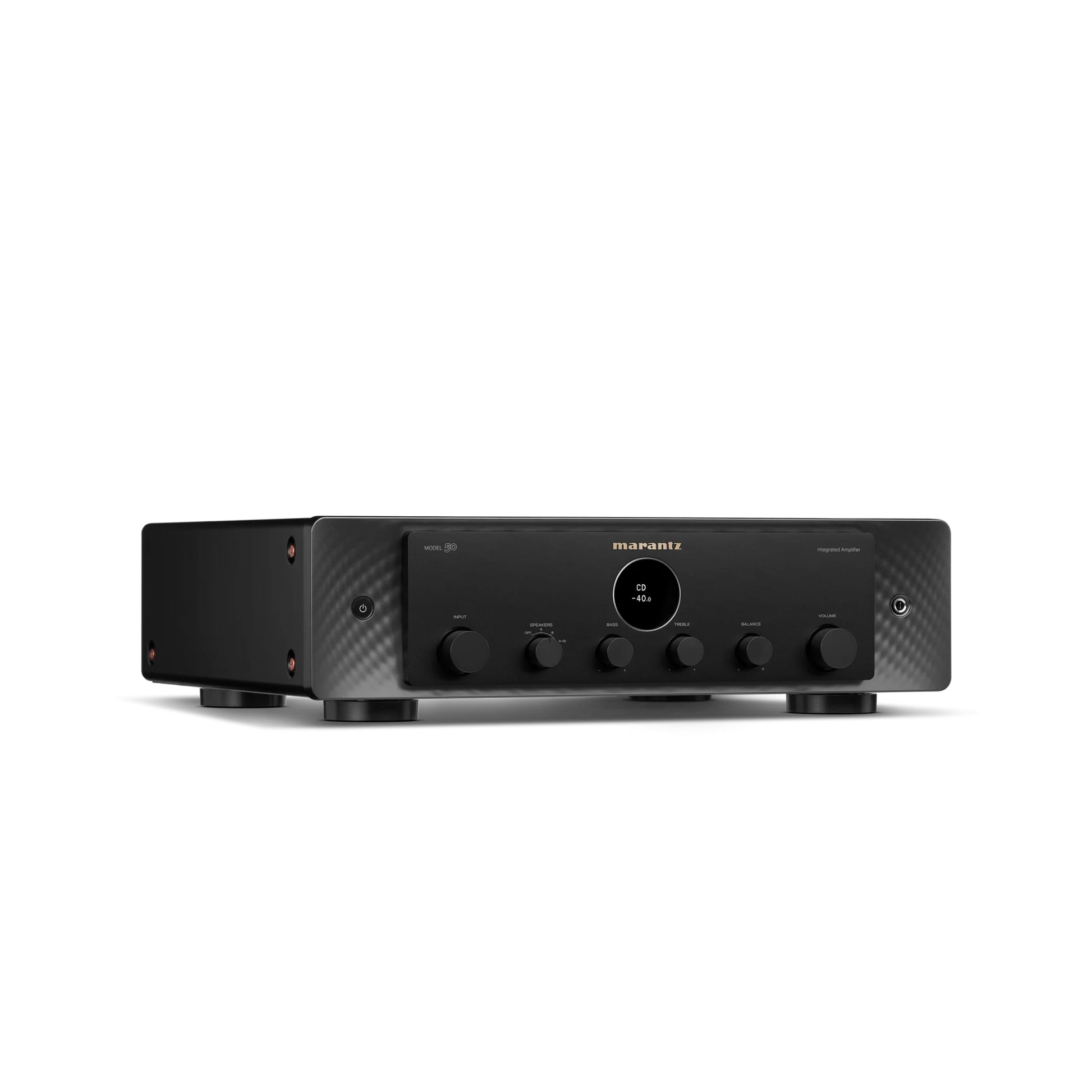

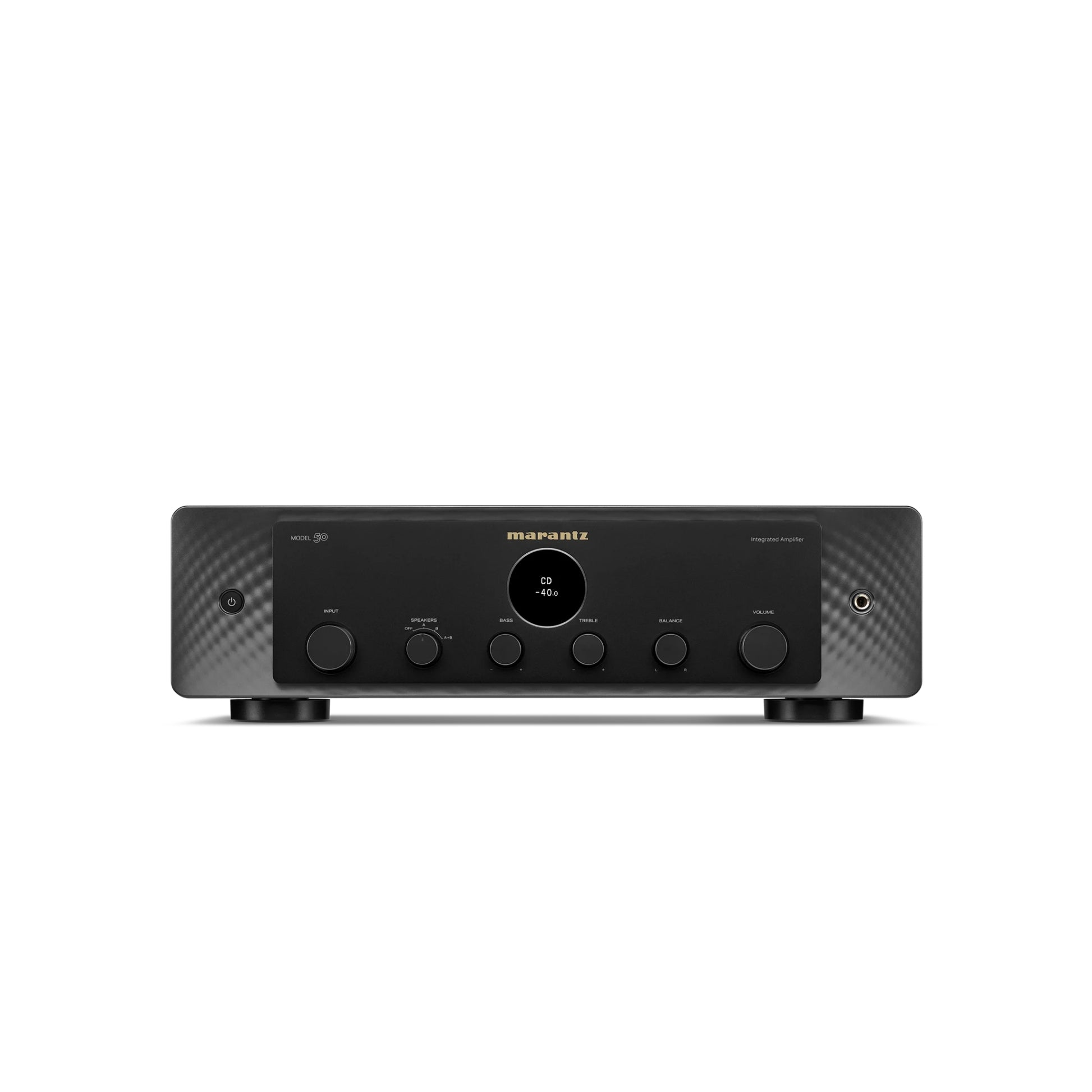

Marantz MODEL50

Premium Integrated Stereo Amplifier with 70W and Custom HDAM

MODEL 50 was designed and engineered to be thoroughly modern, yet timeless. Engineered with Marantz proprietary technologies, this integrated amplifier pushes the boundaries of audio equipment design to reveal the musicality in all your stereo source components.

Artisinal Design
2.2 Channels
70 Watts Per Channel
Custom HDAM

Specifications:

Channels	2
Current Feedback Topology	Yes
Phono EQ: Standard / Marantz Musical / Marantz Musical Premium	- / Yes / -
Digital in: USB-B / optical / coaxial / USB-A	- / - / - / -
Customised Components	Yes
HDAM version	SA3, SA2
High Grade Audio Components	Yes
Power Transformer: Toroidal / El	Yes / -
Symmetric PCB Layout	Yes
Aluminium extrusion heat sink	Yes
Balance / Bass / Treble / Loudness	Yes / Yes / Yes / -

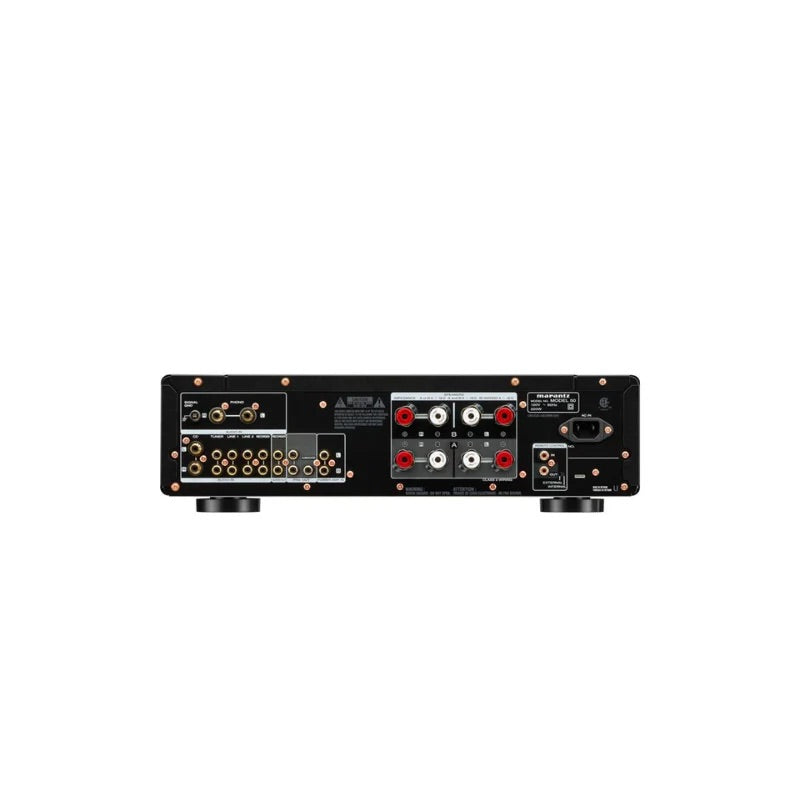

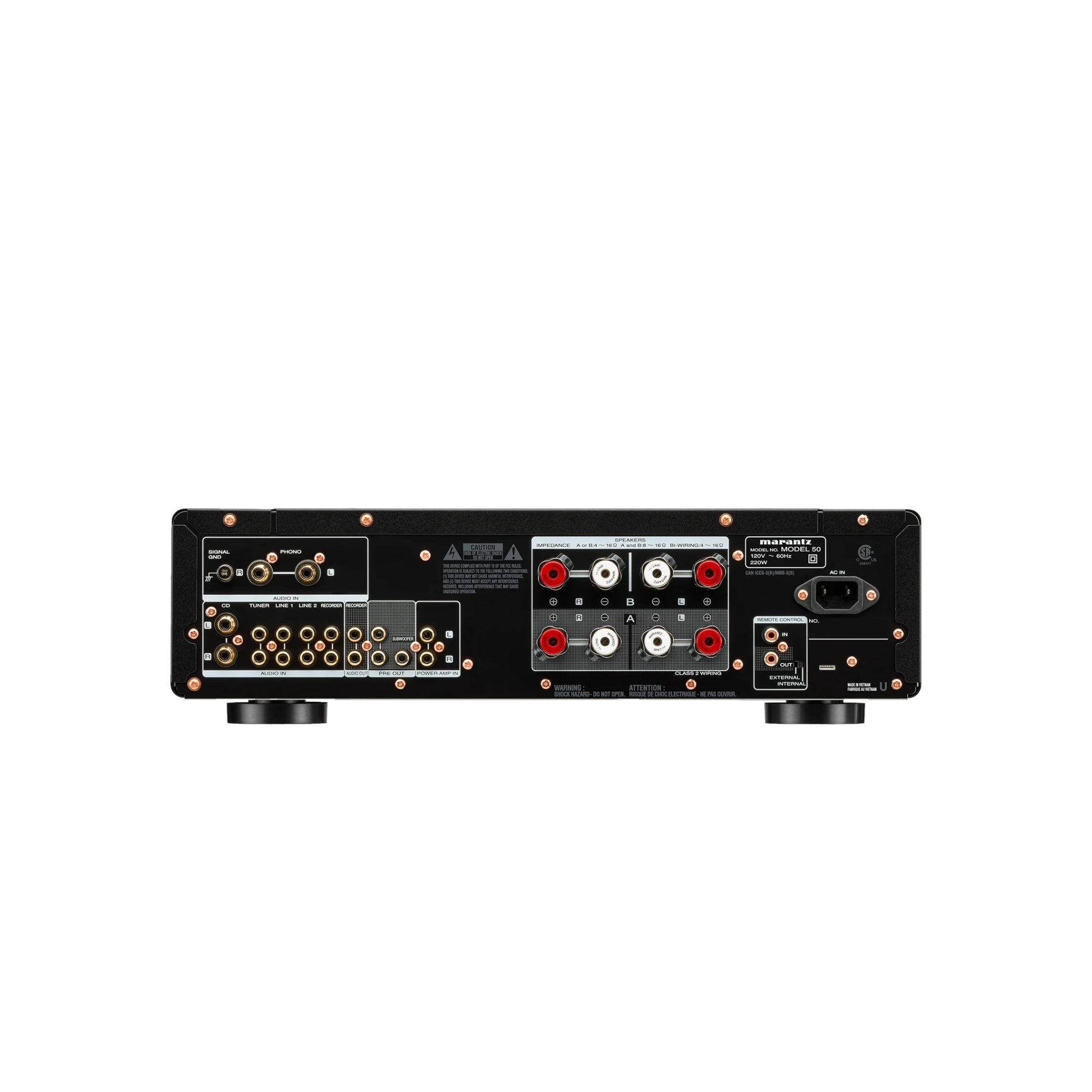

Audio Inputs	6
Audio Outputs	1
Balanced In / Out	- / -
D-Bus	Yes
Digital in: USB-B / optical / coaxial / USB-A	No / No / No / No
Gold Plated Cinch	Yes
Headphone Out	Yes
Number of terminals	4
Phono Input: MM / MC	Yes / -
Power Amp Direct IN	Yes
Pre-out / Main-in	Yes + subwoofer / -
Speaker A / B	Yes
Speaker Terminals	Marantz SPKT-100+
Power Output (8 / 4 Ohm RMS)	100 W / 200 W
Damping Factor	100
Power Output (8 / 4 Ohm RMS)	70 W / 100 W
Frequency response	5 Hz–100 kHz
Input Sensitivity: MM	1.4 mV / 47 kΩ
Signal to Noise Ratio: MM/MC	87 dB / -
Input Sensitivity: High level	185 mV / 16 kΩ
Signal to Noise Ratio: High level	116 dB (2 V input)
Input Sensitivity: Power Amp Direct IN	1.5 V / 15 kΩ
Signal to Noise Ratio: Power Amp Direct IN	125 dB
Treble Control	± 10 dB at 15 kHz
Bass Control	± 10 dB at 50 Hz
Total Harmonic Distortion	0.02 %
Maximum Dimensions (W x D x H) in mm	442 x 431 x 130
Weight	14.2kg
Carton Maximum Dimensions (W x D x H) in mm	527 x 517 x 255
Carton Weight (inc. product) in kg	17.5kg
