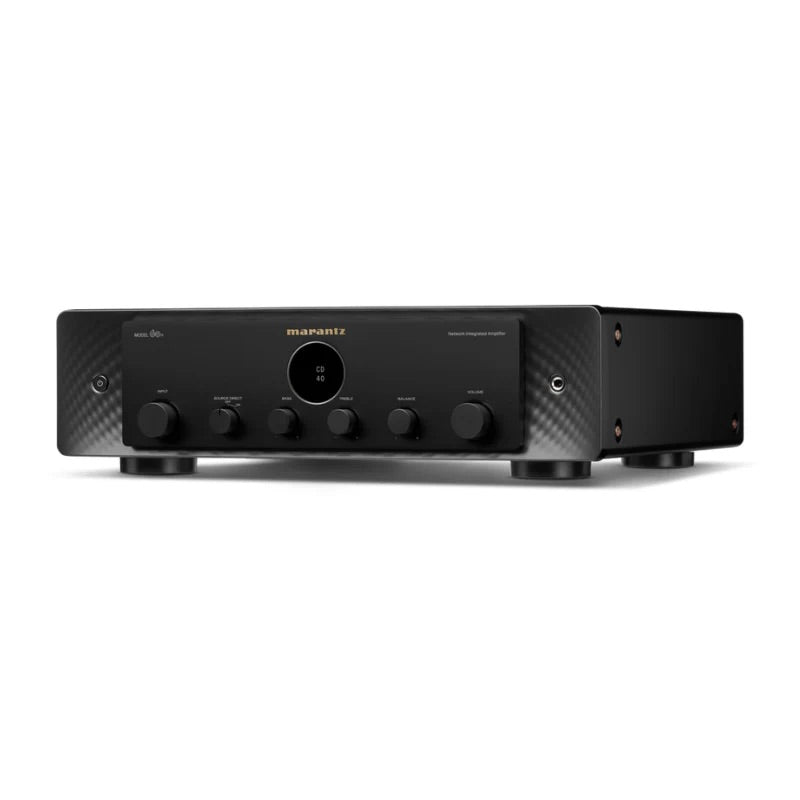

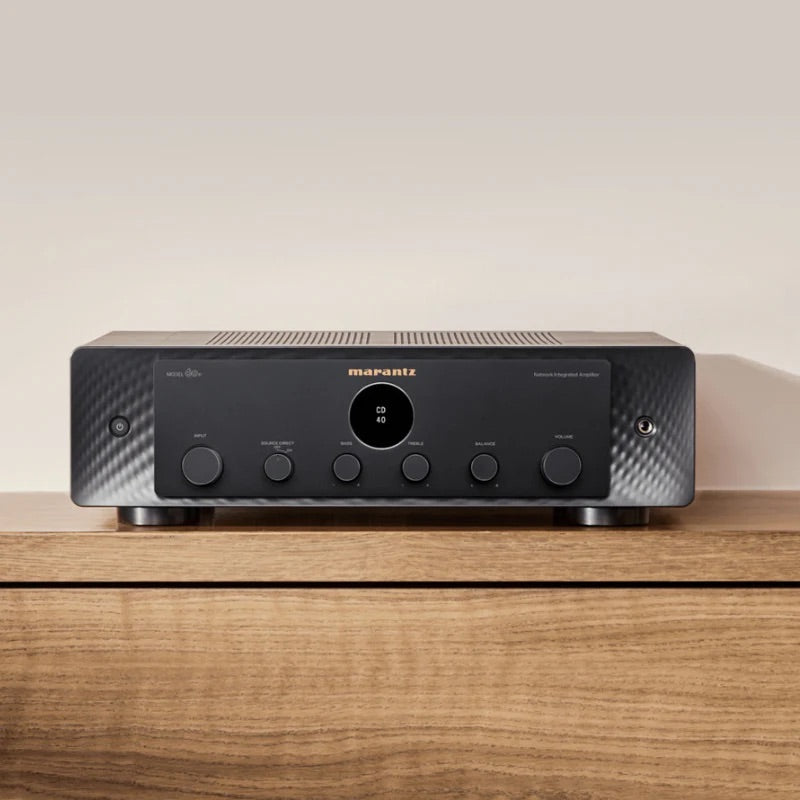

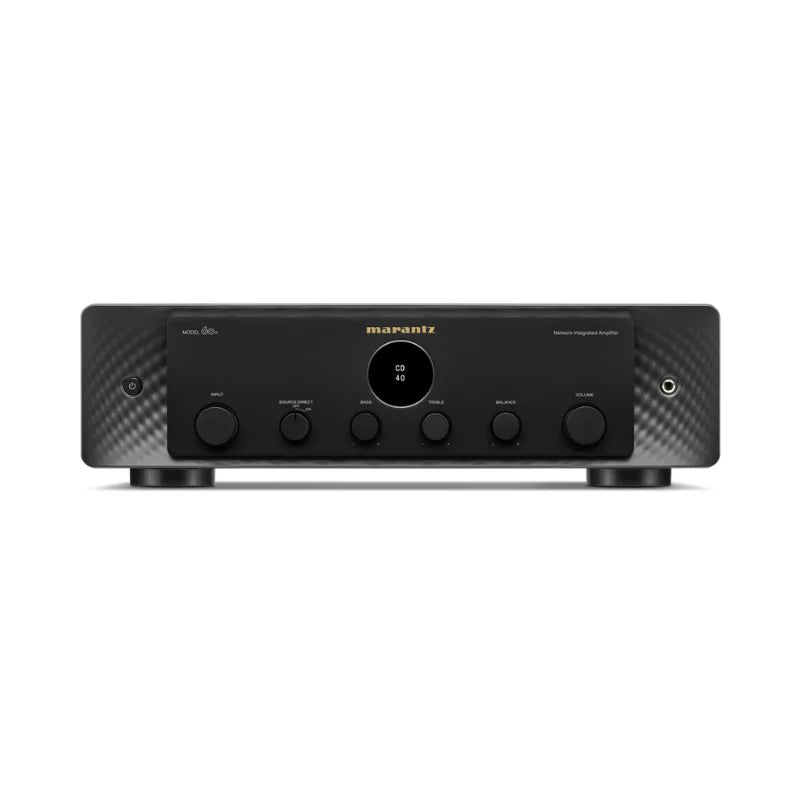

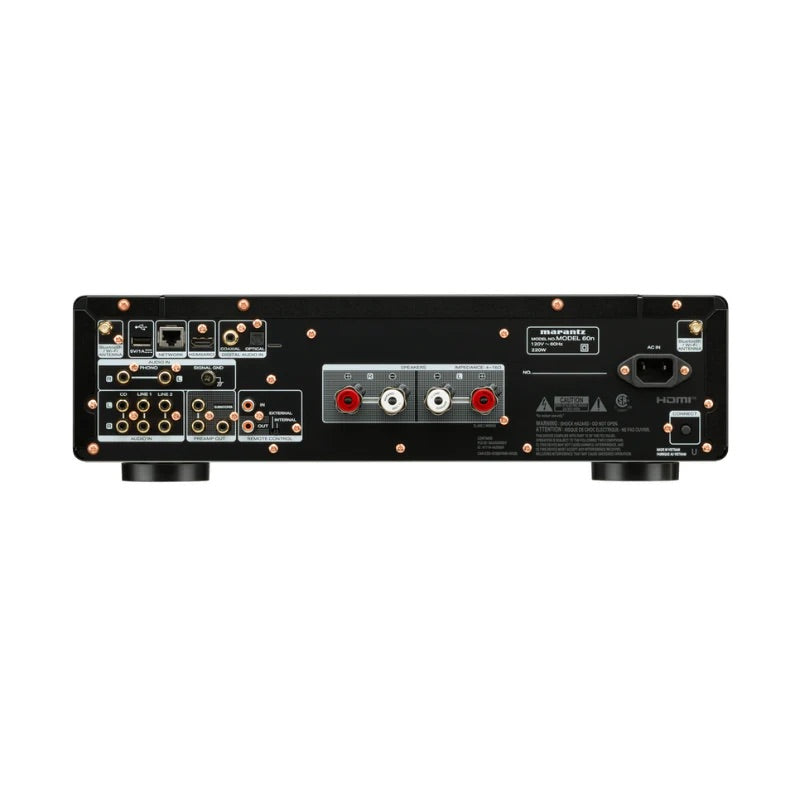

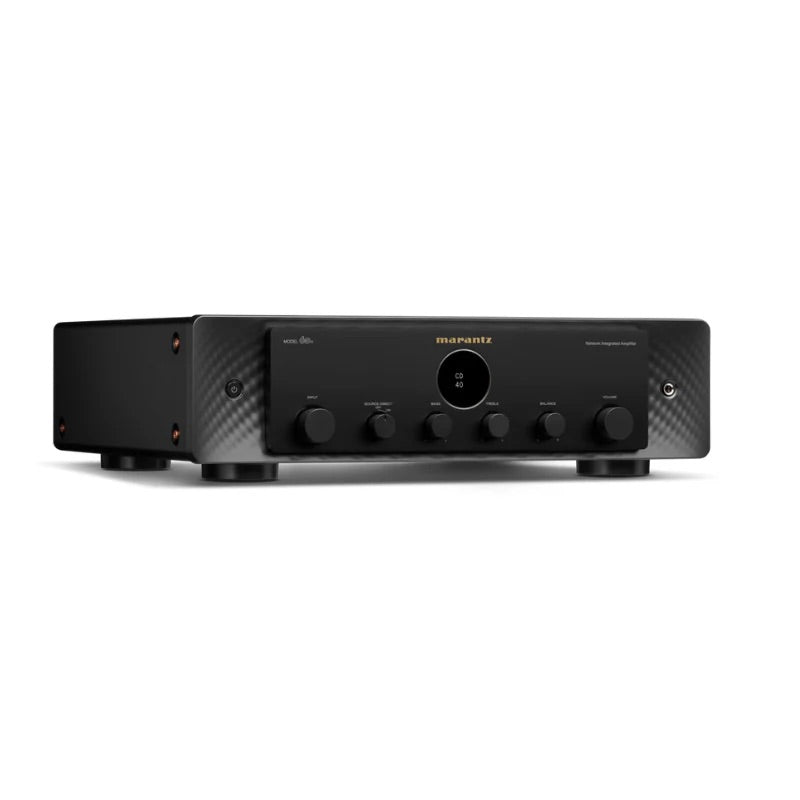

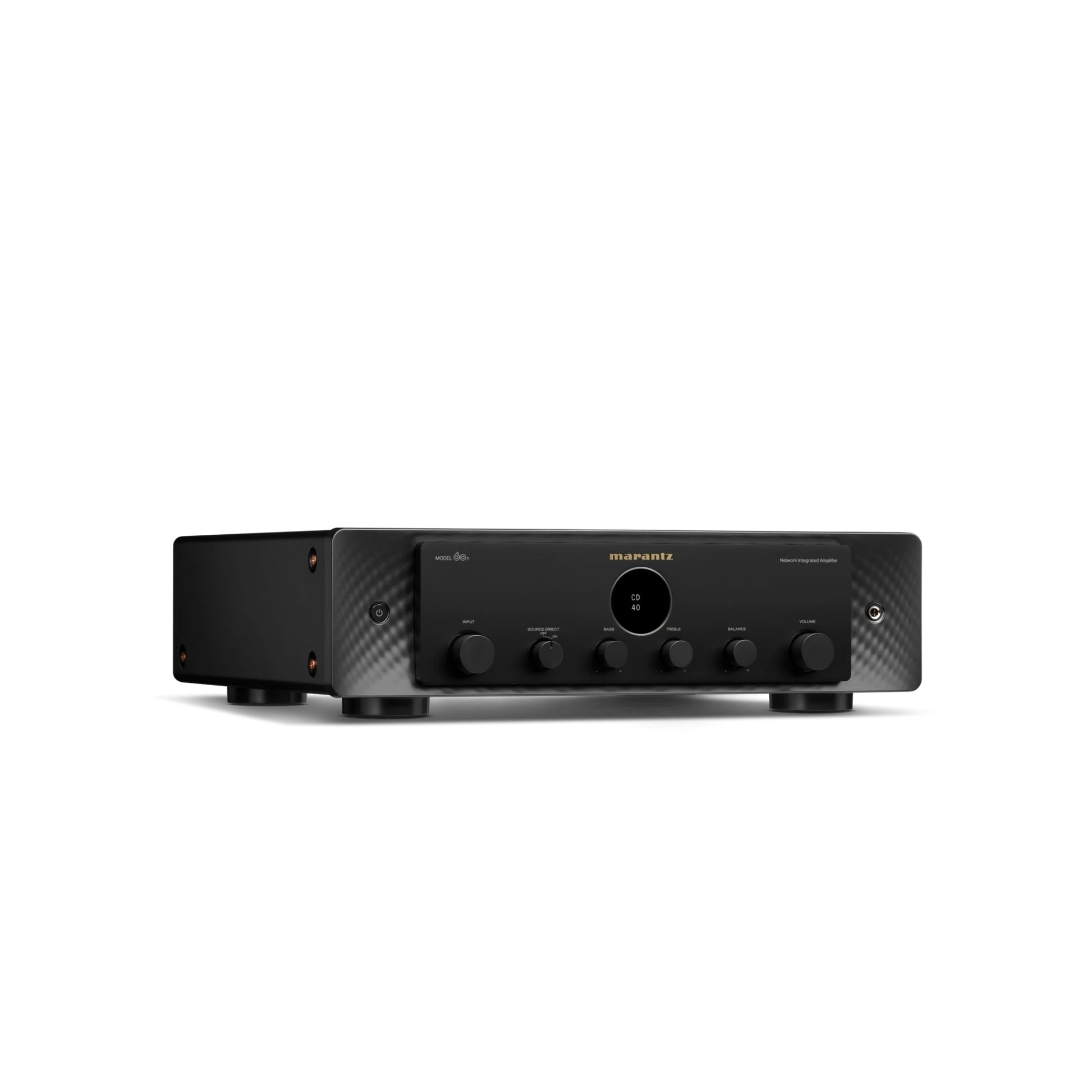

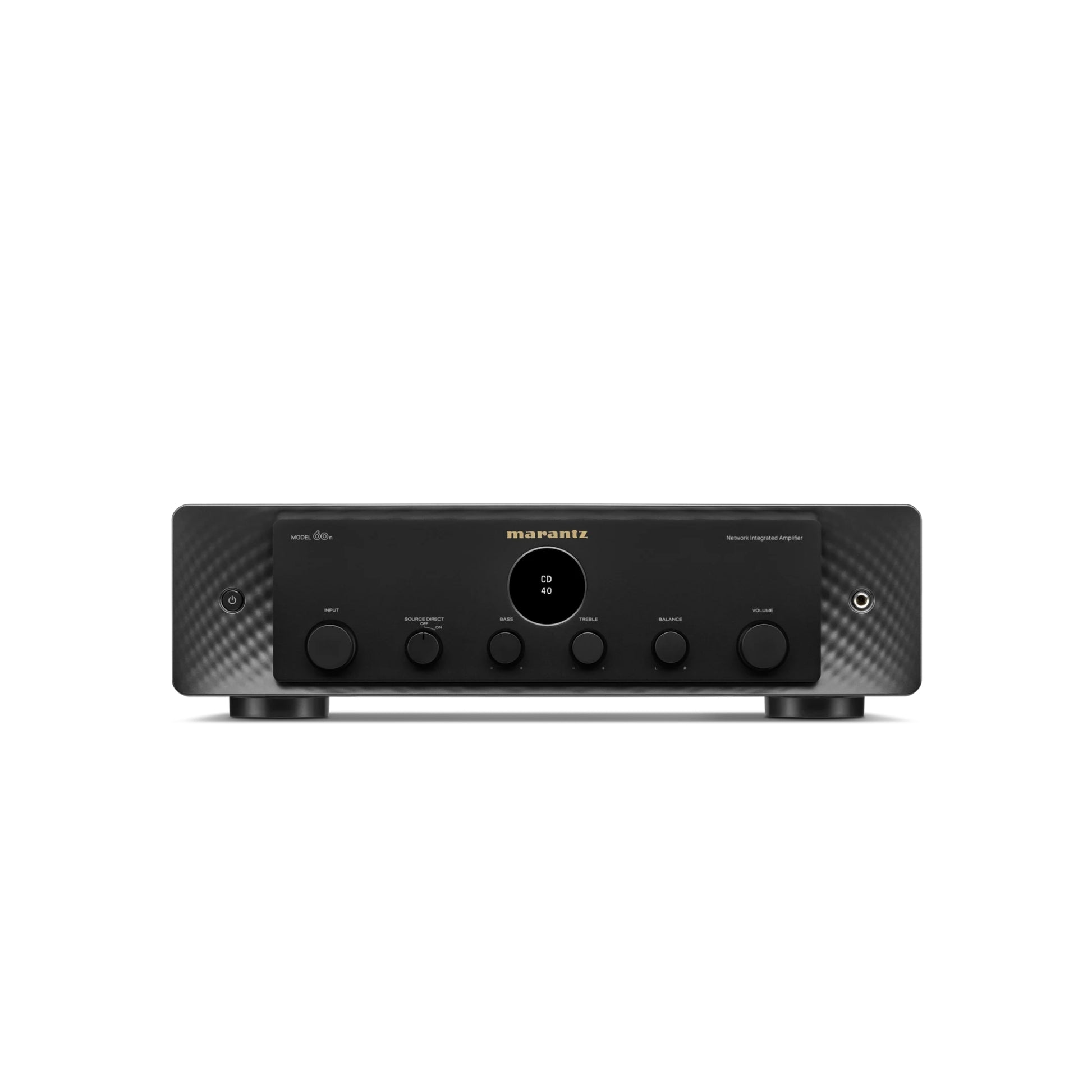

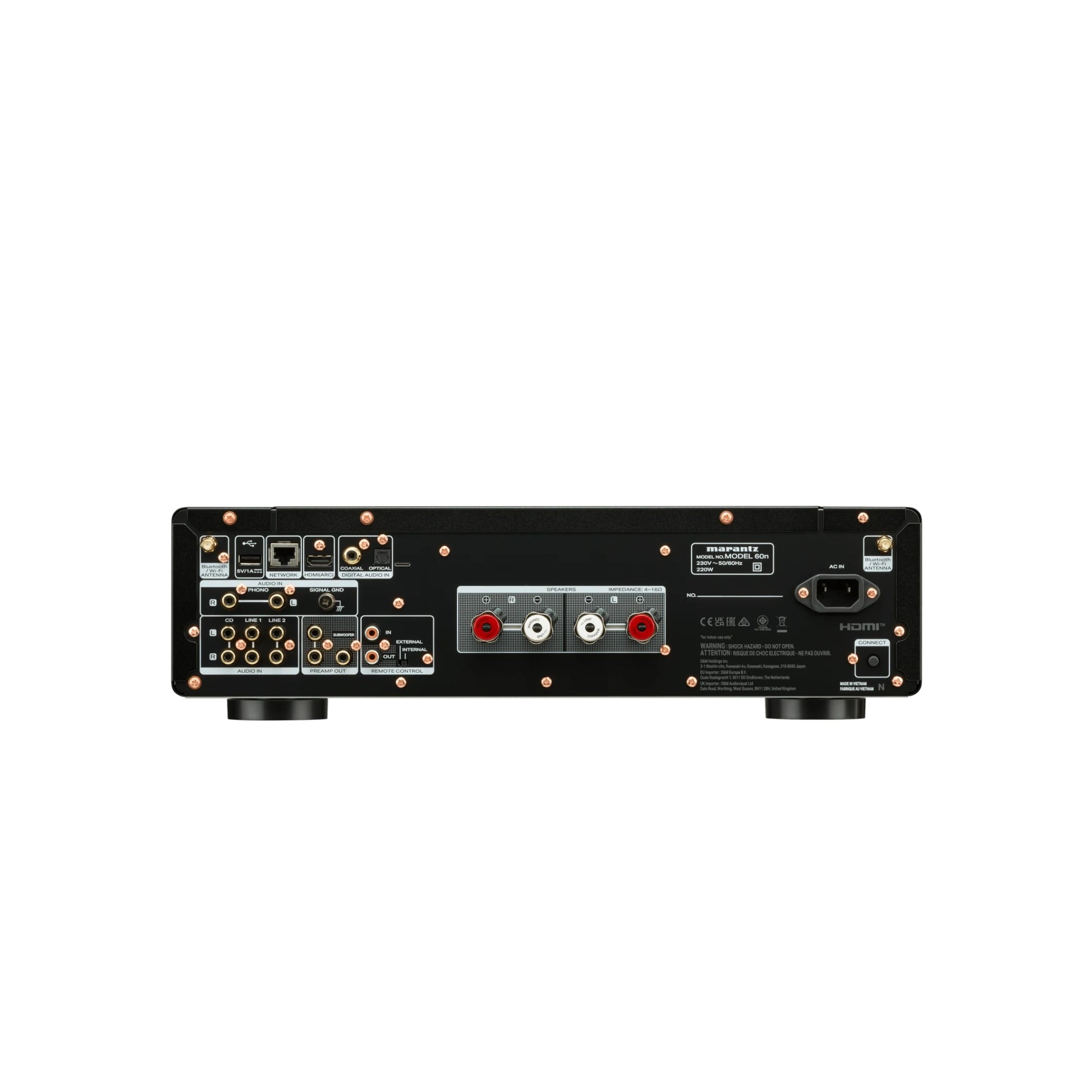

Marantz MODEL60N

2 Channel Network Integrated Amplifier with 60W and Powered by HEOS™

MODEL 60n is a network integrated amplifier engineered for exceptional hi-fi performance and comprehensive connectivity. Stream in high-resolution via HEOS®, connect your CD player or turntable and complete your hi-fi system with the speakers of your choice, or an optional subwoofer.

60W per channel
Powered by HEOS™
HDMI ARC
Marantz HDAM® circuits
Hi-Res audio support
CD and MM phono inputs

Specifications:

Channels	2
PSU Transformer	Toroidal
Speaker A / B	No
Speaker Terminals	Marantz SPKT-1+
Number of Terminals	2
Power Output (8 / 4 Ohm RMS)	60 W / 80 W
Topology	Class A/B
Current Feedback Topology	Yes
HDAM Version	SA3, SA2
High Grade Audio Components	Yes
Customised Components	Yes
Symmetric PCB Layout	Yes
BI-AMP and Multichannel Option	No
D-Bus	Yes
Digital Inputs	Coaxial, Optical, USB-A
Max PCM Sample Rate	192 kHz / 24-bit
Max DSD Sample Rate	DSD 4X (11.2 MHz)
HDMI	1 ARC
Streaming Technologies	Bluetooth, Airplay 2, Roon Ready, Spotify Connect, Tidal Connect
Streaming Services (subject to change and local availability)	Tidal (Hi Res), Deezer (Hi Res), Amazon Music HD, Pandora, TuneIn, iHeartRadio, SoundCloud, SiriusXM, AWA, Mood:Mix, Qplay, Sony HiRes
HEOS Multiroom and Streaming	Yes
Lossy Formats	MP3, WMA, AAC
Lossless Formats	DSD/DSF, FLAC, ALAC, WAV
Gapless Playback	Yes
HEOS App	iOS, Android
Wi-Fi / Wired LAN	Yes / Yes
Display	Low-Noise OLED Monochrome
Phono EQ	MM Standard
Tuner: FM / AM	No
Audio Adjustments	Yes
Power Amp Direct	No
Balanced In / Out	No / No
Preamp Outputs	1
Subwoofer Output	1 Mono
Headphone Out	Yes
Frequency Response	5 Hz-100 kHz
Total Harmonic Distortion	0.02 %
Damping Factor	100<
Input Sensitivity: MM	1.9 mV / 47 kOhm
Signal to Noise Ratio: MM/MC	87 dB / -
Input Sensitivity: High Level	190 mV / 20 kOhm
Signal to Noise Ratio: High Level	113dB
Treble Control	± 10 dB at 15kHz
Bass Control	± 10 dB at 50Hz
Maximum Dimensions (W x D x H) in mm	442 x 431 x 129
Carton Maximum Dimensions (W x D x H) in mm	527 x 517 x 255
Carton Weight (inc. product) in kg	15.5kg
