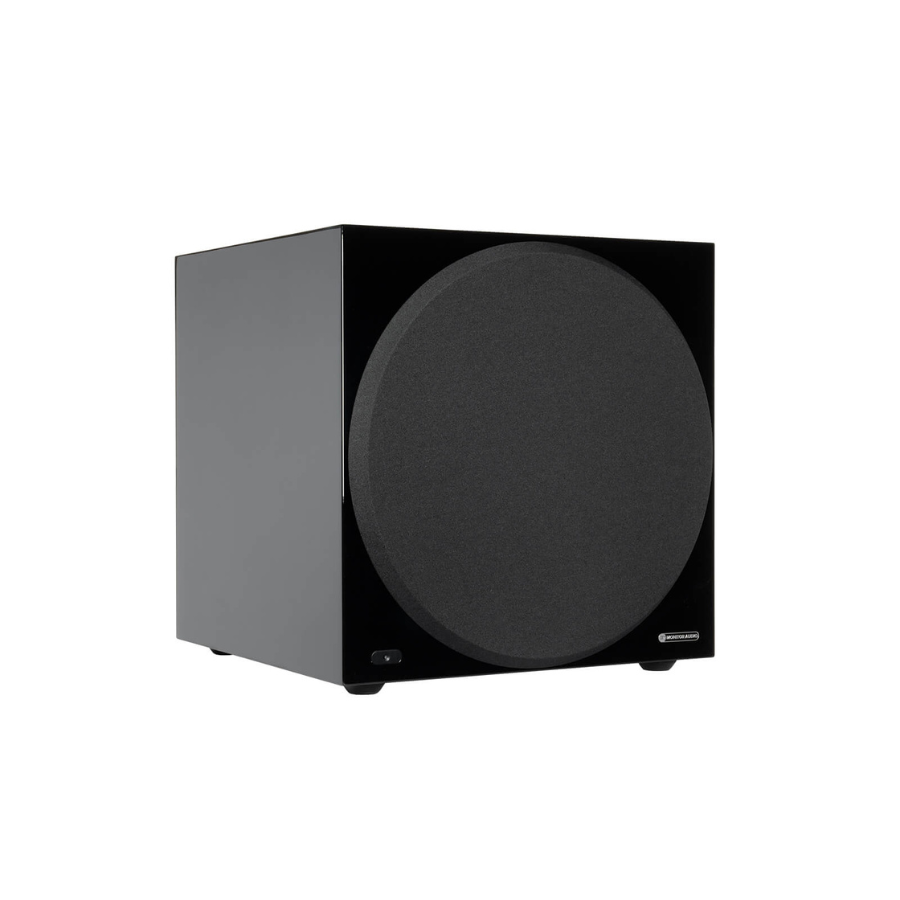

Monitor Audio Anthra W15 Subwoofer

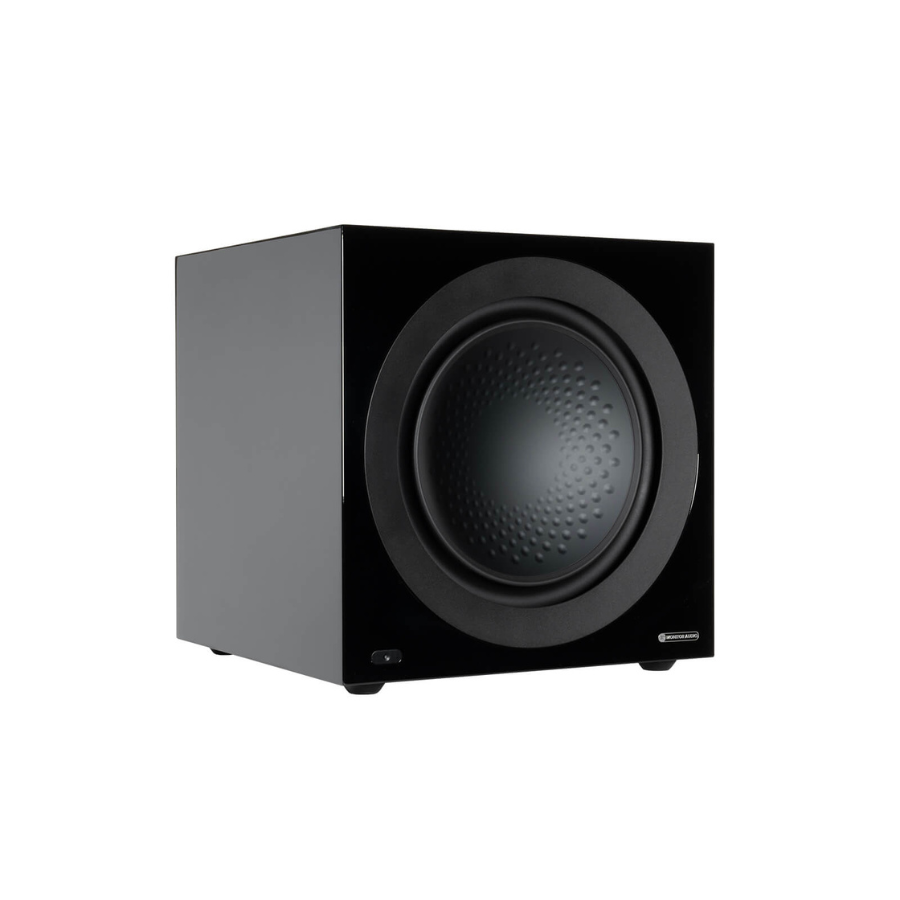

The W15 is the largest subwoofer within the Anthra subwoofer series. It features a 15” (38 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver powered by a Class-D 2,500 Watt amplifier, housed within a comprehensively internally braced, sealed-box cabinet.

Features at a glance:

• 15” Rigid Surface Technology II
• C-CAM high-excursion driver
• Class-D 2500 Watt amplifier
• Full-colour LCD display
• RCA outputs
• Massive motor assembles
• Compatible with MaestroUnite
• XLR inputs
• XLR outputs
• MaestroUnite Setup

---

SPECIFICATIONS

System Format

Active - Sealed Cabinet

Drive Unit Complement

1x 15" (381 mm) High Linear-Excusion Triple Suspension Driver

Amplifier Classification

High-Efficiency Class-D

Lower Frequency Limit

-6dB @16Hz

Upper Frequency Limit

(LPF Off) -6dB @400Hz

Driver Excursion (pk-pk)

50 mm

DSP

28 Bit 50 MIPS Configuratable through MaestroUnite

Analogue Digital Conversion

Autoranging Input which combines a 10Vrms maximum input with low signal to noise for small signals

Amplifier Output Power, 240Vac

Instantaneous: 2500 W*
Continuous short-term: 1400 W**

Amplifier Output Power, 120Vac

Instantaneous: 2500 W
Continuous short-term: 1400 W

LED UI Control

Brightness, On-Off

Phase Control

0-360 Degrees measured at LPF Crossover

Low Pass Filter

20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct

Custom EQ

Configurable through MaestroUnite;3 pre-defined EQ curves plus 3 custom EQ curves each with 8 band custom EQ supporting (Peaking, High Shelf, Low Shelf, High Pass)

Volume Level

Wide adjustable input gain to allow maximum output from a wide range of input signals

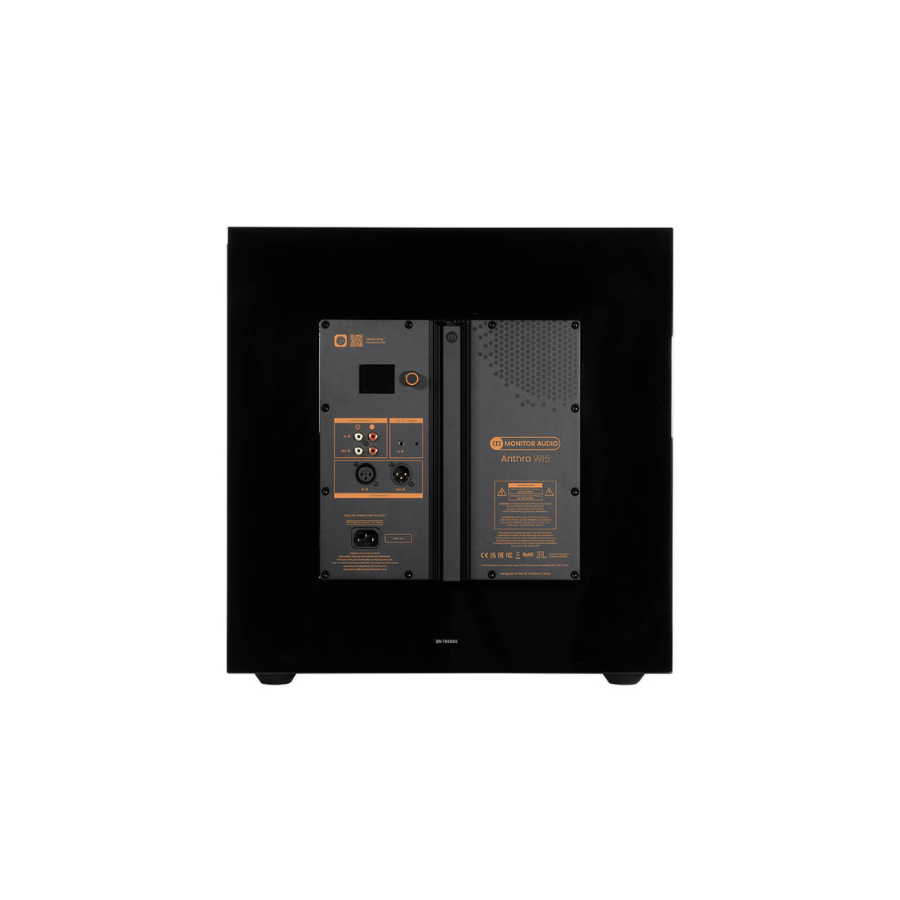

Inputs

Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE)
Mono/LFE Balanced XLR

Outputs

Stereo unbalanced outputs with unbuffered throughput from RCA Inputs
Mono/LFE Balaned XLR outputs with unbuffered throughput from XLR Input

Mains Input Voltage

Universal Mains, 85-265VAC

External Dimensions (without feet) (HxWxD)

439 x 439 x 439 mm

Power Consumption

550 W

Cabinet Construction

Braced 25 mm thick MDF with 36 mm front baffle

Grille

Cloth covered magnetically attached Grilles

Weight

35.41 kg (78 lb 1 oz)

* Maximum RMS output for an instantaneous signal

** Sinewave for 10 seconds

Warranty

5 years
