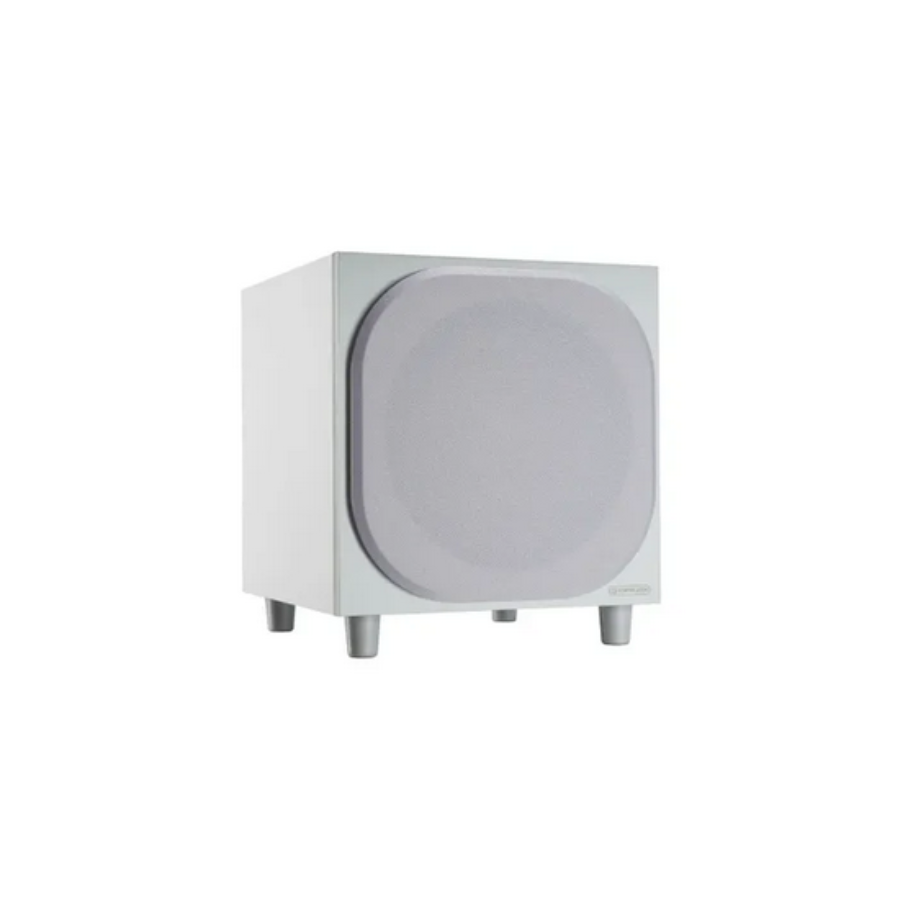

Monitor Audio Bronze W10 Subwoofer

If you love deep and refined bass notes, the Bronze W10 is a must-have addition to
your speaker set-up as every soundscape is effortlessly reinforced by our beautifully
designed subwoofer.

The Bronze W10’s long-throw 10” C-CAM subwoofer driver combines with the 10”
auxiliary bass radiator to bring a powerful and vivid realism to any performance.
Be prepared to experience every rumble, shudder and judder of a movie soundtrack.

---

SPECIFICATIONS

System Format

Long-throw 10” driver featuring ‘dished’ C-CAM cone. 10” flat panel ABR (Auxiliary Bass Radiator).

18 mm MDF internally braced construction

Lower Frequency Limit

-3 dB @ 33 Hz / -10 dB @ 28 Hz (Free Field)

Default preset:

Music, -3 dB @ 29 Hz / -10 dB @ 25 Hz (In room)

Upper Frequency Limit

 -6 dB @ 150 Hz

Drive Unit Complement

1 x 250 mm (10”) C-CAM subwoofer driver featuring a 2” long throw voice coil

Linear Driver Excursion

17 mm peak to peak

Amplifier Output

220 W

Amplifier Classification

Class D with high current Switch mode power supply (SMPSU)

Phase Control

0 Degrees & 180 Degree pure Invert

Low Pass Filter Alignment

4th order (24 dB/Octave), from 50 Hz to 120 Hz

Equalisation DSP

3 pre-set modes: Music, Movie, Impact

Auto Sensing Line Level

>3mV. Auto Standby feature after 20 mins

Audio Inputs

LFE unbalanced input RCA

Stereo unbalanced inputs RCA

Input Impedance

20 kOhms input impedance

12 V Trigger 3.5 mm mono mini-jack. 6 V threshold

Mains Input Voltage

110 – 120 VAC ~60Hz / 220 – 240 VAC ~50/60 Hz (Manually selected)

Power Consumption Maximum

300 W, Standby <0.5 W (ErP compliance)

Fuse Type

20 mm T4AL 250 VAC

External Dimensions including Amp, Drivers & Terminals (H x W x D)

321 x 321 x 364 mm

External Dimensions including Amp, Drivers, Terminals & Feet (H x W x D)

366.5 x 321 x 364 mm

Weight (Unpacked)

13.4 kg
