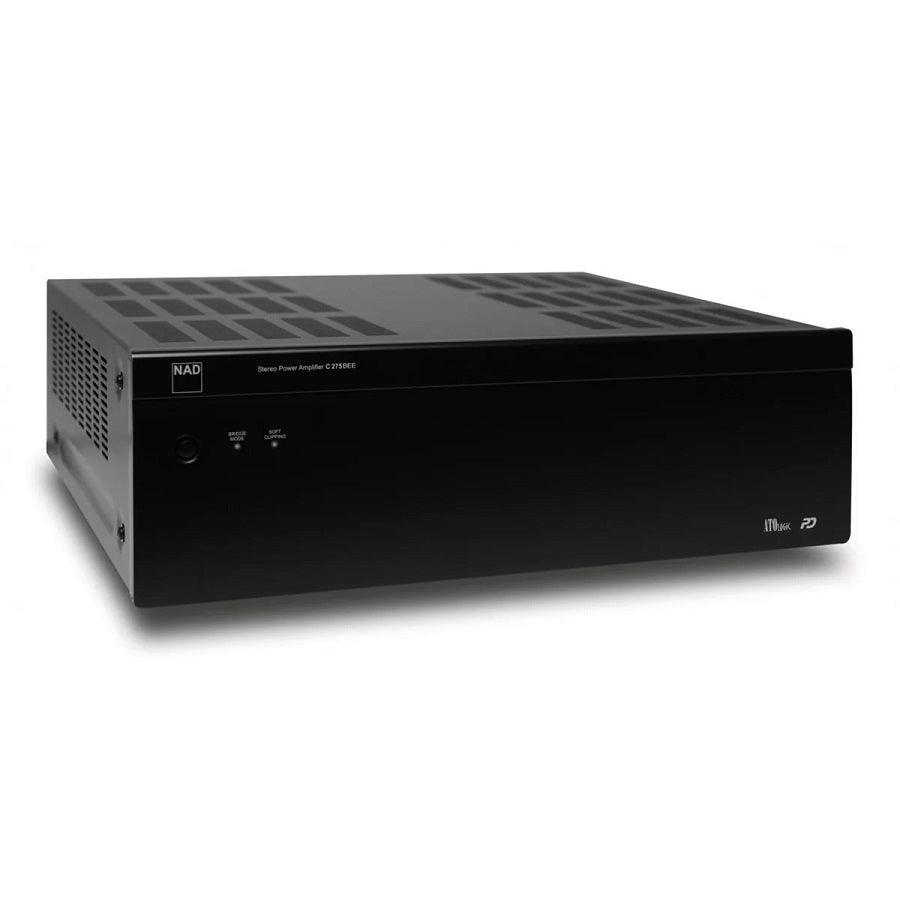

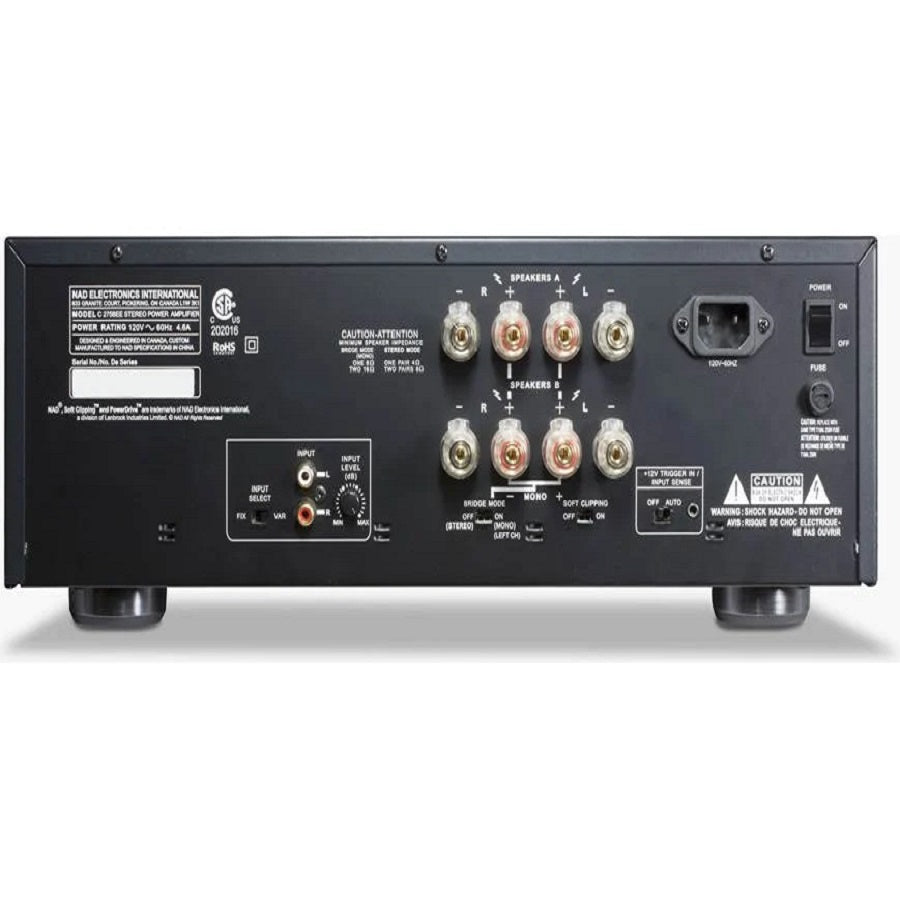

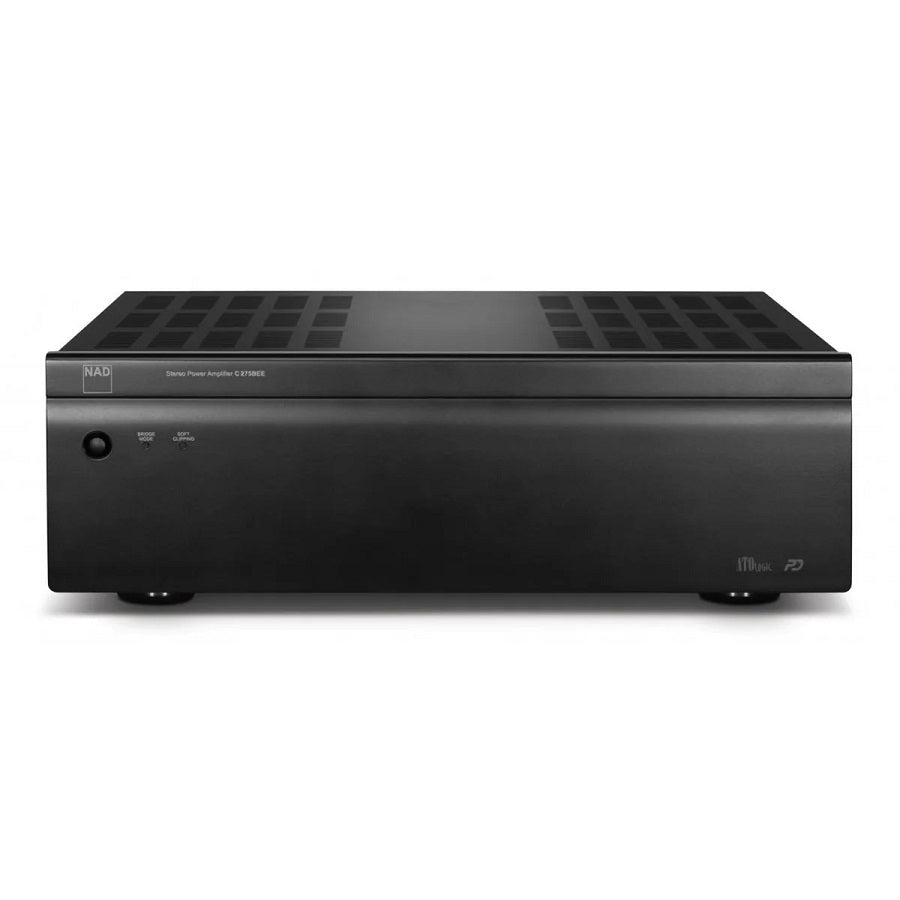

NAD C275BEE
STEREO POWER AMPLIFIER
*Product doesn't have a box but full quality check has been done. The unit is still in excellent working condition.
The C 275BEE is the perfect complement to NAD’s C 165BEE Preamplifier making a reference level of performance available for far less money
than previously possible. Attention to the most minute detail is evident everywhere, from the heavy gauge steel chassis to the sophisticated
power supplies and copper buss bars channeling almost absurd amounts of current to the custom gold plated speaker binding posts.
The C 275BEE boasts many upgrades and refinements taken directly from the highly acclaimed NAD Masters Series M3 Amplifier. These include
application of Bjorn Erik Edvardsen’s innovative and patented Distortion Canceling Circuit in the output stage and BEE Clamp in the power supply.
A carefully engineered PCB layout has reduced distortion and noise to unprecedented levels. Taken together, these improvements mark a sharp
upturn in performance that simply must be heard, to be fully appreciated!
SPECIFICATIONS:
| Continuous output power into 8 Ohm and 4 Ohm (both channels driven): | >150W (ref. rated THD, 20Hz – 20kHz) |
| Continuous output power into 8 Ohm (Mono, Bridge mode): | >330W (ref. 20Hz – 20kHz, (Mono, Bridge mode) <0.02% THD) |
| Rated THD (250mW to rated power, CCIF IMD, DIM 100): | <0.008% (ref. 20Hz – 20kHz) |
| Clipping power (4 Ohm and 8 Ohm): | >170W (ref. 1kHz 1% THD) |
| IHF Dynamic Power: |
250W at 8 Ohm
410W at 4 Ohm 600W at 2 Ohm |
| IHF dynamic power (Bridge mode): |
800W at 8 Ohm
1200W at 4 Ohm |
| Peak output current: | >50A (ref. 1 Ohm, 1ms) |
| Signal/Noise ratio: |
>102dB (A-weighted, ref. 1W)
>123dB (A-weighted, ref. 150W) |
| Damping factor: | >180 (ref. 8 Ohm, 50Hz and 1kHz) |
| Frequency response: |
±0.1dB (ref. 20Hz – 20kHz)
3Hz – 100kHz (ref. -3dB) |
| Input impedance (Fixed IN): | 10 kilohm + 200pF |
| Input impedance (Variable IN): | 100 kilohm + 100pF |
| Input Sensitivity: | 1.2V (ref. rated power) |
| Voltage gain: | 29dB |
| Minimum input level for AUTO TRIGGER: | 10mV at 1kHz |
| Time to power OFF at no signal in AUTO mode: | <10 minutes |
| Power Consumption: |
Normal Operation – 312W (ref. 230V AC 50Hz; 120V AC 60Hz)
Standby Power – <1W Idle Power – <100W |
| Net Dimensions (W x H x D): | 435 x 133 x 352mm |
| Gross Dimensions (W x H x D): | 435 x 150 x 396mm |
| Net weight: | 32.2 lbs (14.6 kg) |
| Shipping weight: | 37.3 lbs (16.9 kg) |
