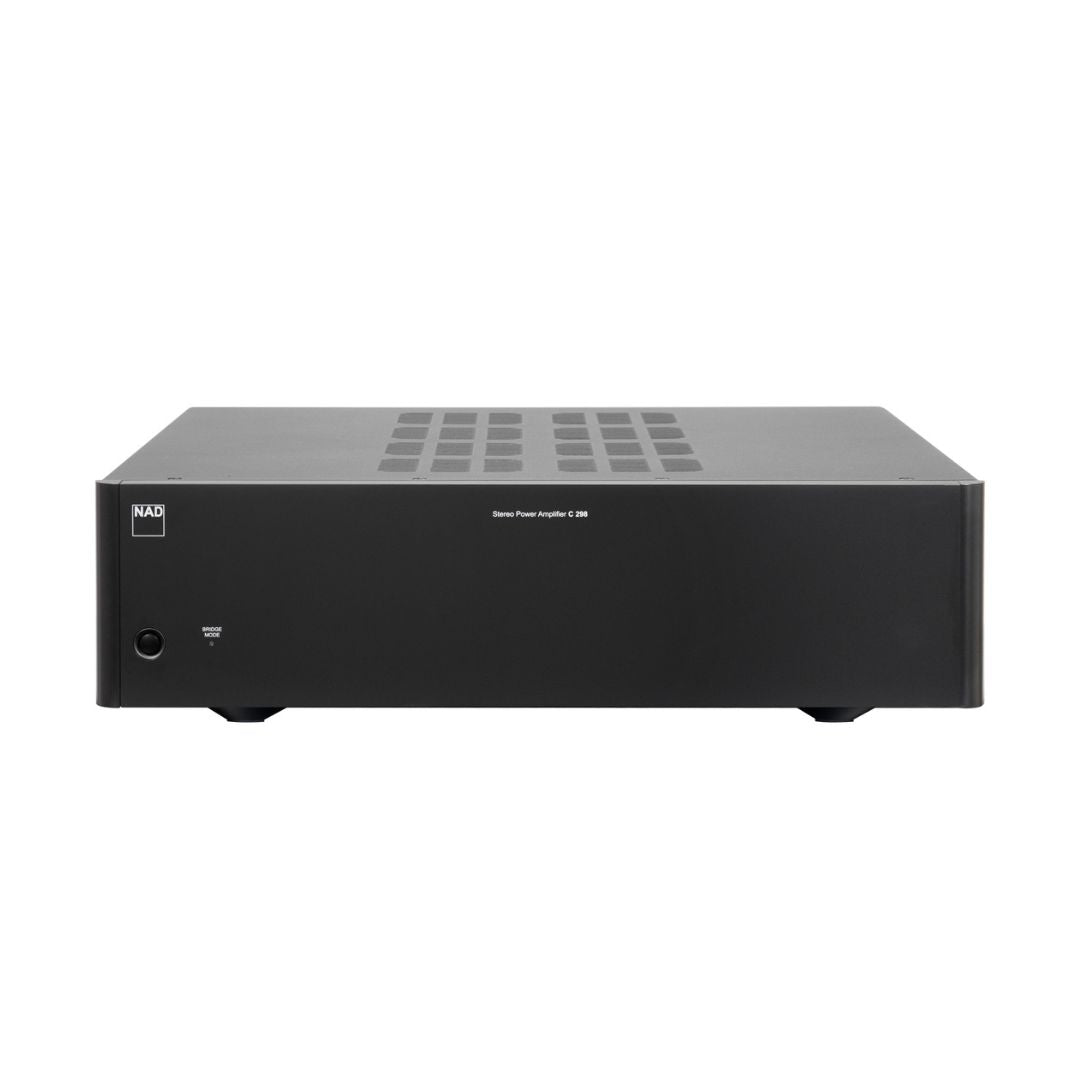

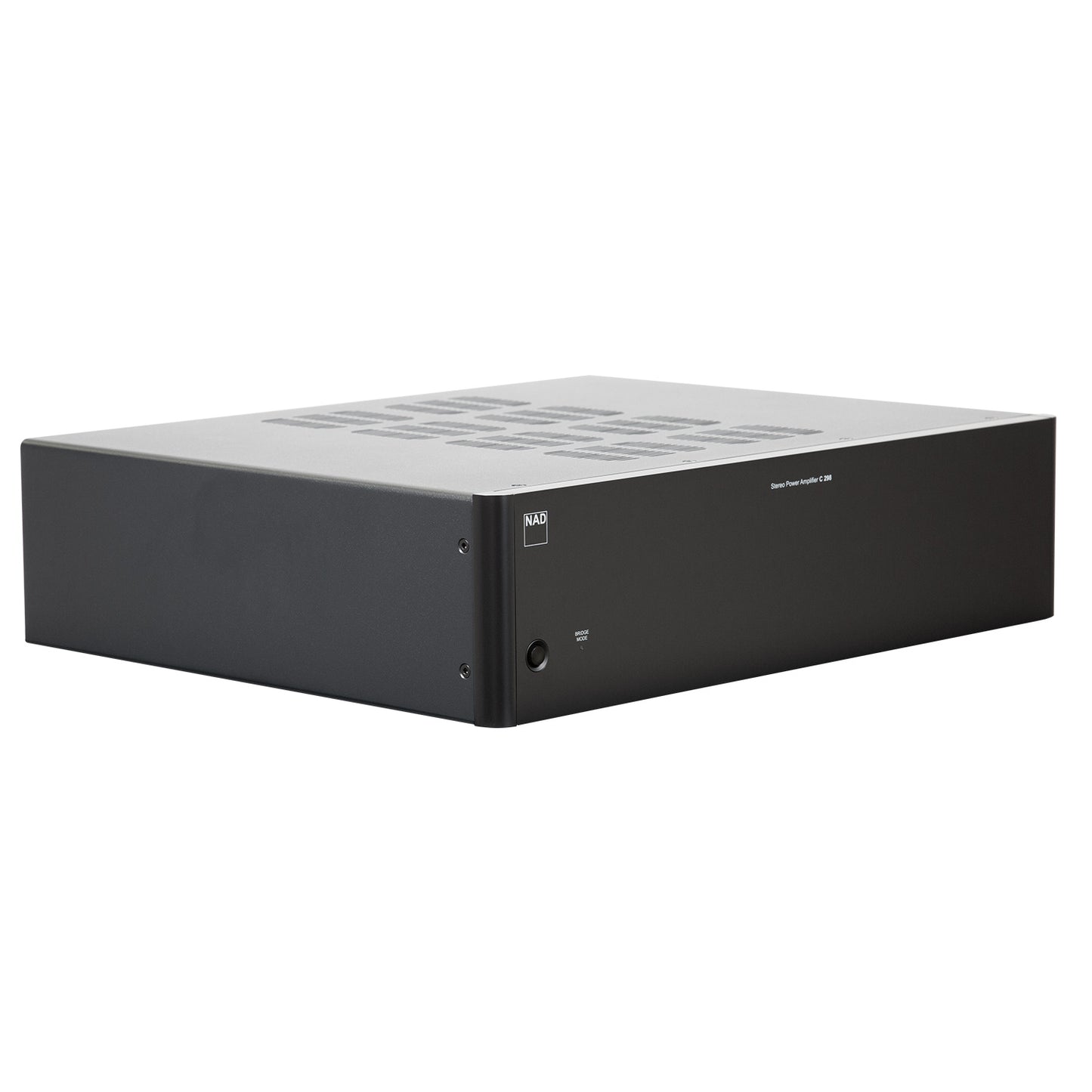

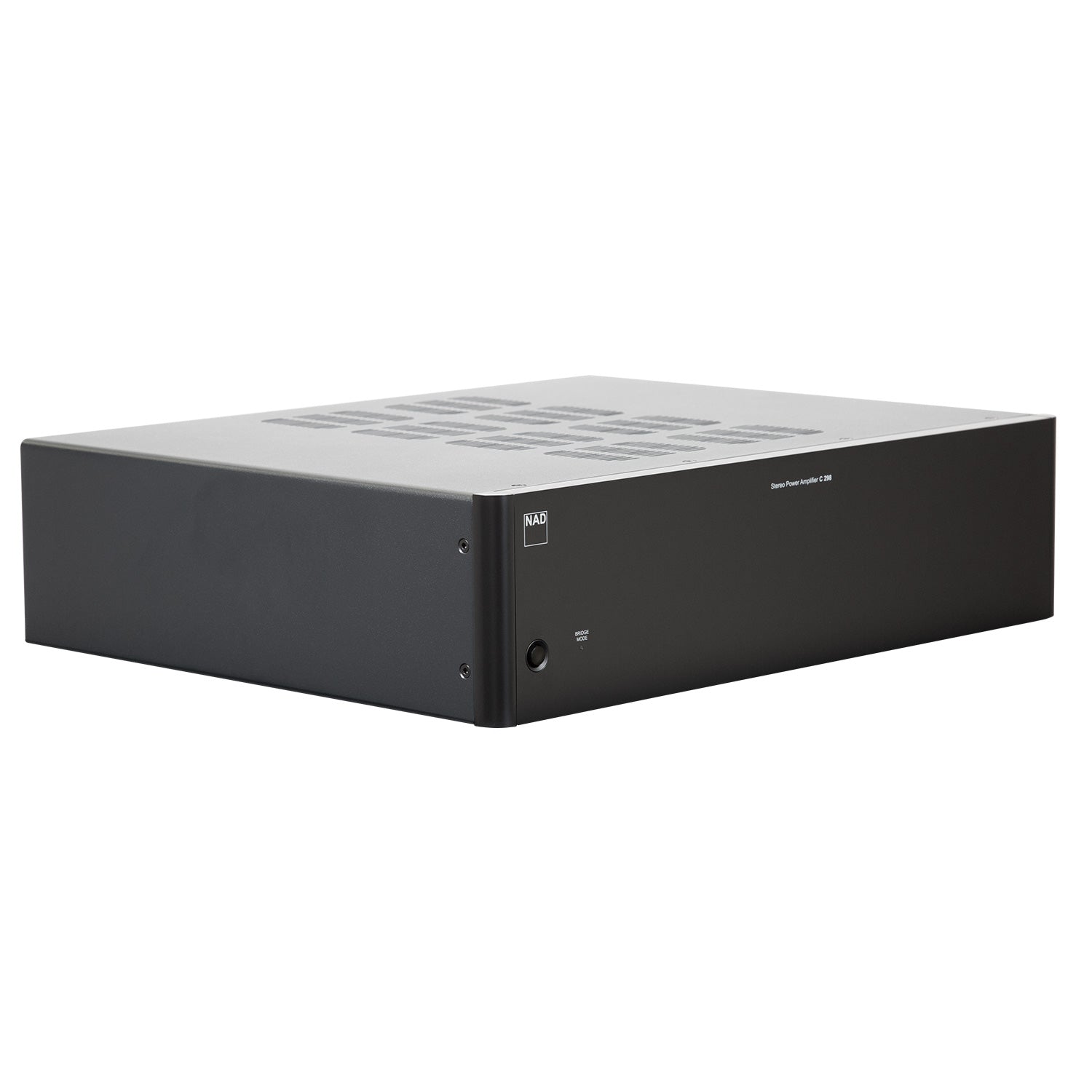

NAD C298

Stereo Power Amplifier

The NAD C 298 Stereo Power Amplifier is designed to deliver exceptional clarity and control for high-performance music systems. Built around Purifi Eigentakt™ amplification, it allows loudspeakers to perform with greater precision and ease across a wide range of volumes. The C 298’s performance has earned international recognition from hi-fi and mainstream press, reflecting both its engineering and musical results. Designed to partner naturally with components such as the NAD C 658 BluOS Streaming DAC, the C 298 provides a stable, transparent foundation for advanced two-channel systems.

Key Features:

  • Purifi Eigentakt™ amplifier technology for exceptionally low noise and distortion
  • 185 watts per channel of continuous power into 8 ohms
  • Bridgeable mono mode delivering up to 620 watts into 8 ohms
  • Stable performance with demanding loudspeaker loads

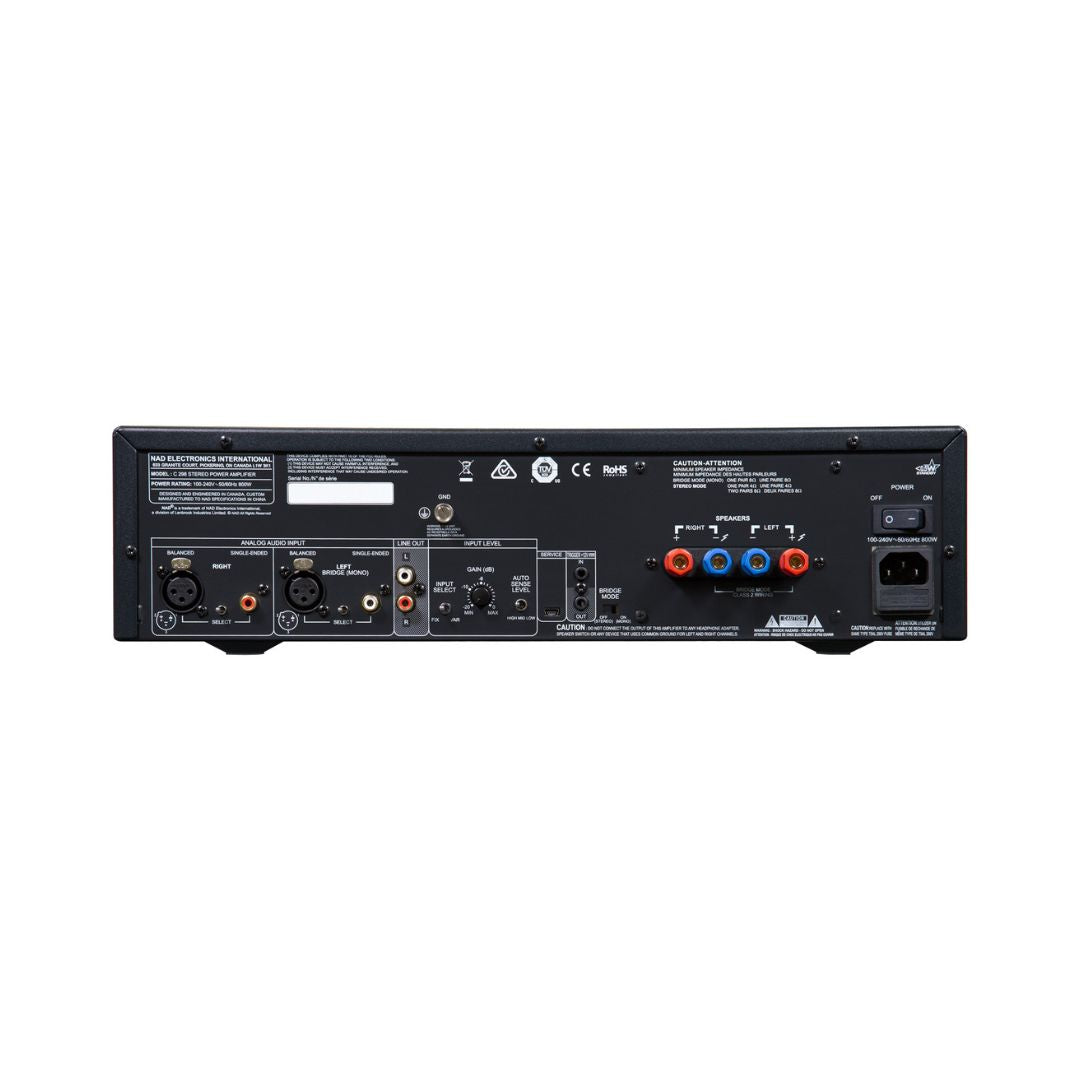

  • Balanced and single-ended analogue inputs for flexible system integration
  • Input level control for precise matching with preamplifiers and sources
  • Line output for daisy chaining additional amplifiers or system expansion
  • Auto turn-on with selectable signal-sensing threshold
  • 12V trigger input and output plus ground lug for use in complex systems
  • Award-winning design recognised by EISA and The Absolute Sound

Specifications:

THD (20 Hz – 20 kHz) <0.0005 % at 2V out
Signal-to-Noise Ratio >120 dB (IHF; 20 Hz – 20 kHz, ref. 2V out)
Channel separation >110 dB (1 kHz) >100 dB (10 kHz)
Input impedance (R and C) Single-ended: 56 kohms + 280 pF Balanced: 56 kohms +280 pF
Maximum input signal >7.0 Vrms (ref. 0.1 % THD)
Output impedance 390 ohms
Frequency response ±0.1 dB (20 Hz - 20 kHz)
Maximum voltage output -IHF load ≥>7.0 V (ref. 0.1 % THD)
Rated output power into 8 Ohms and 4 ohms (Stereo mode, ref. 20 Hz-20 kHz at rated THD, both channels driven) 185 W at 8 ohms 340 W at 4 ohms
Rated output power into 8 Ohms (Bridge mode, ref. 20 Hz-20 kHz at rated THD, both channels driven) 620 W at 8 ohms
THD (20 Hz – 20 kHz) <0.005 % (1 W to 185 W, 8 ohms and 4 ohms)
Signal-to-Noise Ratio >98 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms) >120 dB (A-weighted, ref. 185 W out in 8 ohms)
Clipping power (Stereo mode, at 1 kHz 0.1 % THD) >200 W
Clipping power (Bridge mode, at 1 kHz 0.1 % THD) >690 W
IHF dynamic power (Stereo mode, at 1 kHz 1 % THD) 8 ohms: 260 W 4 ohms: 490 W 2 ohms: 570 W
IHF dynamic power (Bridge mode, at 1 kHz 1 % THD) 8 ohms: 1000 W 4 ohms: 1100 W
Peak output current >25 A (in 1 ohm, 1 ms)
Damping Factor >800 (ref. 8 ohms 20 Hz – 6.5 kHz)
Frequency response ±0.2 dB (20 Hz - 20 kHz) -3 dB at 60 kHz
Channel separation >100 dB (1 kHz) >80 dB (10 kHz)
Stereo Mode input sensitivity (for 185 W in 8 ohms) Fixed Gain mode: 1.43 V
Stereo Mode Gain Fixed Gain mode: 28.6 dB
Line In – Balanced and Single-ended Variable Gain mode: 8.5 dB – 28.5 dB
Bridge Mode Sensitivity Fixed Gain mode: 3.78 V for 620 W in 8 ohms
Line In – Balanced and Single-ended Variable Gain mode at maximum: 1.41 V for 620 W in 8 ohms
Bridge Mode Gain Fixed Gain mode: 25.4 dB
Line In – Balanced and Single-ended Variable Gain mode: 14.5 dB – 34.5 dB
Standby power <0.5 W
Gross dimensions (W x H x D) 435 x 120 x 390 mm
Net weight 11.2 kg
Shipping weight 13.6 kg
