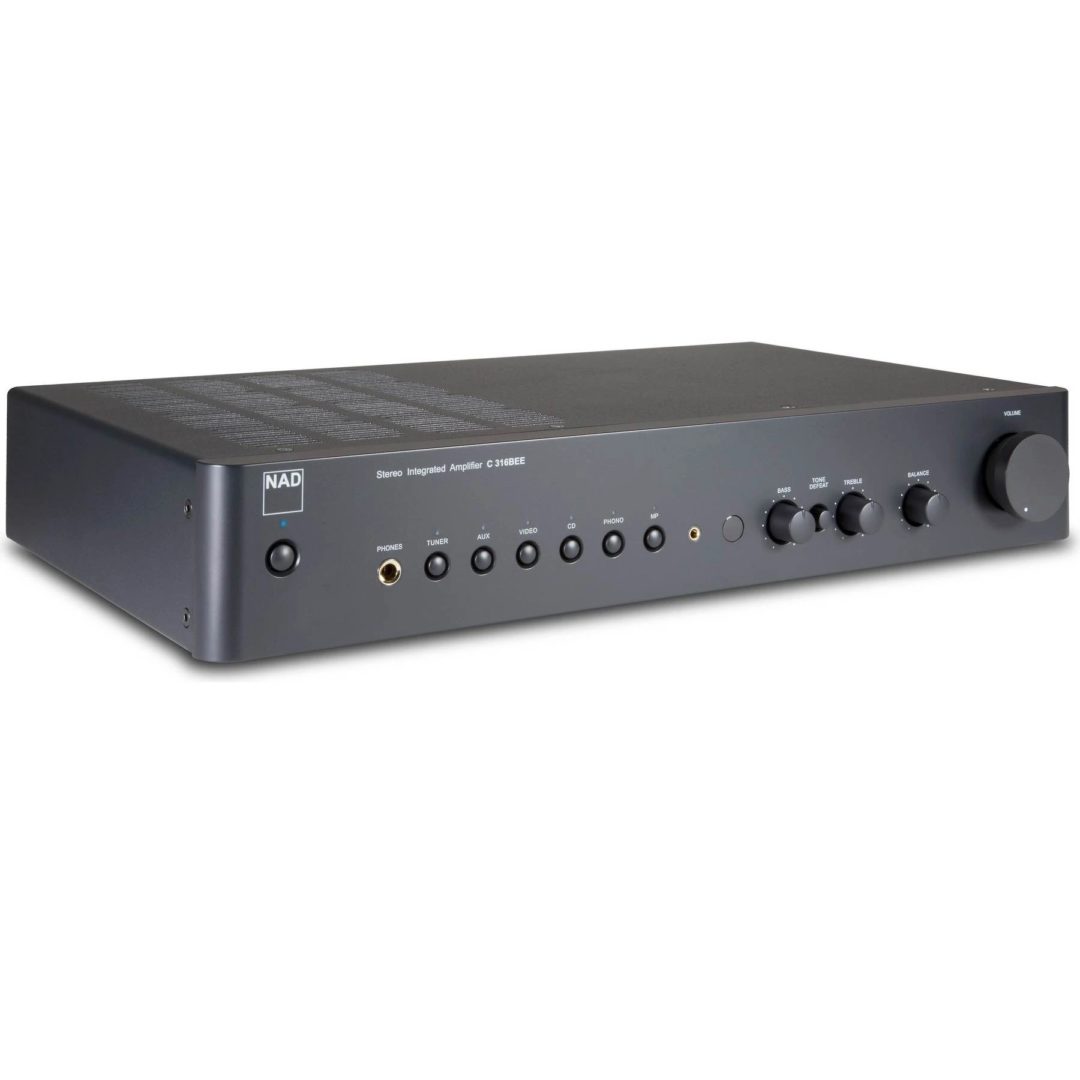

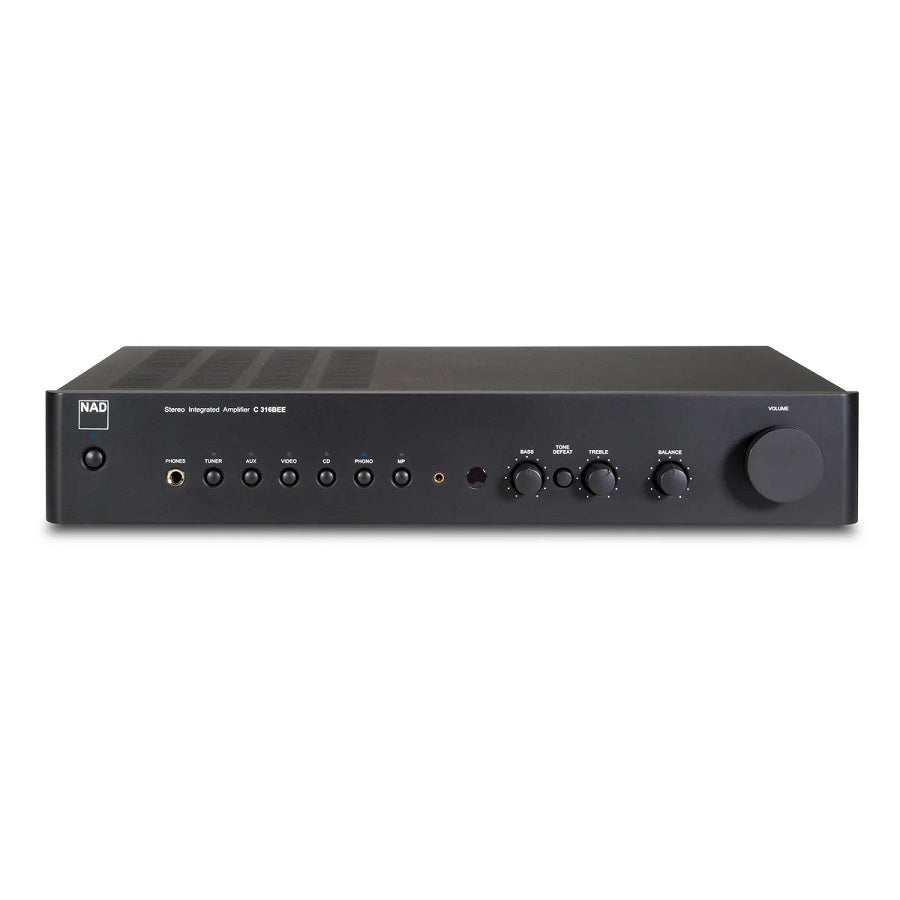

NAD C316BEE V2

Stereo Integrated Amplifier

The NAD C 316BEE V2 Stereo Integrated Amplifier is designed for listeners who want outstanding musical performance in a simple, affordable system. Built around NAD’s proven PowerDrive technology, it delivers confident, dynamic sound that brings life and energy to your music. A high-quality MM phono stage makes it an ideal partner for turntables, while its analogue-focused design keeps listening engaging and direct. Compact, refined, and purpose-built, the C 316BEE V2 offers a rewarding listening experience that exceeds expectations.

Key Features:

  • 40 Watts per channel of continuous power with high dynamic headroom
  • PowerDrive technology for stable performance with real-world loudspeaker loads
  • High-quality MM phono input with accurate RIAA equalisation
  • Five line-level analogue inputs for flexible source connection
  • Front-panel input for portable audio devices
  • Dedicated headphone output for private listening
  • Bass and treble controls with defeatable tone circuit
  • Heavy-duty toroidal power transformer and discrete output devices
  • Full-function IR remote control
  • Low standby power consumption of less than 0.5 W

Specifications:

Line In / Headphone Out
THD (20 Hz – 20 kHz) <0.03 % in 300 ohms at 2 V out
Signal-to-Noise Ratio >100 dB (A-weighted, 32 ohms, ref. 2V out, unity gain)
Frequency response ±0.3 dB (20 Hz - 20 kHz)
Output impedance 8 ohms
Line In / Speaker Out
Continuous output power into 8 ohms and 4 ohms THD (20 Hz – 20 kHz)
Signal-to-Noise Ratio >95 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms) >97 dB (A-weighted, 500 mV input, unity gain in 32 ohms)
Clipping power (at 1 kHz 0.1 % THD) >45 W in 8 ohms >60 W in 4 ohms
IHF dynamic power 8 ohms: 90 W 4 ohms: 120 W 2 ohms: 170 W
Damping factor >200 (ref. 8 ohms, 1 kHz)
Frequency response ±0.3 dB (20 Hz - 20 kHz, Tone Defeat ON) Treble: ± 5dB at 10 kHz Bass: ± 8 dB at 100 Hz
Channel separation >70 dB (1 kHz)
Maximum input level 4.3V (1 kHz THD 0.1%)
Input sensitivity (for 40 W in 8 ohms) 200 mV
Standby power <0.5 W
Phono In / Speaker Out
THD (20 Hz – 20 kHz) <0.03 % (1 W to 40 W, 8 ohms and 4 ohms)
Signal-to-Noise Ratio >75 dB with IHF MM cartridge (A-weighted, ref. 5mV input 1 kHz and 1W output in 8 ohms)
Frequency response (RIAA deviation) +0.3 dB (20 Hz - 20 kHz, Tone Defeat ON)
Maximum input level 71 mV (1 kHz THD 0.1%)
Input sensitivity (for 40 W in 8 ohms 2.95 mV
Dimensions and weight
Gross dimensions (W x H x D) 435 x 90 x 285 mm
Net weight 5.5kg
Shipping weight 6.4kg
