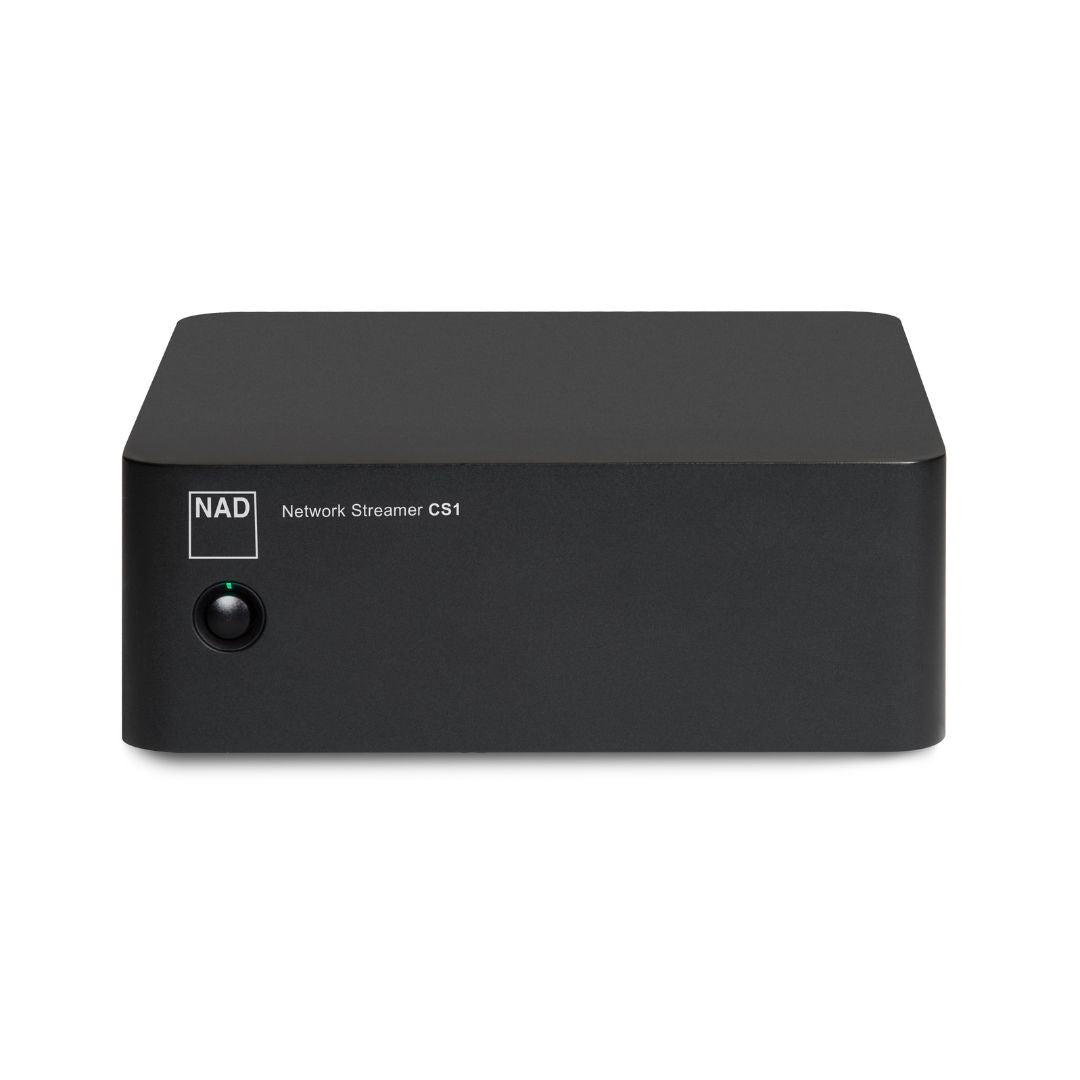

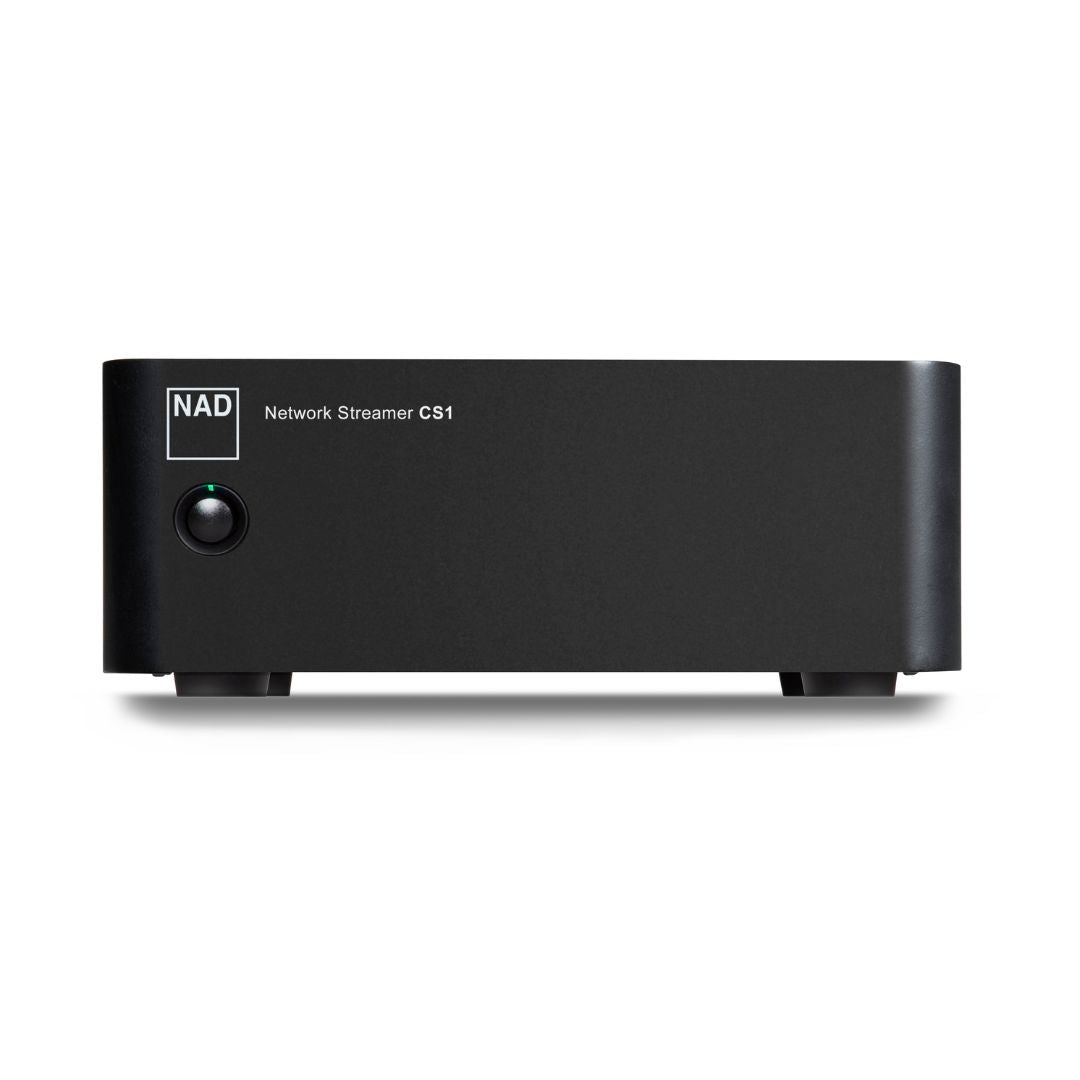

NAD CS1
Endpoint Network Streamer
The NAD CS1 Endpoint Network Streamer brings modern music streaming to your existing hi-fi system, AV receiver, or powered speakers. Designed for listeners who value musical performance as much as convenience, the CS1 easily connects to your component of choice and lets you play music directly from the apps you already use. Carefully engineered digital circuitry ensures a more open and natural presentation that allows your system to perform at its best. Compact, affordable, and easy to integrate, the CS1 is a meaningful upgrade that enhances both your system and your everyday listening experience.
Key Features:
- Network music streamer designed to add streaming capability to existing hi-fi systems
- Support for Apple AirPlay 2, Google Cast, Spotify Connect, Tidal Connect, Qobuz Connect, DLNA, and Roon
- App-based playback control using supported third-party music applications
- High-resolution audio support up to 24-bit/192kHz
- Differential digital architecture for low noise and wide dynamic range
- Stereo analogue RCA outputs for connection to amplifiers or powered speakers
- Optical and coaxial digital outputs for connection to AV receivers or external DACs
- Dual-band Wi-Fi and Ethernet connectivity for reliable network performance
- Built-in Bluetooth for direct wireless playback from compatible devices
- Compact design with minimalist enclosure

Specifications:
| Audio | |
| THD + N (20 Hz – 20 kHz) | <0.03% 20-20 kHz -1dBFS output |
| Signal-to-Noise Ratio | -94dB (ref 2V) |
| Frequency response | 20-20 kHz +/-0.3dB; 50 kHz -3dB |
| Native sampling rate | Up to 192 kHz |
| Bit depth | 16 - 24 |
| Supported audio file format | LPCM, MP3, AC3, Ogg Vorbis, HE-AAC, MQA & WMA decode capability |
| Supported 3rd party service provider | Spotify Connect (also support for Spotify Lossless), Tidal Connect, Qobuz Connect, Apple AirPlay 2, Google Chromecast, DLNA, Roon |
| DAC | TI PCM5142 |
| Processor | ARM® Cortex™ -A53, Quad-Core, 1.5GHz per core |

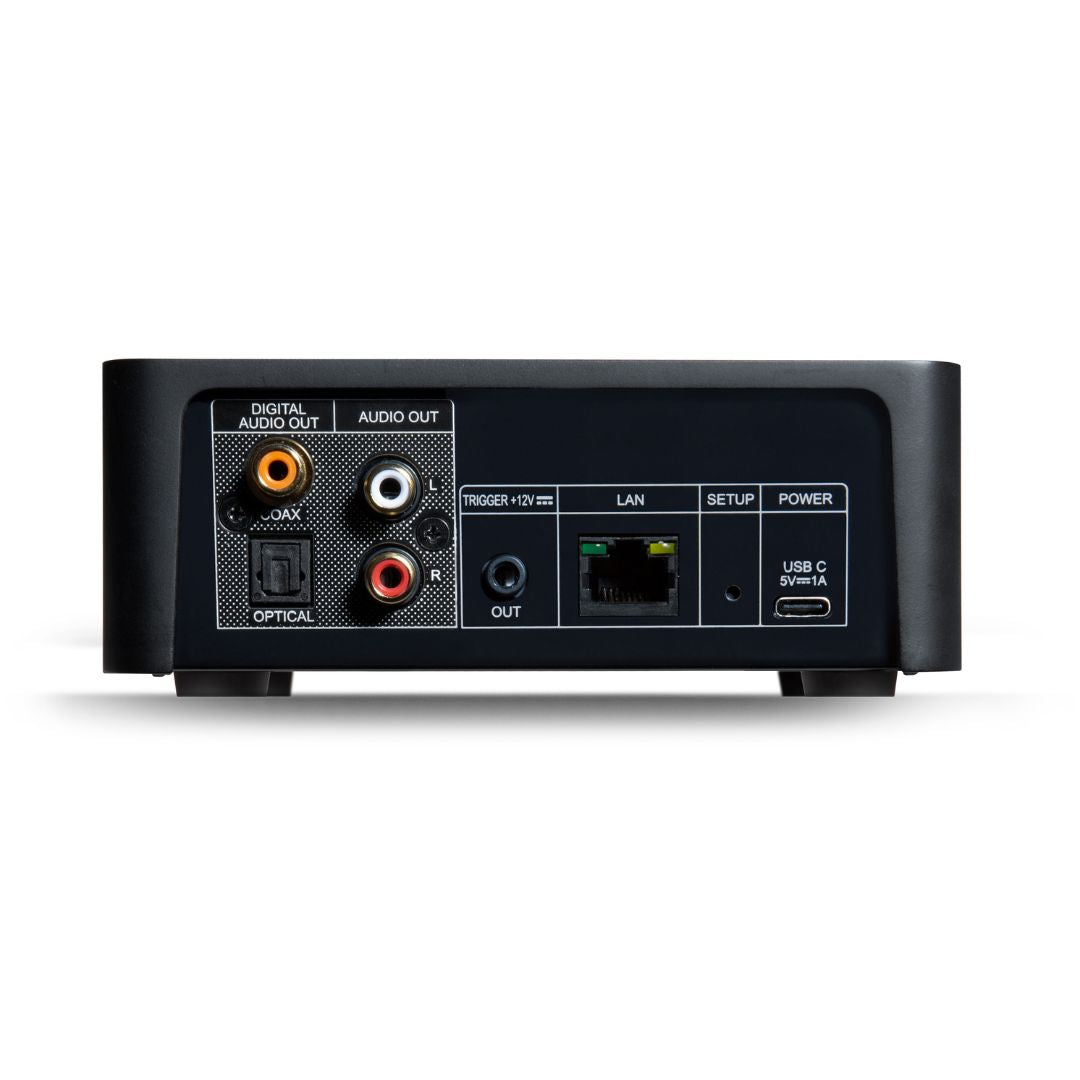

| Connections | |
| Power | AC adapter Input: 100-240V AC 0.3A Output: 5V DC 1A |
| Network connectivity | Ethernet RJ45 100 Mbps Wi-Fi 5 (802.11ac 2.4GHz/5 GHz) DLNA/UPnp* |
| Bluetooth | Bluetooth 5.2 BT Profiles: A2DP 1.2, AVRCP 1.3, SPP, HFP, HSP, HOGP |
| NFC | NFC for easy Bluetooth connection |
| 12V Trigger Out | 3.5mm Mini-jack x 1 |
| Analog Out | RCA x 1 |
| Coaxial Out | RCA 75 ohms |
| Optical Out | TOSLINK x 1 |
| USB IN | USB-C for AC adapter |
| General | |
| Status Indicator | Front Panel LED |
| Function Button | Front Panel Function Button |
| Power Consumption | 0.5W Network Standby |
| Dimensions and weight | |
| Gross dimensions (W x H x D)** | 140 x 140 x 55 mm |
| Net Weight | 1.5kg |
| Shipping Weight | 1.7kg |
