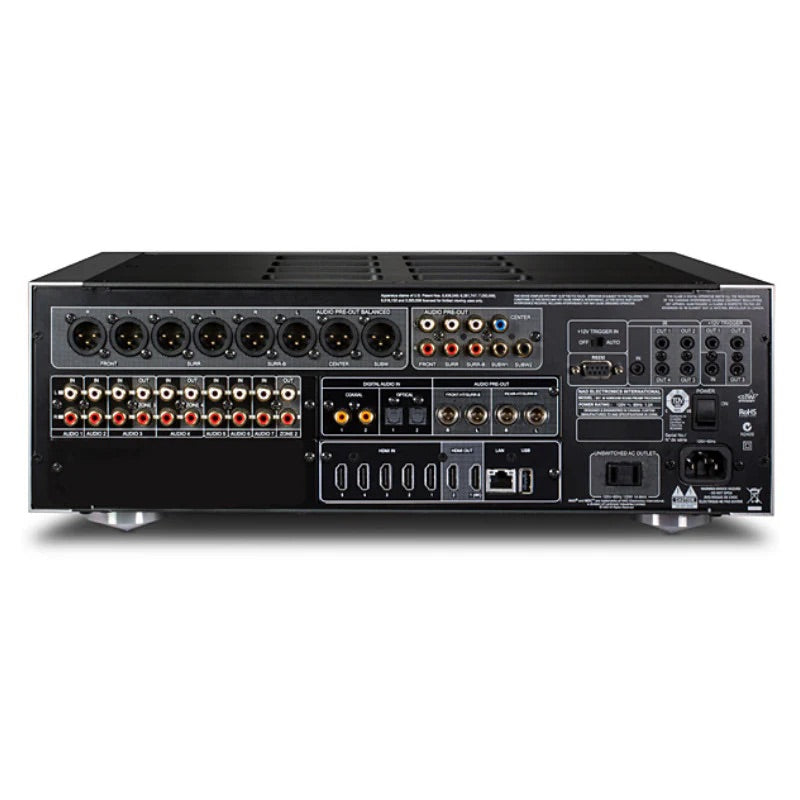

NAD M17 V2i

Surround Sound Preamp Processor

The NAD M17 V2i Surround Sound Preamp Processor is designed to bring high-performance audio principles to multi-channel systems. Combining advanced surround processing, high-resolution streaming, and room correction within a modular platform, it allows both film and music to be reproduced with clarity and balance. With support for formats such as Dolby Atmos and DTS:X, alongside BluOS streaming and Dirac Live Room Correction (Includes Dirac Live® Full Bandwidth licence and calibration microphone for full-range room correction), the M17 V2i maintains a consistent, natural presentation across all channels, making it a flexible foundation for systems that prioritise sound quality as much as capability.

  • Modular Design Construction (MDC) supports hardware upgrades as formats and technologies evolve.
  • Includes Dirac Live® Full Bandwidth licence and calibration microphone for full-range room correction
  • Dolby Atmos® and DTS:X™ support for multi-dimensional surround sound
  • 11.1 balanced XLR outputs for low-noise, high-performance multi-channel systems
  • BluOS® streaming with support for high-resolution audio and multi-room playback
  • 4K UHD video pass-through with HDR and HDCP support
  • Smart integration with 12V triggers and RS-232 for control systems
  • Flexible surround and stereo performance across multiple configurations

Specifications:

Connections
HDMI Up to 4K UHD
Coaxial 0.5 Vpp
Ethernet RJ45 10/100/1000 Ethernet
Input Impedance (R and C) 56kΩ + 220pF
Input Sensitivity 40mV (ref. 500mV out)
Maximum Input Signal >8Vrms
Signal/Noise Ratio, A-weighted >90dB (ref. 500mV in, 500mV out, volume set to unity gain)
Channel Separation >70dB (ref. 1kHz / 10kHz)
Frequency Response ±0.3dB (ref. 20Hz - 20kHz, Tone Active)
Frequency Response (subwoofer out) 10 - 200Hz (ref. -3dB)
Output
Maximum output level >8 Vrms into 600 Ω
THD (CCIF IMD, DIM 100) <0.005% (ref. 20 Hz - 20 kHz, 2 V out)
Output impedance <100Ω
Maximum output level >4 Vrms into 600 Ω
THD (CCIF IMD, DIM 100) <0.005% (ref. 20 Hz - 20 kHz, 2 V out)
Output impedance <100Ω
Treble ±10dB at 10kHz (ref. 2V in, 2V out)
Bass ±10dB at 100Hz (ref. 2V in, 2V out)
General
Standby power <0.5W
Dimensions and weight
Unit Dimension (WxHxD) - Gross* 435 x 156 x 386mm
Net Weight 10.9kg
Shipping Weight 17.5kg
