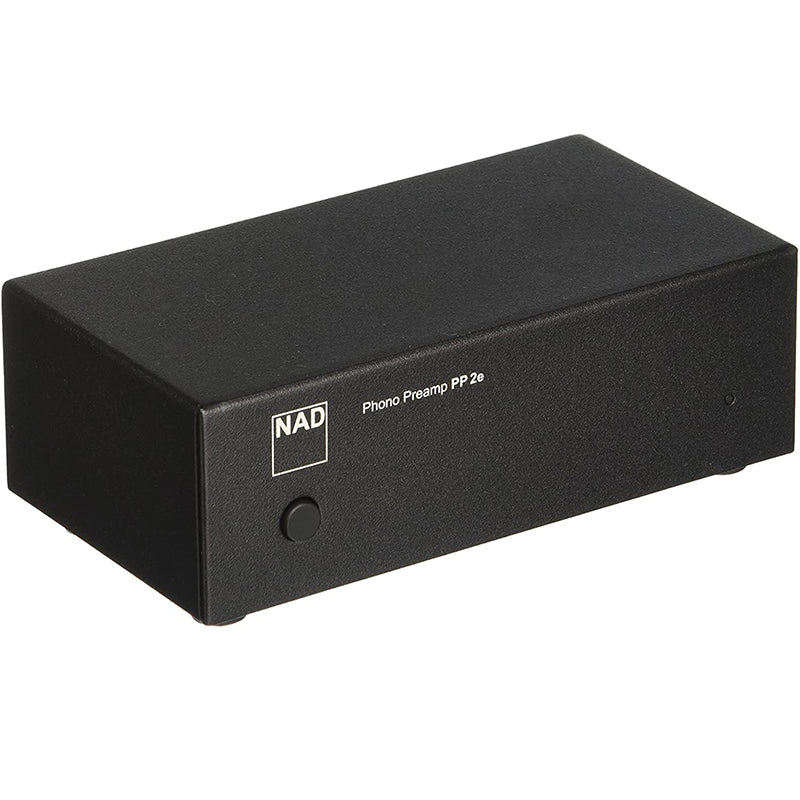

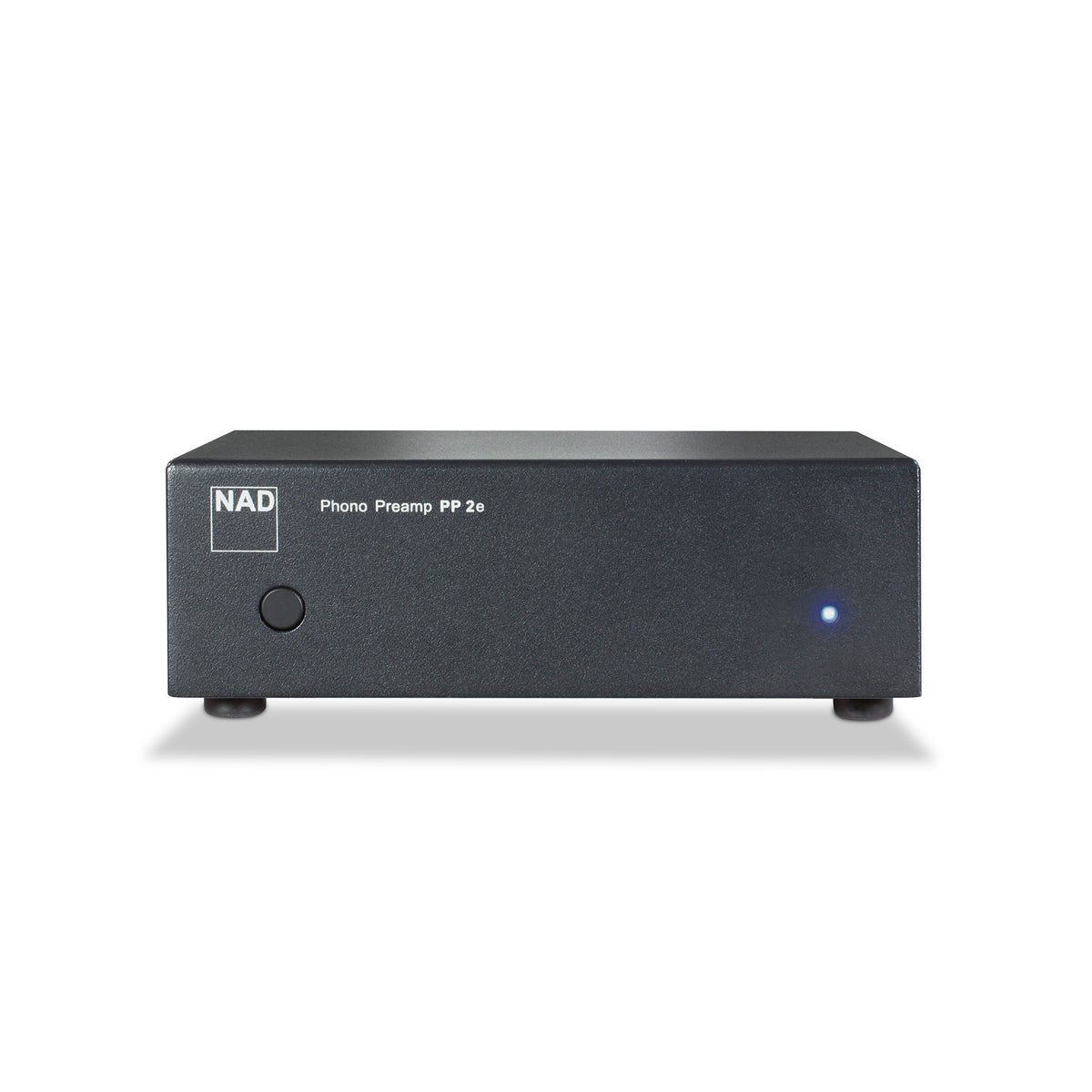

NAD PP2e
Phono Preamplifier
The NAD PP 2e Phono Preamplifier delivers low-noise and wide-band amplification for MM and MC cartridges, helping records sound open and detailed. Its carefully engineered RIAA stage supports a well-balanced presentation across diverse pressings, bringing greater clarity to systems with basic or absent phono inputs. An external 24-volt supply helps maintain stable performance, while gold-plated sockets ensure reliable long-term connection to your turntable and amplifier. With Auto Power Down and a compact footprint, the PP 2e offers a simple, musical upgrade to any vinyl system.
Key Features:
- Low-noise, wide-band phono stage for clear vinyl playback
- Supports MM and MC cartridges for broad turntable compatibility
- Precision RIAA equalisation for accurate tonal balance
- External 24-volt power supply for stable, quiet operation

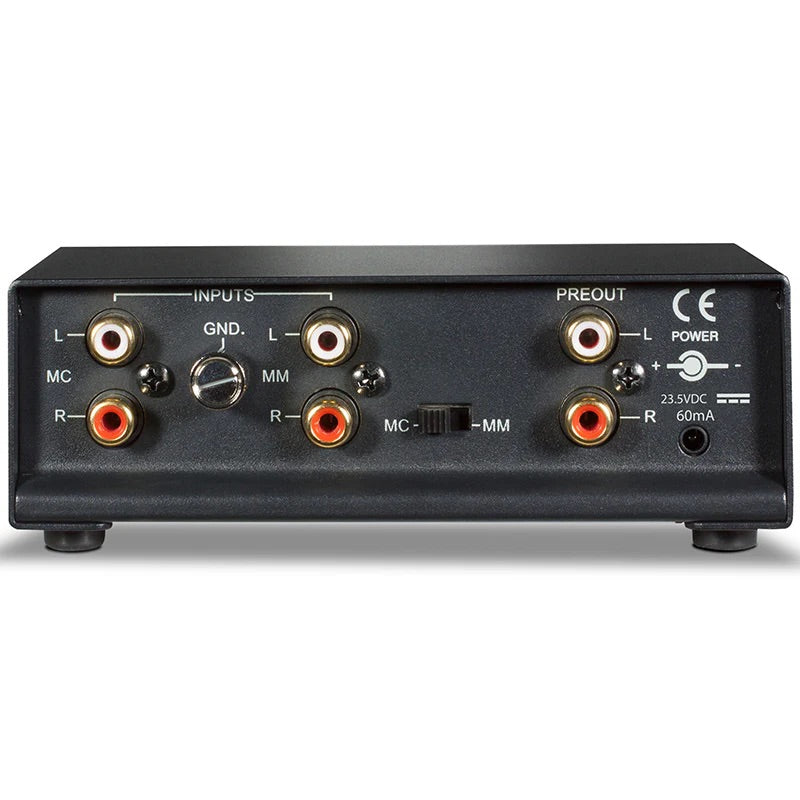

- Gold-plated input sockets for reliable signal transfer
- Compact design suitable for modern hi-fi setups
- Auto Power Down feature for energy-efficient use
- Line-level output for easy integration with amplifiers and receivers
- High-quality components used throughout the signal path
- LED power indicator for simple operational status

Specifications:
| MC | |
| Input Impedance (R and C) | 100 Ohm + 180pF |
| Gain at 1kHz | 60dB |
| Input Sensitivity (ref. 200mV output) | 0.3mV |
| Signal to Noise Ratio | 78dB (A weighted, with cartridge connected) |
| Input Overload (20Hz/1kHz/20kHz) | 0.8/9/84mV |
| Rated Distortion (THD 20Hz - 20kHz) | <0.03% |
| RIAA Response Accuracy | ±0.3dB |
| MM | |
| Input Impedance (R and C) | 47 kilohm + 200pF |
| Gain at 1kHz | 35dB |
| Input sensitivity (ref. 200mV output) | 2.5mV |
| Signal to Noise Ratio | 80dB (A weighted, with cartridge connected) |
| Input overload (20Hz/1kHz/20kHz) | 10/102/950mV |
| Rated Distortion (THD 20Hz - 20kHz) | <0.03% |
| RIAA response accuracy | ±0.3dB |
| Line Out | |
| Output Impedance | 100 Ohm |
| Maximum Output Level | 5.3V |
| Dimensions | |
| Dimensions excl. Power supply (W x H x D) | 135 x 49 x 72mm |
