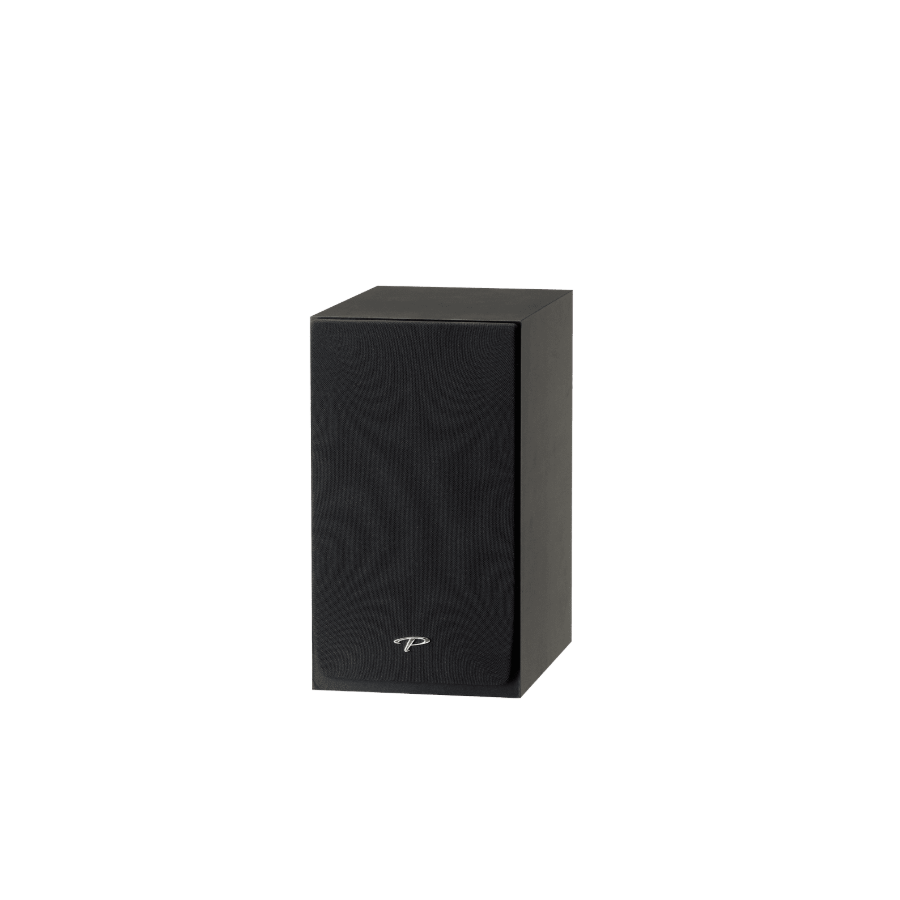

Paradigm Monitor SE Atom

2-driver, 2-way bass reflex, bookshelf

Realism in Audio:

Imagine lifelike musical performance in any listening space; breathtaking effects and realistic imaging details that bring your movies to life.

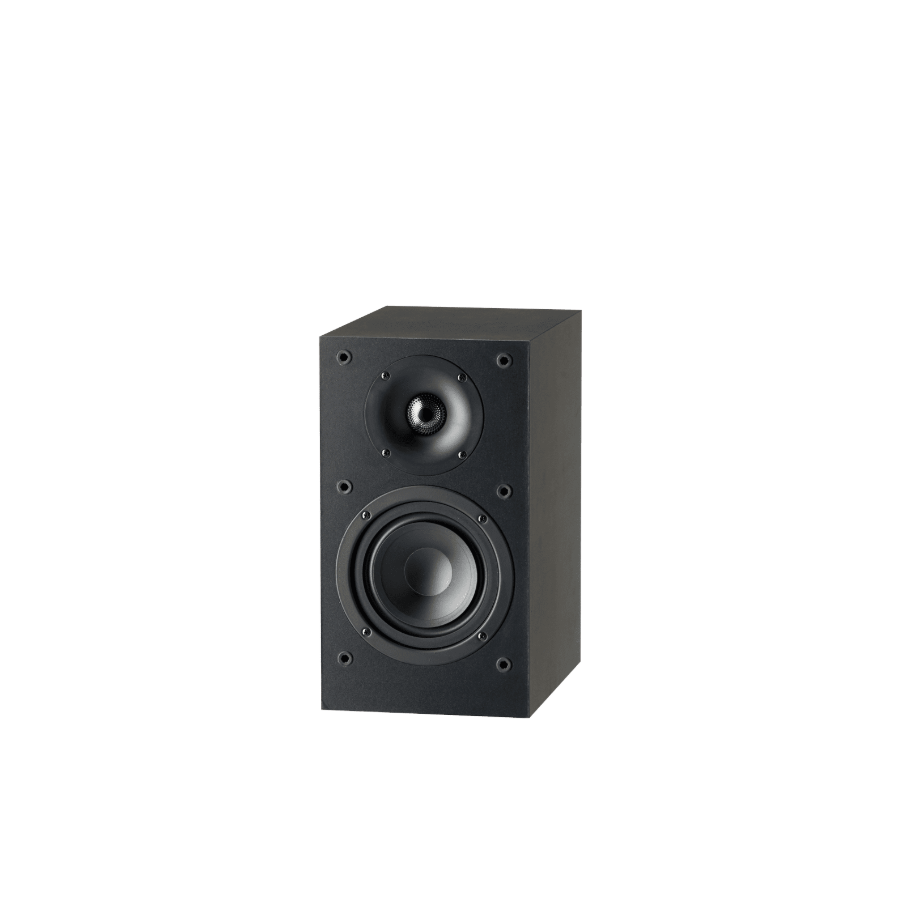

Tweeter:

X-PAL™ Pure-Aluminum Dome Tweeters with patented† Perforated Phase-Aligning (PPA™) Lens. This exclusive design acts as a refined phase plug, blocking a wide range of out-of-phase frequencies which increases and smooths output without coloring the sound.

Both visually stunning and functional, our signature PPA Lens technology improves performance while also protecting the tweeter from getting damaged.

Bass/Midrange:

High-performance mineral-filled polypropylene cones with inverted dust caps are lightweight and rigid. Downroll surrounds give them a clean, low-profile look.

Enclosure:

Beautiful Monitor SE speaker cabinets, with their unmistakably European fit and finish, complement today’s most stylish décor.

Specifications:

DESIGN	2-driver, 2-way bass reflex, bookshelf
CROSSOVER	2nd-order electro-acoustic at 2.3 kHz
HIGH FREQUENCY DRIVER	1” (25mm) X-PAL™ dome, ferro-fluid damped / cooled, Perforated Phase-Aligning Tweeter (PPA™) Lens
FREQUENCY RESPONSE ON-AXIS	±3dB from 61 Hz - 21 kHz
FREQUENCY RESPONSE 30° OFF-AXIS	±3dB from 55 Hz - 17 kHz
MID/BASS FREQUENCY DRIVER	5-1/2” (140mm) mineral-filled polypropylene cone / inverted dust cap / downroll surround
SENSITIVITY ROOM / ANECHOIC	89 dB / 86 dB
LOW FREQUENCY EXTENSION	45 Hz (DIN)
SUITABLE AMPLIFIER POWER RANGE	15 - 100 watts
MAXIMUM INPUT POWER	50 watts
IMPEDANCE	Compatible with 8 ohms
DIMENSIONS HXWXD	12.75" × 7.125 × 11" (32cm × 18 × 27cm)
WEIGHT	12 lbs. (5.4 kg)
