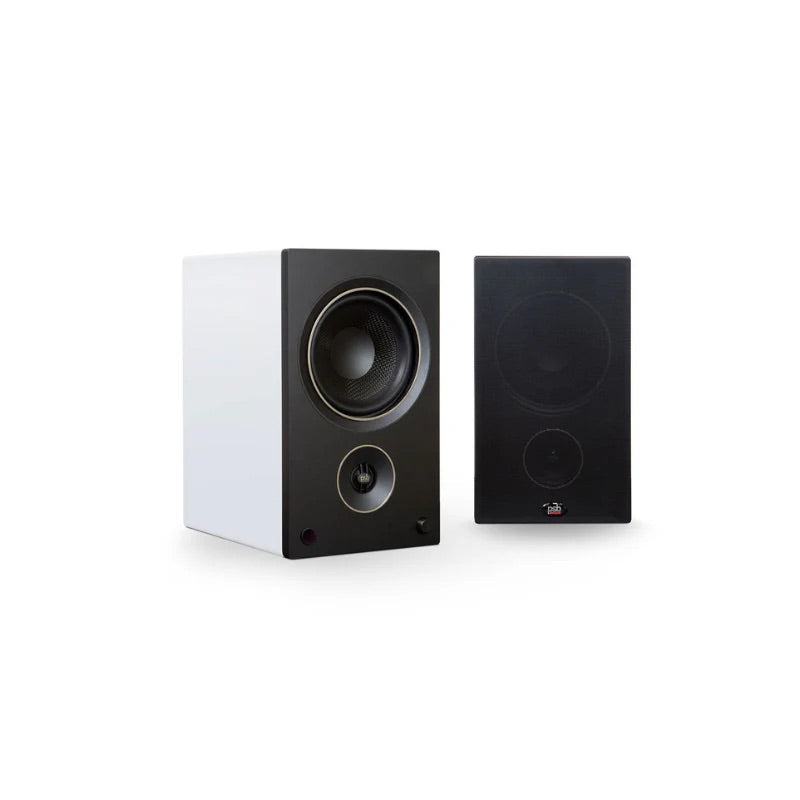

PSB Alpha AM5

Powered Bookshelf Speakers

Award-winning PSB Sound Taken To a New Level

Building on PSB's almost 50 years of award-winning speaker design expertise, the Alpha
AM5 compact, powered speakers deliver a natural, detailed sound with precision and less
distortion. While the Alphas quickly rose to be one of the world’s most iconic speakers
and to this day are still the reference benchmark for entry-level hi-fi speakers, today's
Alphas combine rare musicality and exceptional value with the latest cutting-edge
technologies.

Versatile Design

The Alpha AM5 active monitor is effortless to setup and use. There's no amplifier to hook
up or apps to download. Stream and listen to your favourite music with aptX™ Bluetooth
from your mobile devices - simply pair and play. Connect to your computer or TV for
crystal clear, natural sound. The AM5 even features several sound modes allowing you to
accentuate dialogue, soundstage and more. Vinyl lovers will appreciate the dedicated
RCA phono input. Where desired, use the sub output to add a subwoofer for even deeper
bass. The Alpha AM5's flexible design make it perfectly suited for desktop, bookshelf or
stand mount placement and can fill your room with impressive sound.

Matched Components / Unmatched Performance

Leveraging amplification expertise from our sister brands provided the PSB design team
the considerable advantage of designing a speaker for a known 35W x 2 amplifier. By
adding the power of digital signal processing, frequency response, bass extension and
output are optimized to a remarkable level of performance. Exceptionally few powered
speakers share intellectual resources of this magnitude, making the Alpha AM5 a
standout in the crowd of powered speakers. A renowned amplifier company and speaker
company perfecting the powered speaker is truly a match made in acoustic heaven.

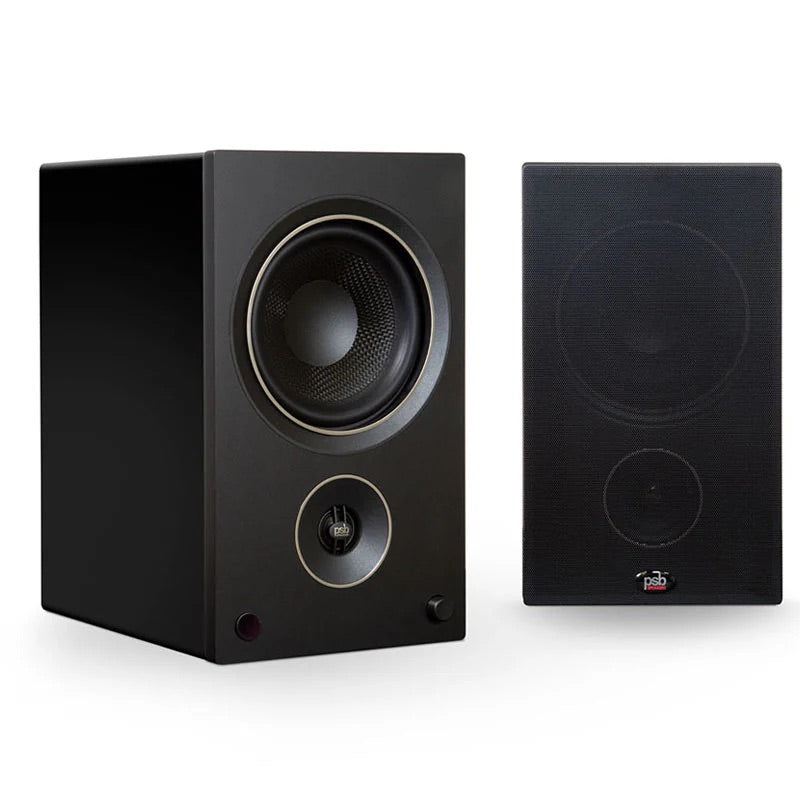

Featuring acoustically-transparent detachable magnetic grilles in a choice of Matte Black
or Matte White finish to seamlessly blend into any décor, the Alpha AM5 combines
simplicity of setup and operation with source and placement versatility. Don't let its
compact size fool you - the Alpha AM5 with powerful, rich detailed sound punches well
above its weight.

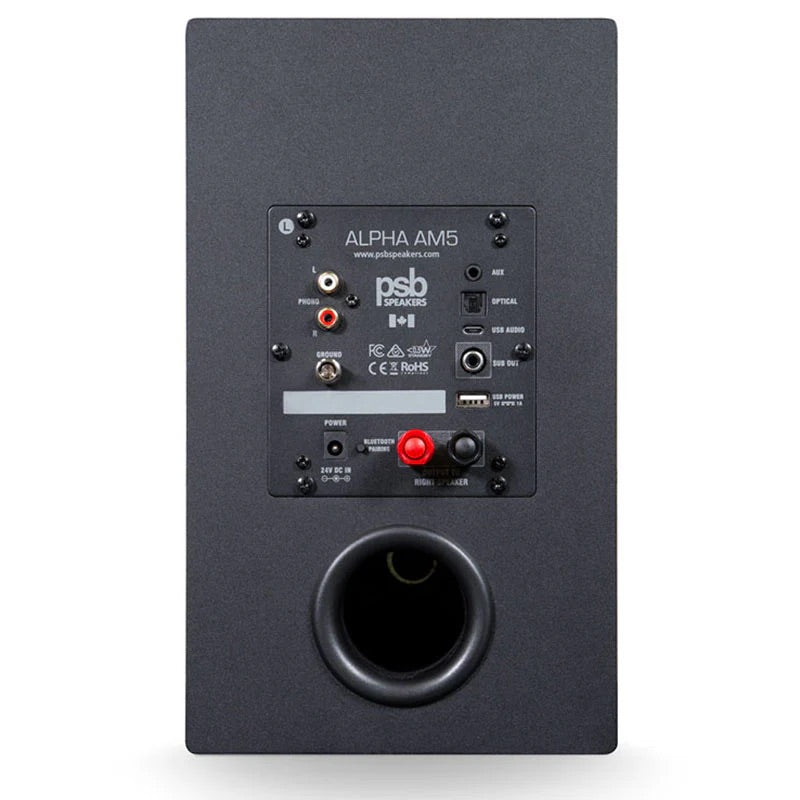

• Qualcomm® aptX™ Bluetooth
• Dedicated RCA Phono Input
• 3.5 mm Analog Input
• Optical Input
• USB DAC
• USB Power Jack
• IR Remote Control
• Subwoofer Output
• Sold as a pair

Specifications:

Frequency Response On Axis @ 0° ±3dB	55Hz - 20KHz
Frequency Response LF Cutoff -10dB	36Hz
Amplifier Power	50 watts x2 rms
Tweeter	3/4" (19mm), Aluminum Dome with Ferrofluid Neodymium Magnet
Woofer	5.25" (133mm) Cone,Rubber Surround, Steel Basket
Analog	3.5mm, Phono MM
Digital	Optical, USB
Wireless	aptX™ Bluetooth
Design Type	Bass Reflex
Cabinet	MDF
Cabinet Sleeve	Vinyl
Baffle Front	MDF
Grille	Perforated Metal

Dimensions and weight
Net Dimensions	170 x290 x240mm
Net Weight (pair)	9.75kg
Shipping Dimensions	467 x340 x381mm
Shipping weight (pair)	10.71kg
