PSB Alpha P5

Bookshelf Speaker

Unleash studio-quality sound at home

Experience the Alpha P5: a bookshelf speaker that transforms your space with impactful stereo sound. Its dynamic bass fills the room, creating an immersive atmosphere. Crisp highs and detailed mids bring your music to life. It balances liveliness and transparency, making it perfect for every genre.

Room-shaking bass

The Alpha P5 delivers an even more robust and controlled bass than the Alpha P3 Bookshelf Speaker , thanks to a custom-designed 5.25" woofer and smart engineering. The woofer, crafted from textured polypropylene with a rubber surround and dual-layer voice coil, minimizes distortion and provides deep, impactful bass. Combined with a rear-firing port tube, the P5's bass response is extended to size-defying levels while maintaining precision and tightness for an immersive listening experience.

Detailed sound with amazing accuracy

The P5 boasts a 0.75" black anodized aluminum dome tweeter with ferrofluid cooling and a neodymium magnet. In essence, its advanced design and features allow you to hear a broader range of high-pitched sounds with greater clarity, reduced distortion, and improved overall sound quality compared to speakers that lack these enhancements. Lose yourself in your listening experience with vibrant, lifelike sound.

Key Features:

¾” Black anodized aluminium dome tweeter with front waveguide
5.25” Textured polypropylene woofer with rubber surround
Bass reflex cabinet design with a rear-firing port

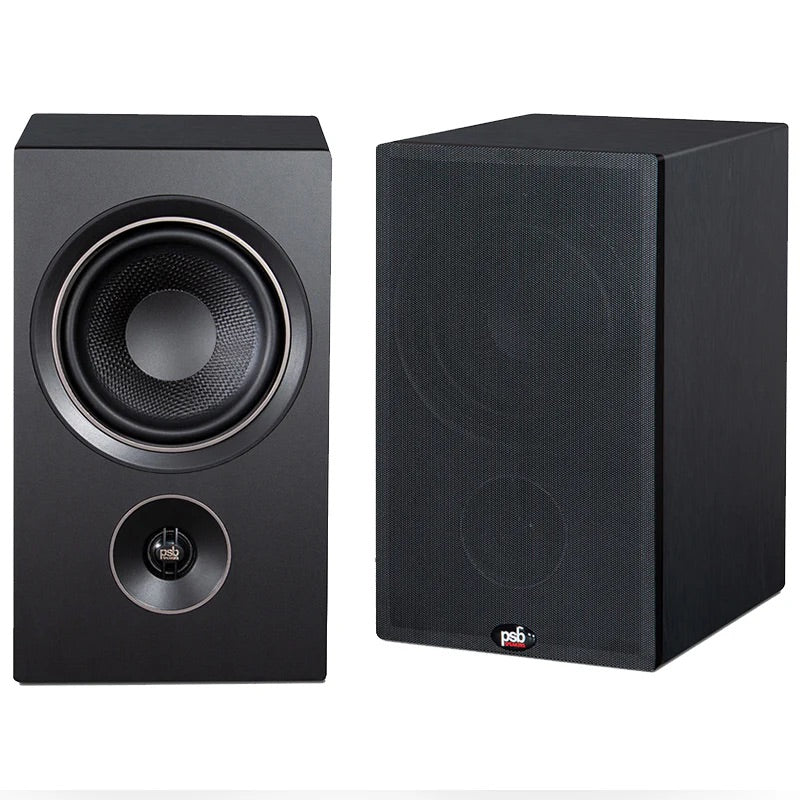

Acoustically-transparent detachable magnetic grilles
Five-way gold-plated binding post speaker terminals

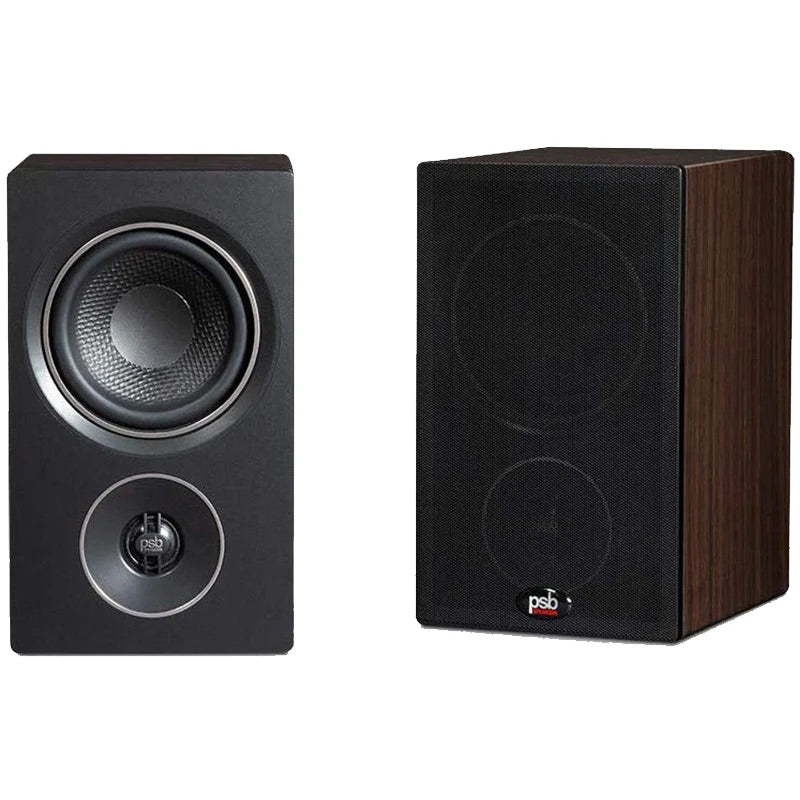

High-quality woodgrain vinyl finish
Sold as a pair

Specifications:

Frequency Response On Axis @ 0° ±3dB	55 - 21,000Hz
Frequency Response On Axis @ 0° ±1 1/2dB	65 - 20,000Hz
Frequency Response Off Axis @ 30° ±1 1/2dB	65 - 10,000Hz
Frequency Response LF Cutoff -10dB	37Hz
Anechoic Chamber	87dB
Listening Room	89dB
Nominal Impedance	8 Ohms
Minimum Impedance	4 Ohms
Recommended Input Power	10 - 90 Watts
Program Input Power	60 Watts
Tweeter (Nominal)	3/4" (19mm)Black Anodized Aluminium Dome with Ferrofluid and Neodymium Magnet
Woofer (Nominal)	5 1/4" (133mm)Textured Polypropylene Conewith Rubber Surround
Crossover	2,500Hz, L4
Internal Volume	0.29 cu ft (8.3L)
Design Type	Tuned Port Bass Reflex,2" (49mm) Rear Port

Dimensions and weight
Dimensions (W x H x D)	170 x290 x240mm
Shipping weight (pair)	10.4kg
