PSB Alpha S10

10" Subwoofer

Affordable High-Performance Bass

PSB's Alpha S10 subwoofer follows the legacy of their value-packed speakers. Compact and budget-friendly, it's a powerhouse for music and home theatres, delivering deep bass. The S10 boasts a 10" woofer with a polypropylene cone in a tuned bass reflex enclosure. With DSP control and a top-notch digital amplifier, it's pure audio magic.

Exceptional Value with Audiophile Heritage

For over 50 years, PSB has crafted speakers acclaimed for their value. The Alpha S10 subwoofer continues this tradition, delivering lifelike sound for both music and movies when paired with PSB speakers or any high-performance alternative.

Advanced Drivers and Amplification Technology

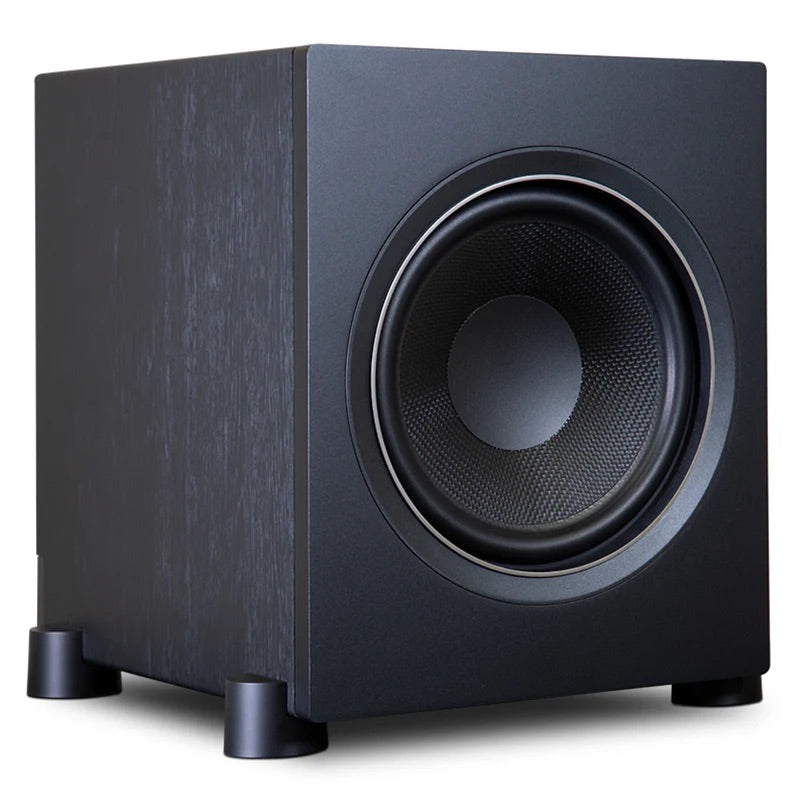

With its custom 10" long-throw driver and optimized bass reflex enclosure, the Alpha S10 delivers outstanding bass. The built-in high-efficiency digital amplifier generates 210W of dynamic power for deep, precise bass and musical fidelity. Taking it up a notch, the S10 employs digital signal processing (DSP) to enable PSB's engineering team to enhance performance, ensuring a flat frequency response and robust bass extension.

Versatile Cabinet Size

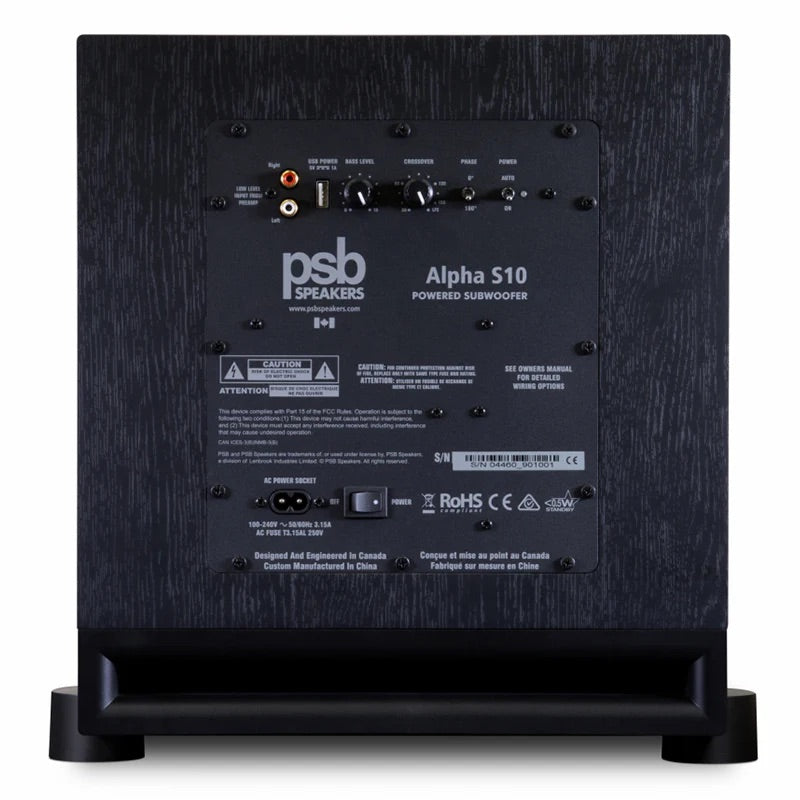

The Alpha S10's rear-ported cabinet is compact and versatile, making it suitable for placement anywhere in your room. The rear panel includes Volume and Crossover Controls, a Phase Switch, Low-Level Input, AutoOn/Standby Switch, Gold-plated RCAs, and a USB Power Jack for the RT100 wireless accessory. It also comes with rubber bumpers and spikes for easy installation on hardwood or carpeted floors.

Key Features:

Bass reflex design with rear port
150 Watt Continuous Power
Compact cabinet volumes with high output
Woofers feature polypropylene cones and rubber surrounds
Design and final voicing engineered by Paul Barton
Rear Mounted Volume Crossover Controls
AutoOn/Standby Switch
Gold-plated RCAs
USB Power Jack for RT100 wireless accessory
Rubber bumpers and spikes

Specifications:

Frequency Response On Axis @ 0° ±3dB	28 - 150Hz
Frequency Response LF Cutoff -10dB	22Hz
Impedance Nominal Input (minimum)	22k Ohms
Input Power (recommended)	15 - 120 Watts
Input Power (program)	60 Watts
Amplifier Power (Continuous)	150 Watts
Amplifier Power (Dynamic, Peak)	210 Watts
Woofer (Nominal)	10" (254mm) Polypropylene Cone, Rubber SurroundVariable 50-150Hz with LFE setting, B2
Crossover	Low Pass Filter
Internal Volume Design Type	1.45 cu ft (41 liter)Bass Reflex

Dimensions and weight
Dimensions (W x H x D)	356 x359 x445mm
Shipping weight	15kg
