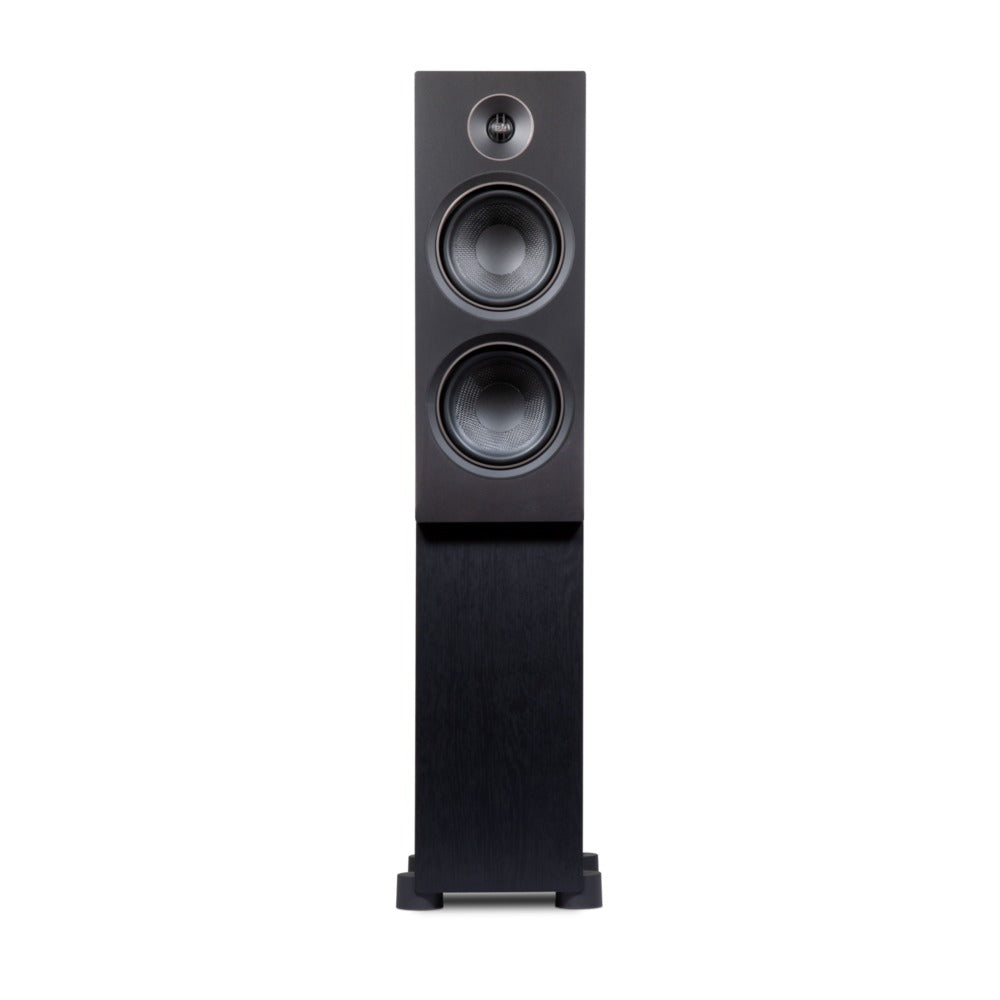

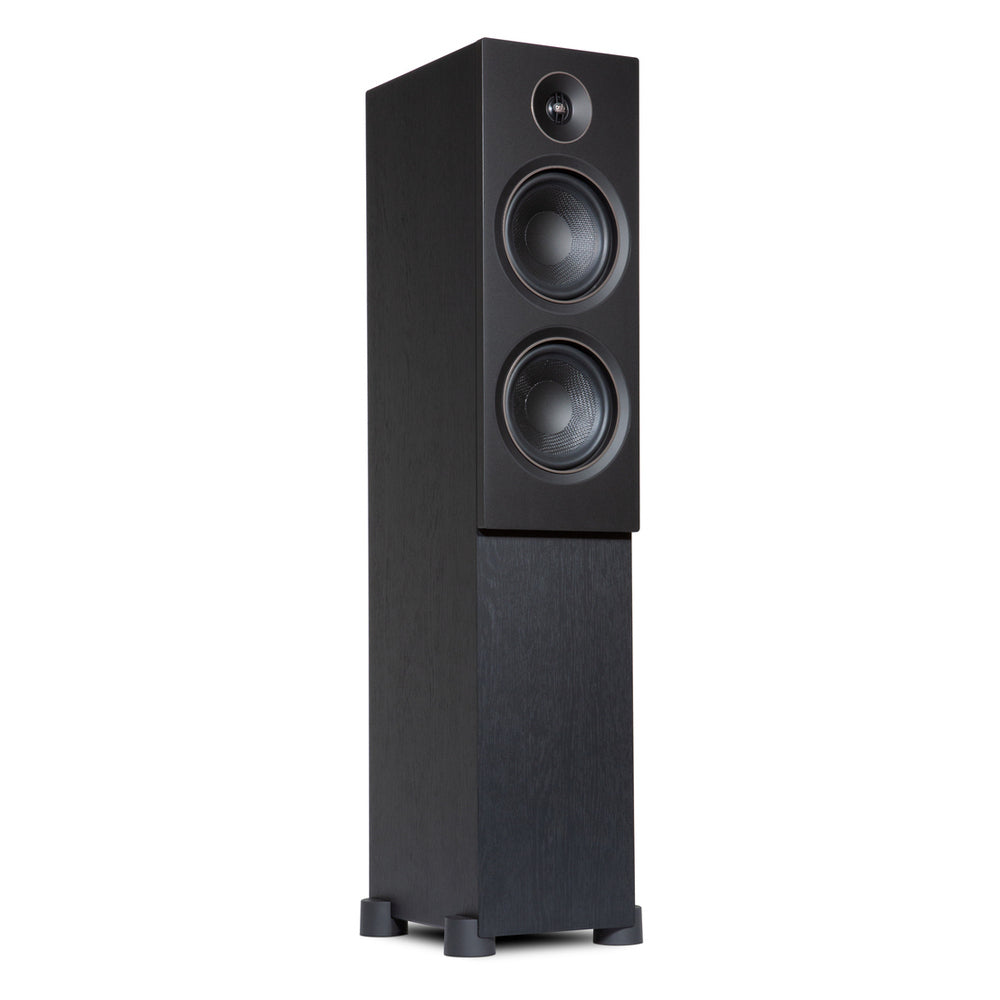

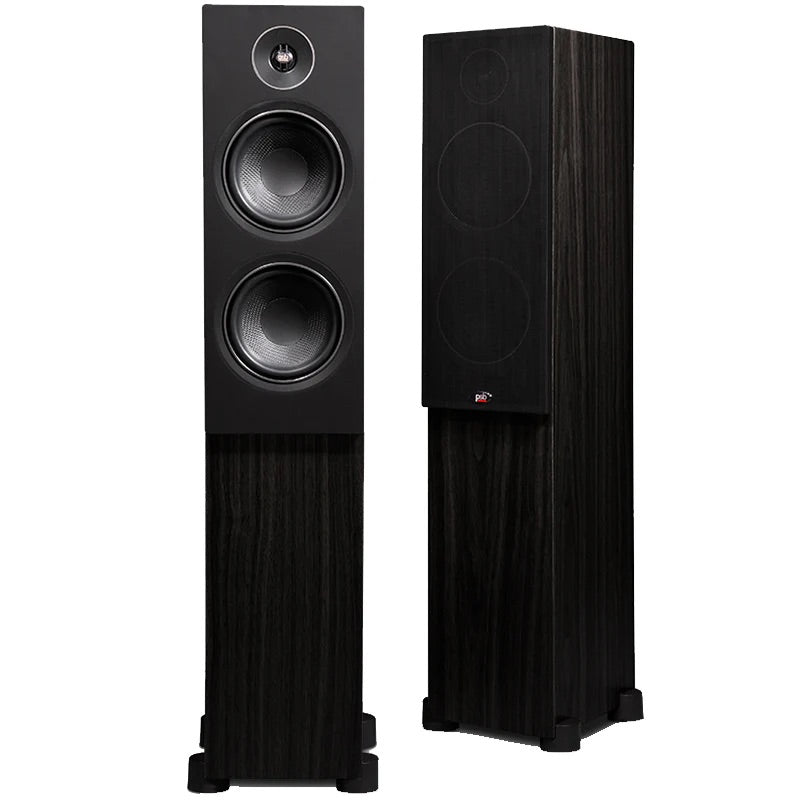

PSB Alpha T20

Tower Speakers

A Symphony of Sound

The Alpha T20 Tower Speaker is the pinnacle of the Alpha Series, delivering a blend of exquisite performance and stylish design. It's designed to fill any room with lush, full-bodied sound. Enjoy an immersive listening journey with smooth transitions, impactful bass and unmatched clarity.

Lifelike acoustics

Delivering consistently organic, natural sound, the Alpha T20 extends its high-frequency response past any of the other speakers in the Alpha Series by using a ¾" black anodized aluminum dome tweeter. It also minimizes distortion, creating a lush soundstage filled with intricate details. With the tweeters' ferrofluid cooling and neodymium magnets, the Alpha T20 maintains consistent performance, preventing overheating and achieving higher sensitivity for better sound quality and efficiency.

Remarkable bass response

Experience exceptional audio performance with the Alpha T20 Tower Speakers. At the peak of the Alpha series, they feature exclusive dual 5 ¼" (133mm) woofers with dual-layer voice coils, ensuring remarkable low-frequency response and efficiency. The specially textured polypropylene cone minimizes distortion and breakup, while precise crossover matching creates a seamless transition between high and low frequencies. The rear-firing port further enhances the bass, delivering rich, extended lows for a truly immersive listening experience.

Key Features:

¾” Black anodized aluminium dome tweeter with front waveguide
5.25” Textured polypropylene woofer with rubber surround
Bass reflex cabinet design with a rear-firing port
Acoustically-transparent detachable magnetic grilles
Dual five-way gold-plated binding post speaker terminals
High-quality woodgrain vinyl finish

Specifications:

Frequency Response On Axis @ 0° ±3dB	36 - 21,000Hz
Frequency Response On Axis @ 0° ±1 1/2dB	54 - 20,000Hz
Frequency Response Off Axis @ 30° ±1 1/2dB	54 - 10,000Hz
Frequency Response LF Cutoff -10dB	28Hz
Anechoic Chamber	88dB
Listening Room	90dB
Nominal Impedance	8 Ohms
Minimum Impedance	6 Ohms
Recommended Input Power	15 - 120 Watts
Program Input Power	60 Watts
Tweeter (Nominal)	3/4" (19mm)Black Anodized Aluminium Dome with Ferrofluid and Neodymium Magnet
Woofer (Nominal)	2 x5 1/4" (133mm)Textured Polypropylene Conewith Rubber Surround
Crossover	2,500Hz, L4
Internal Volume	0.95 cu ft (27.0L)
Design Type	Tuned Port Bass Reflex,2 1/2" (63.5mm) Rear Port

Dimensions and weight
Dimensions (W x H x D)	170 x825 x243mm
Shipping weight (pair)	28.5kg
