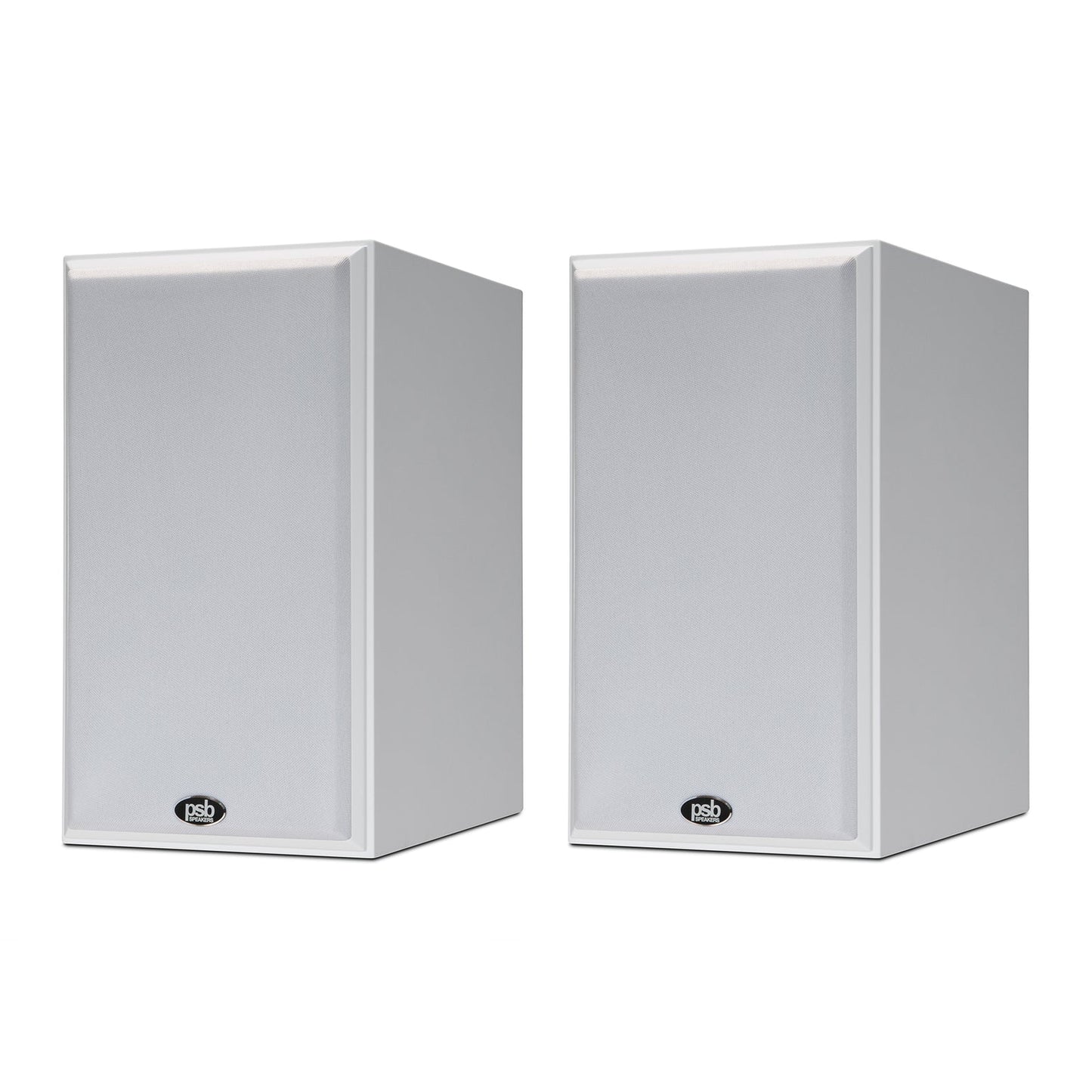

PSB Imagine B50

Bookshelf Speakers

Superior Sound at Great Value

Experience the Imagine B50 bookshelf speakers – a perfect blend of premium sound and elegance, all tucked into a compact design. With a 2-way bass reflex setup and rear-facing slot port, these versatile loudspeakers are more than capable of filling any room with PSB’s signature true-to-nature sound and size-defying bass.

Precision Sound, Size-defying Bass

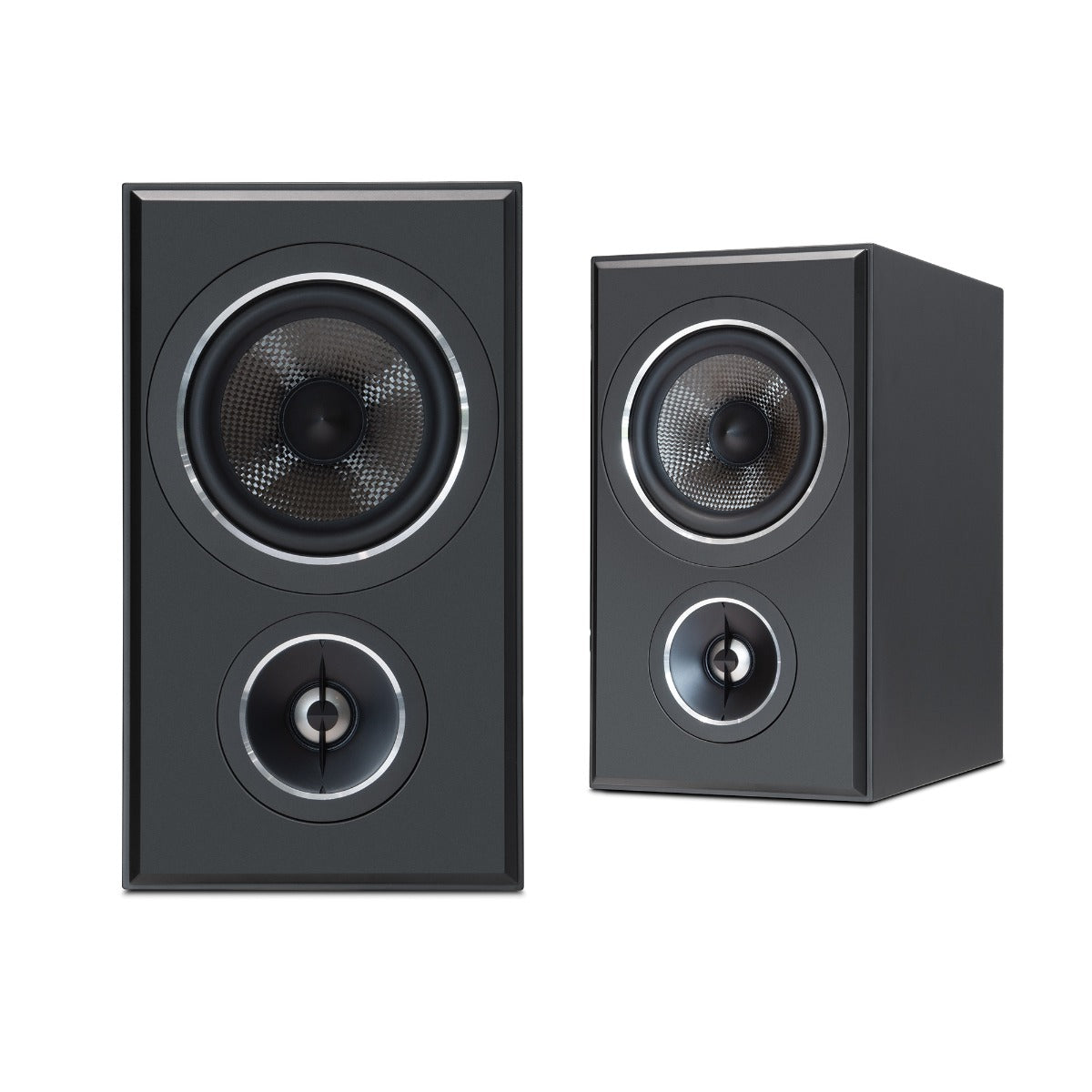

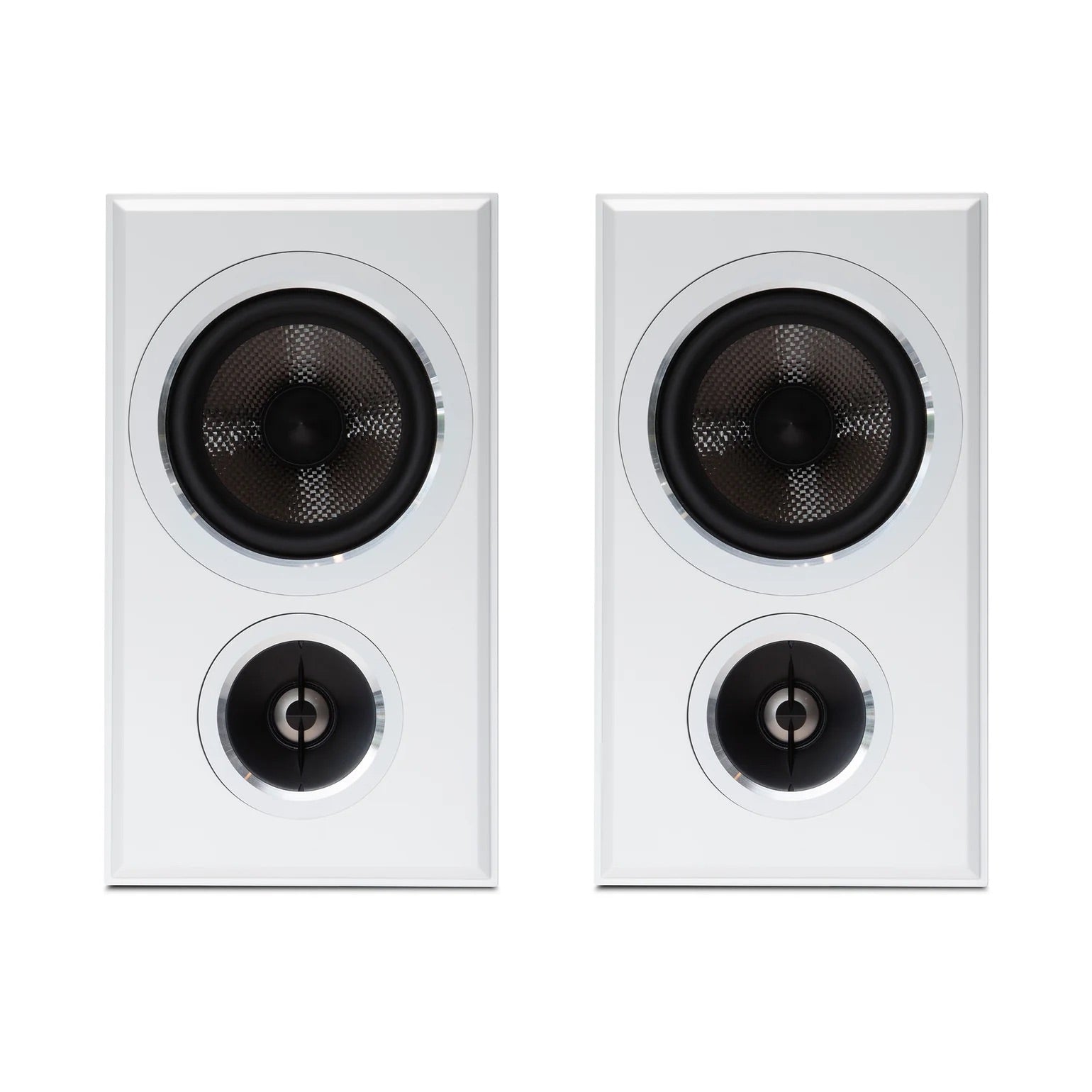

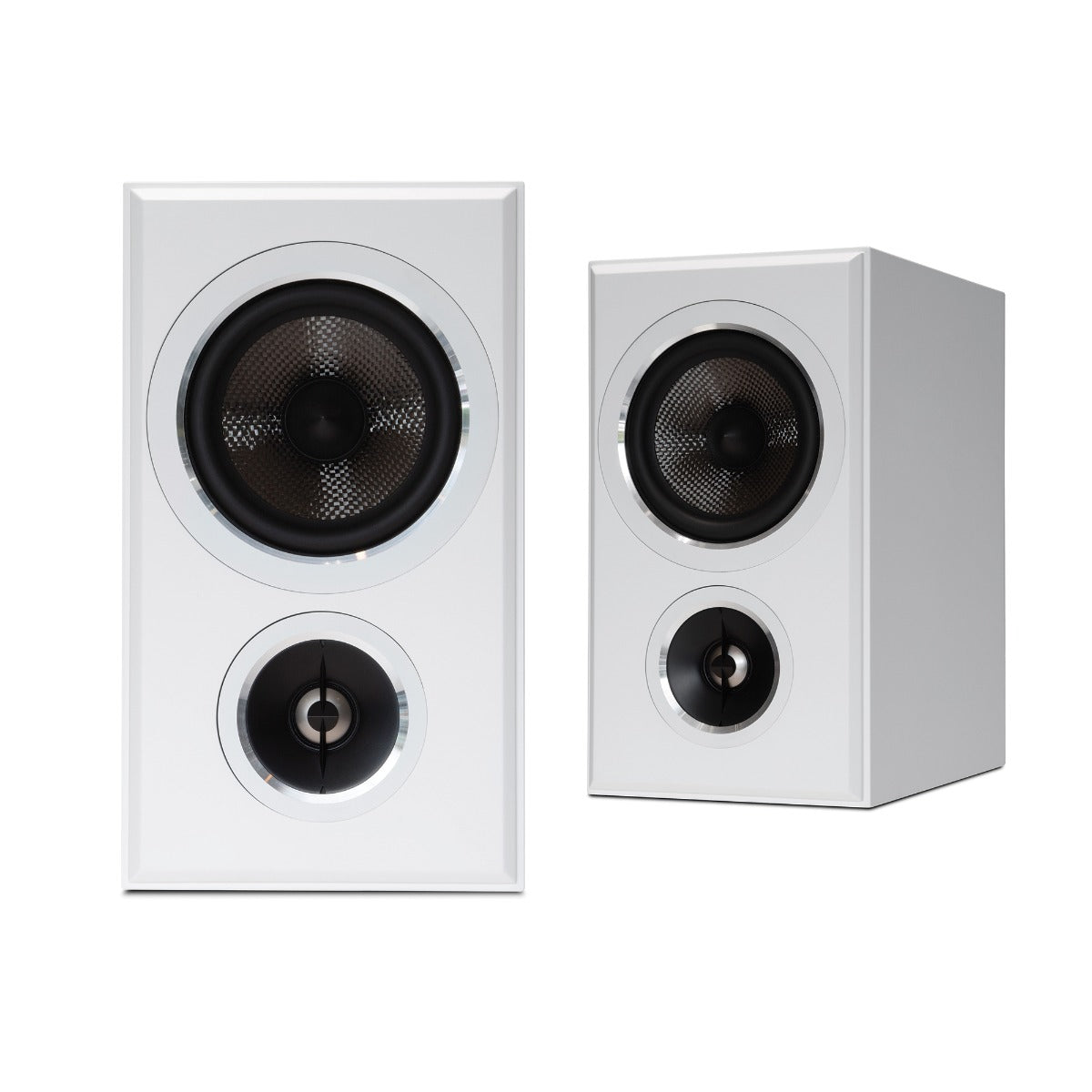

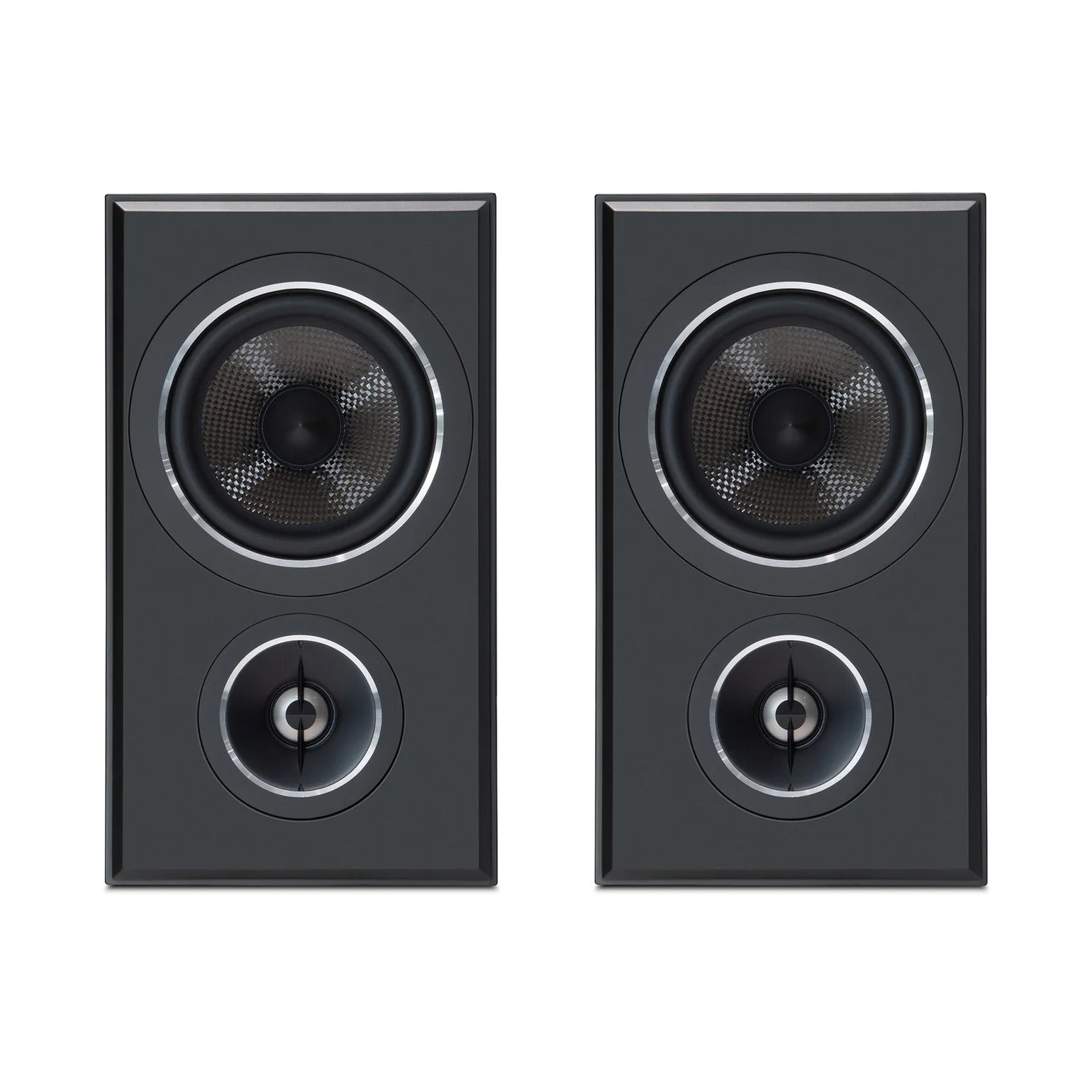

The Imagine B50 bookshelf speakers deliver room-filling true-to-nature sound, underscored by an unexpectedly impressive bass performance. Featuring a 1” tweeter and a 5.25” woofer meticulously housed within a compact architectural footprint, the B50 also unveils a sophisticated 2-way bass-reflex arrangement complemented by a rear-facing slot port. The B50s can be seamlessly integrated into any multi-channel or surround sound setup by placing them on the AST-25 floor stands.

Placement Flexibility

Enjoy crisp, detailed sound wherever you place the B50 bookshelf speakers. Their performance-focused components offer placement flexibility, wider bandwidth, higher output, enhanced efficiency, superior power handling, reduced distortion, and a smooth tonal balance. Accuracy is maintained at all sound levels, with clarity even at lower volumes, ensuring every note resonates.

Specifications:

Frequency Response On Axis @ 0° ±3dB	45 - 23,000Hz
Frequency Response On Axis @ 0° ±1 1/2dB	60 - 20,000Hz
Frequency Response Off Axis @ 30° ±1 1/2dB	60 - 10,000Hz
Frequency Response LF Cutoff -10dB	36Hz
Anechoic Chamber	85dB
Listening Room	87dB
Nominal Impedance	8 Ohms
Minimum Impedance	4 Ohms
Recommended Input Power	20 - 150 Watts
Program Input Power	150 Watts
Tweeter (Nominal)	1" (25mm) Titanium Dome with Ferrofluid Neodymium Magnet
Woofer (Nominal)	5 1/4" (133mm)Woven Carbon Fibre Cone Rubber Surround
Crossover	2,200Hz, LR4
Internal Volume	N/A

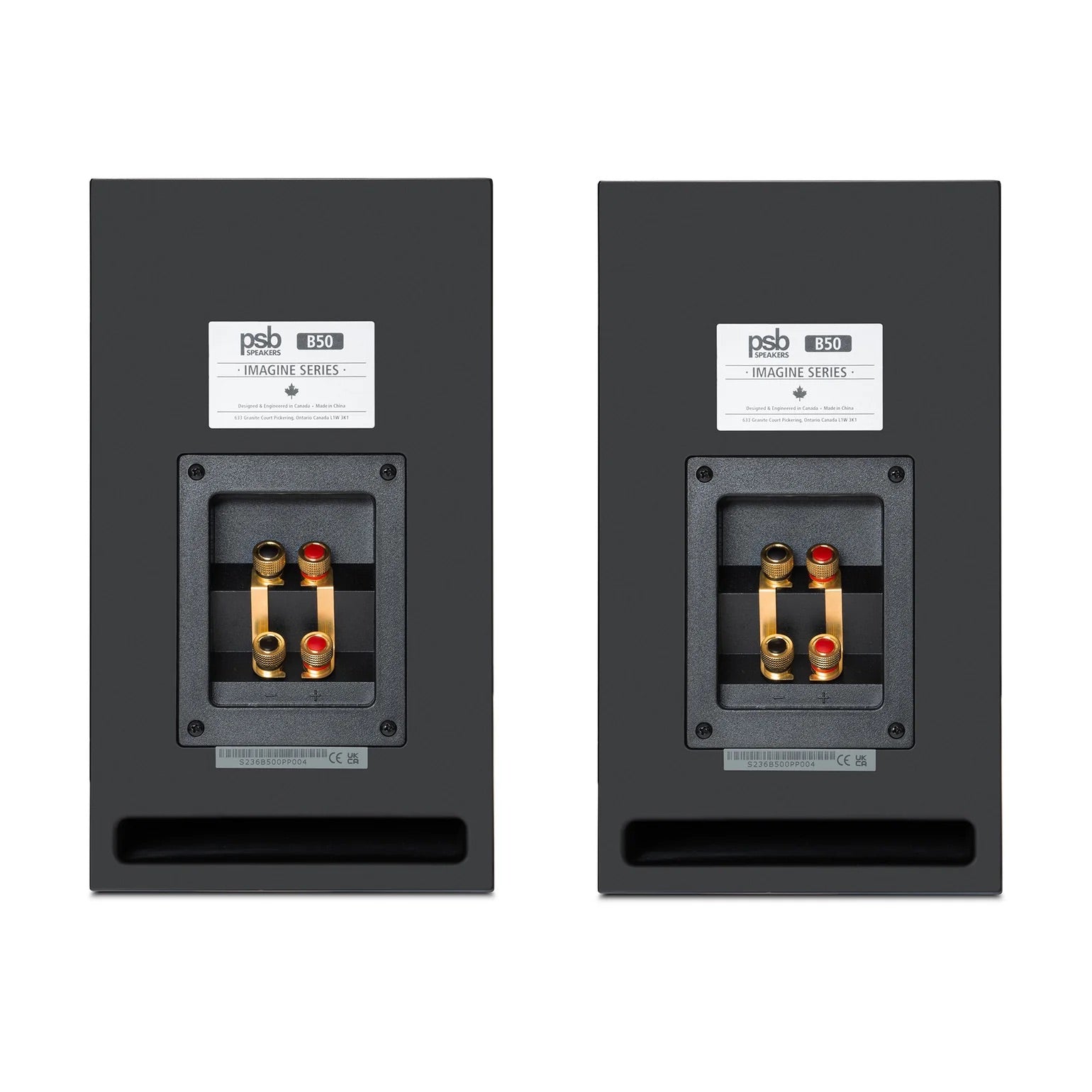

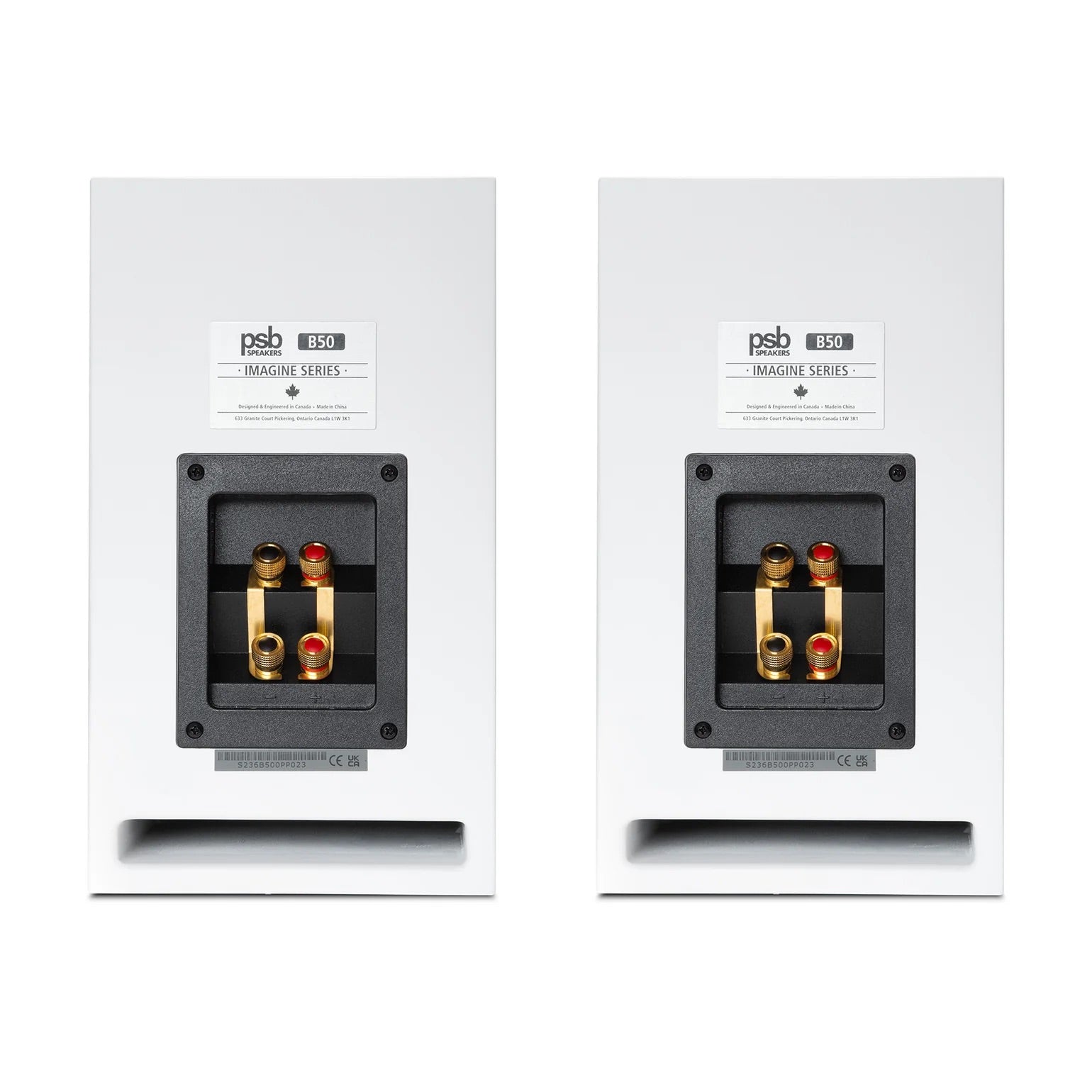

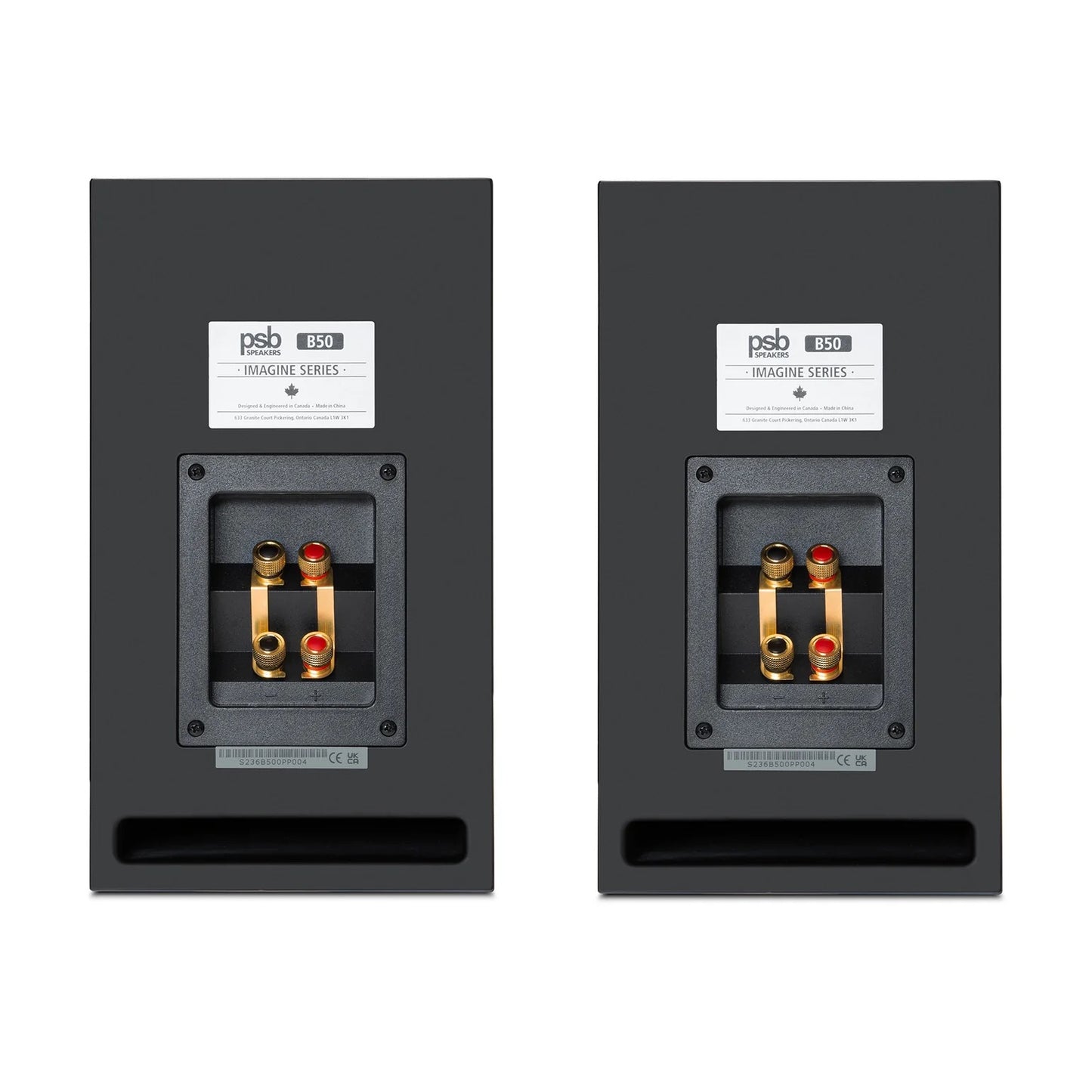

Design Type	2-wayBass Reflex,Rear Slot Port

Dimensions and weight
Dimensions (W x H x D)	171 x300 x251mm
Shipping weight (pair)	11.9kg
